Switches / Pushbutton Switches / P5-313322
Datasheets

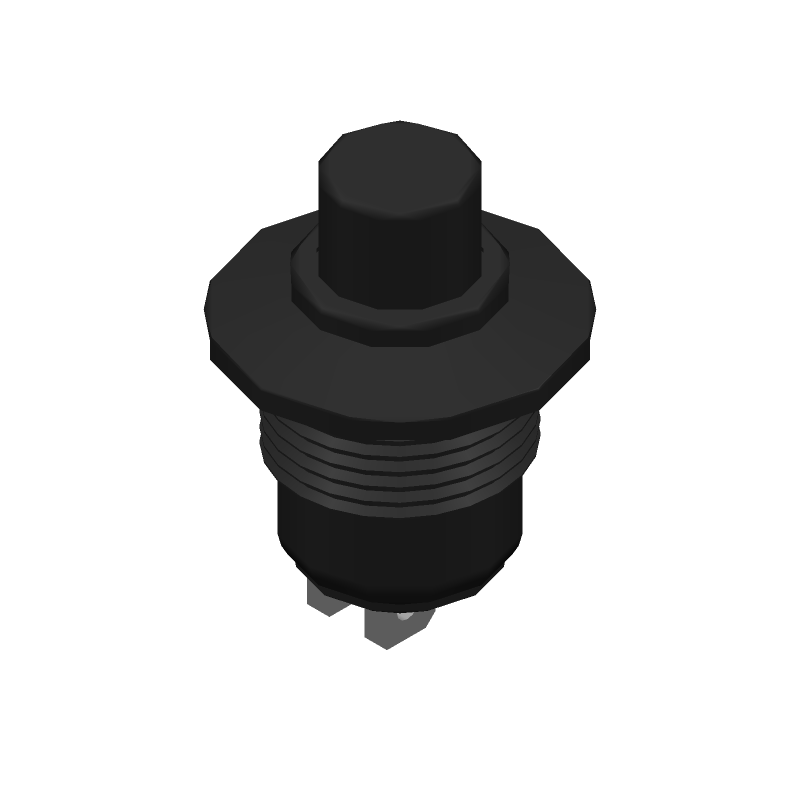

P5-313322 by: OTTO Engineering Inc

Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded

Part Details for P5-313322 by OTTO Engineering Inc

Results Overview of P5-313322 by OTTO Engineering Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

P5-313322 Information

P5-313322 by OTTO Engineering Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for P5-313322

Part # Distributor Description Stock Price Buy
DISTI # 999-P5-313322
Mouser Electronics Pushbutton Switches Bezel Threaded 10A SPDT Silver Cmrcl RoHS: Compliant 2
  • 1 $34.9300
  • 10 $29.0200
  • 25 $27.2300
  • 50 $25.0200
  • 100 $23.1300
  • 250 $22.1600
$22.1600 / $34.9300 Buy Now
Onlinecomponents.com Sealed, Mil Grade, Alternate Action, Pushbutton Switch RoHS: Compliant 0
  • 1 $30.0000
  • 5 $28.0600
  • 25 $25.9700
  • 50 $23.3000
  • 100 $20.8600
  • 250 $20.3100
  • 500 $18.6100
$18.6100 / $30.0000 Buy Now
DISTI # 000000000000442389
Sager SEALED, MIL GRADE, ALTERNATE ACTION, PUSHBUTTON SWITCH Min Qty: 7 0
  • 7 $30.0000
  • 14 $26.7700
  • 61 $23.3000
  • 131 $21.1400
  • 329 $20.5700
  • 707 $18.3600
$18.3600 / $30.0000 Buy Now

Part Details for P5-313322

P5-313322 Part Data Attributes

Parametric Data
P5-313322 OTTO Engineering Inc
Buy Now Datasheet
Compare Parts:
P5-313322 OTTO Engineering Inc Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer OTTO ENGINEERING INC
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.50.90.35
Samacsys Manufacturer OTTO
Actuator Length 0.437 inch
Actuator Material NYLON
Actuator Travel 4.572 mm
Actuator Type PUSHBUTTON
Additional Feature BLACK, WATERPRF BLK BEZ
Body Height 22.26 mm
Body Length or Diameter 22.23 mm
Bushing Length 0.313 inch
Bushing Type 5/8-24
Center Contact Plating SILVER
Contact (AC) Max Rating I Load 5A@115VAC
Contact (AC) Max Rating M Load 3A@115VAC
Contact (AC) Max Rating R Load 10A@115VAC
Contact Current(AC)-Max 10 A
Contact Current(DC)-Max 10 A
Contact (DC) Max Rating R Load 10A@28VDC
Contact Function ON-ON
Contact Timing SNAP ACTION
Contact Voltage(AC)-Max 115 V
Contact Voltage(DC)-Max 28 V
Dielectric Withstand Volts 1050VAC V
Electrical Life 25000 Cycle(s)
End Contact Plating SILVER
Housing Material ALUMINUM ALLOY
Illumination NON-ILLUMINATED
Mounting Feature PANEL MOUNT-THREADED
Operating Force-Max 17.79 N
Sealing EPOXY TERMINAL SEALED; IP68
Surface Mount NO
Switch Action ALTERNATE
Switch Function SPDT
Switch Type PUSHBUTTON SWITCH
Terminal Length 0.156 inch
Termination Type SOLDER

Alternate Parts for P5-313322

This table gives cross-reference parts and alternative options found for P5-313322. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P5-313322, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P5-614134 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded P5-313322 vs P5-614134
P5-413238 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded P5-313322 vs P5-413238
P5-314128 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded P5-313322 vs P5-314128
P5-313215 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded P5-313322 vs P5-313215
P5-313138 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded P5-313322 vs P5-313138
P5-113112 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount P5-313322 vs P5-113112
P5-113223 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount P5-313322 vs P5-113223
P5-114136 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount P5-313322 vs P5-114136
P5-314336 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded P5-313322 vs P5-314336
P5-417219 OTTO Engineering Inc Check for Price Pushbutton Switch, SPDT, On-on, Alternate, 10A, 28VDC, Solder Terminal, Panel Mount-threaded P5-313322 vs P5-417219
