Diodes / Transient Suppressors / P4SMAJ7.5CA
Datasheets
P4SMAJ7.5CA by:

Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN

Part Details for P4SMAJ7.5CA by PanJit Semiconductor

Results Overview of P4SMAJ7.5CA by PanJit Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

P4SMAJ7.5CA Information

P4SMAJ7.5CA by PanJit Semiconductor is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for P4SMAJ7.5CA

P4SMAJ7.5CA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

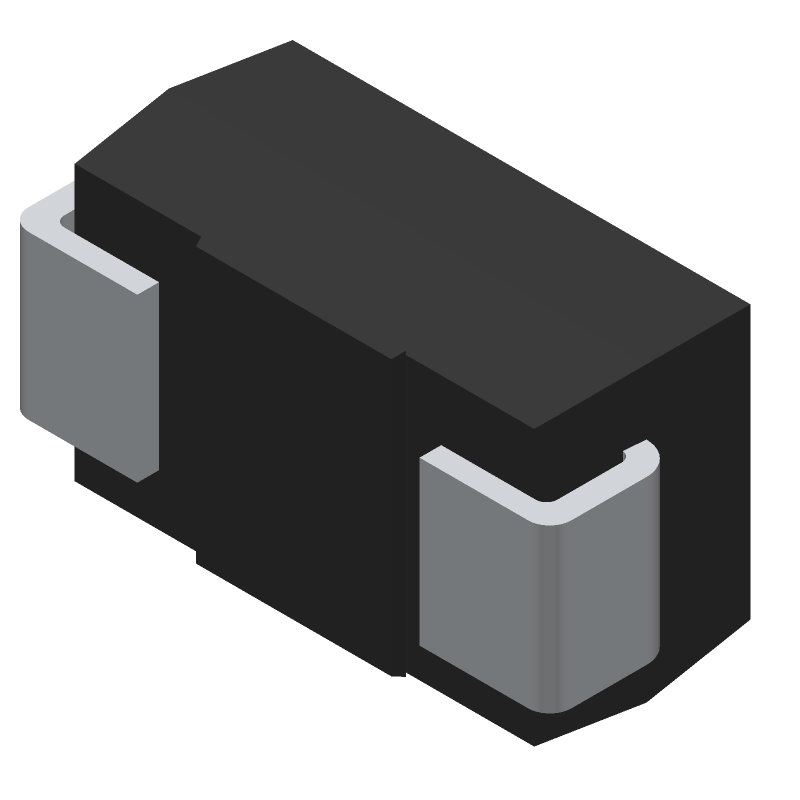

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

P4SMAJ7.5CA Part Data Attributes

Parametric Data
P4SMAJ7.5CA PanJit Semiconductor
Buy Now Datasheet
Compare Parts:
P4SMAJ7.5CA PanJit Semiconductor Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANJIT INTERNATIONAL INC
Part Package Code DO-214AC
Package Description ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer PANJIT
Breakdown Voltage-Max 9.58 V
Breakdown Voltage-Min 8.33 V
Breakdown Voltage-Nom 8.96 V
Clamping Voltage-Max 12.9 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Non-rep Peak Rev Power Dis-Max 400 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity BIDIRECTIONAL
Rep Pk Reverse Voltage-Max 7.5 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish TIN
Terminal Form C BEND
Terminal Position DUAL

Alternate Parts for P4SMAJ7.5CA

This table gives cross-reference parts and alternative options found for P4SMAJ7.5CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P4SMAJ7.5CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SMAJ7.5C WEITRON INTERNATIONAL CO., LTD. Check for Price Transient Suppressor P4SMAJ7.5CA vs SMAJ7.5C
P4SMAJ7.5CA-AU_R1_100A1 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN P4SMAJ7.5CA vs P4SMAJ7.5CA-AU_R1_100A1
P4SMAJ7.5CT/R7 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN P4SMAJ7.5CA vs P4SMAJ7.5CT/R7
P4SMAJ7.5CA-AU_R1_000A1 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN P4SMAJ7.5CA vs P4SMAJ7.5CA-AU_R1_000A1
P4SMAJ7.5C PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN P4SMAJ7.5CA vs P4SMAJ7.5C
Part Number Manufacturer Composite Price Description Compare
P4SMAJ7.5CA_R1_00001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN P4SMAJ7.5CA vs P4SMAJ7.5CA_R1_00001
P4SMAJ7.5C_R1_10001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode P4SMAJ7.5CA vs P4SMAJ7.5C_R1_10001
SMAJ7.5CA Surge Components Inc Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN P4SMAJ7.5CA vs SMAJ7.5CA
P4SMAJ7.5CA_R2_10001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode P4SMAJ7.5CA vs P4SMAJ7.5CA_R2_10001
P4SMAJ7.5CA-F World Products Inc Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC PACKAGE-2 P4SMAJ7.5CA vs P4SMAJ7.5CA-F
P4SMAJ7.5C_R2_10001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode P4SMAJ7.5CA vs P4SMAJ7.5C_R2_10001
P4SMAJ7.5CT/R13 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN P4SMAJ7.5CA vs P4SMAJ7.5CT/R13
SMAJ7.5CA Secos Corporation Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, SMA, 2 PIN P4SMAJ7.5CA vs SMAJ7.5CA
P4SMAJ7.5CA_R1_10001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode P4SMAJ7.5CA vs P4SMAJ7.5CA_R1_10001
P4SMAJ7.5CA-AU_R2_000A1 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 7.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMA, 2 PIN P4SMAJ7.5CA vs P4SMAJ7.5CA-AU_R2_000A1
