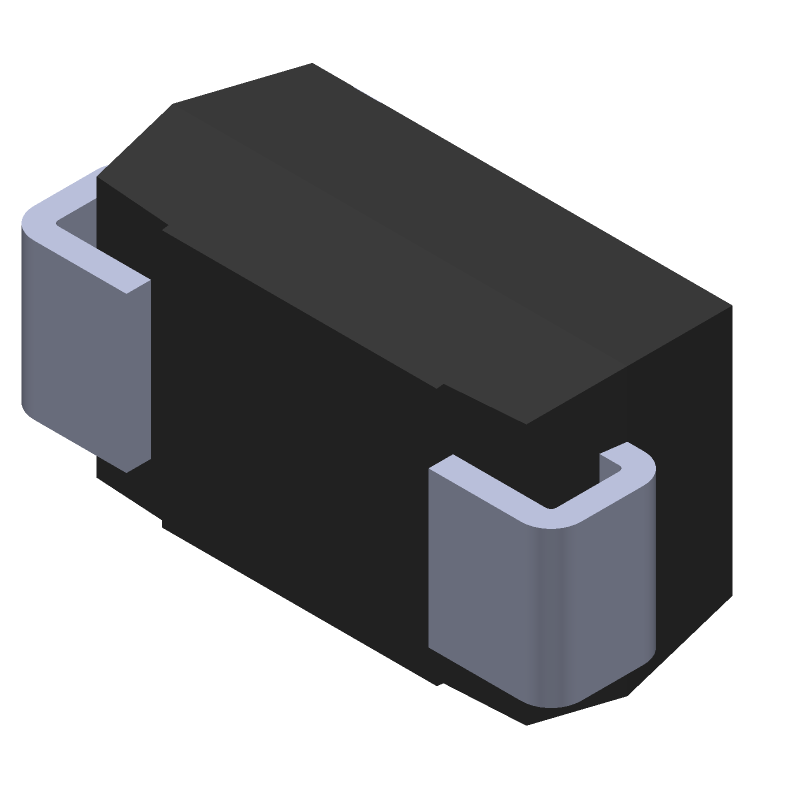

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P4SMA110A-E3/61 by Vishay Intertechnologies
Results Overview of P4SMA110A-E3/61 by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
P4SMA110A-E3/61 Information
P4SMA110A-E3/61 by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for P4SMA110A-E3/61
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12M0443
|
Newark | Transient Suppressor Diode, single, unidirectional,94V V(Rwm),do-214Ac/Sma |Vishay P4SMA110A-E3/61 RoHS: Not Compliant Min Qty: 3600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1160 / $0.1810 | Buy Now |
|
DISTI #
P4SMA110A-E3/61
|
Avnet Americas | Diode TVS Single Uni-Dir 94V 400W 2-Pin SMA T/R - Tape and Reel (Alt: P4SMA110A-E3/61) RoHS: Compliant Min Qty: 3600 Package Multiple: 1800 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.0624 / $0.0637 | Buy Now |
|
DISTI #
625-P4SMA110A-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 400W 110V Unidirect RoHS: Compliant | 284 |
|
$0.0650 / $0.3200 | Buy Now |
|
DISTI #
P4SMA110A-E3/61
|
TTI | ESD Protection Diodes / TVS Diodes 400W 110V Unidirect pbFree: Pb-Free Min Qty: 3600 Package Multiple: 1800 Container: Reel | Americas - 0 |
|
$0.0650 / $0.0710 | Buy Now |
|
DISTI #
P4SMA110A-E3/61
|
EBV Elektronik | Diode TVS Single UniDir 94V 400W 2Pin SMA TR (Alt: P4SMA110A-E3/61) RoHS: Compliant Min Qty: 1800 Package Multiple: 1800 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for P4SMA110A-E3/61
P4SMA110A-E3/61 CAD Models
P4SMA110A-E3/61 Part Data Attributes
|
|
P4SMA110A-E3/61
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
P4SMA110A-E3/61
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 400W, 94V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 116 V | |
| Breakdown Voltage-Min | 105 V | |
| Breakdown Voltage-Nom | 110.5 V | |
| Clamping Voltage-Max | 152 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 400 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 3.3 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 94 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for P4SMA110A-E3/61
This table gives cross-reference parts and alternative options found for P4SMA110A-E3/61. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P4SMA110A-E3/61, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P4SMA110A-M3/5A | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 300W, 94V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, | P4SMA110A-E3/61 vs P4SMA110A-M3/5A |
P4SMA110A-E3/61 Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for P4SMA110A-E3/61 can be found in the Vishay Intertechnologies' application note 'Surface Mounting Instructions for Diodes' (document number 91000).
-
Vishay recommends following the standard soldering and assembly procedures for surface-mount devices, including using a soldering iron with a temperature of 250°C to 260°C, and a soldering time of 2 to 3 seconds. Additionally, the device should be handled by the body, not the leads, to prevent damage.
-
The maximum allowable voltage derating for P4SMA110A-E3/61 is 10% of the rated voltage, as per Vishay's application note 'Voltage Derating of Diodes' (document number 91001).
-
Yes, P4SMA110A-E3/61 is suitable for high-reliability applications, as it is built with high-quality materials and manufacturing processes, and is qualified to various industry standards, including AEC-Q101 and MIL-PRF-19500.
-
The correct polarity of the P4SMA110A-E3/61 can be determined by looking for the cathode band on the device, which is marked with a band or a dot. The cathode is the negative leg of the diode.
