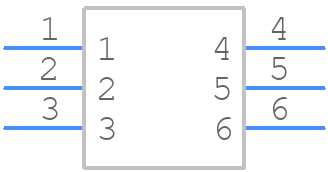

Part Symbol
-

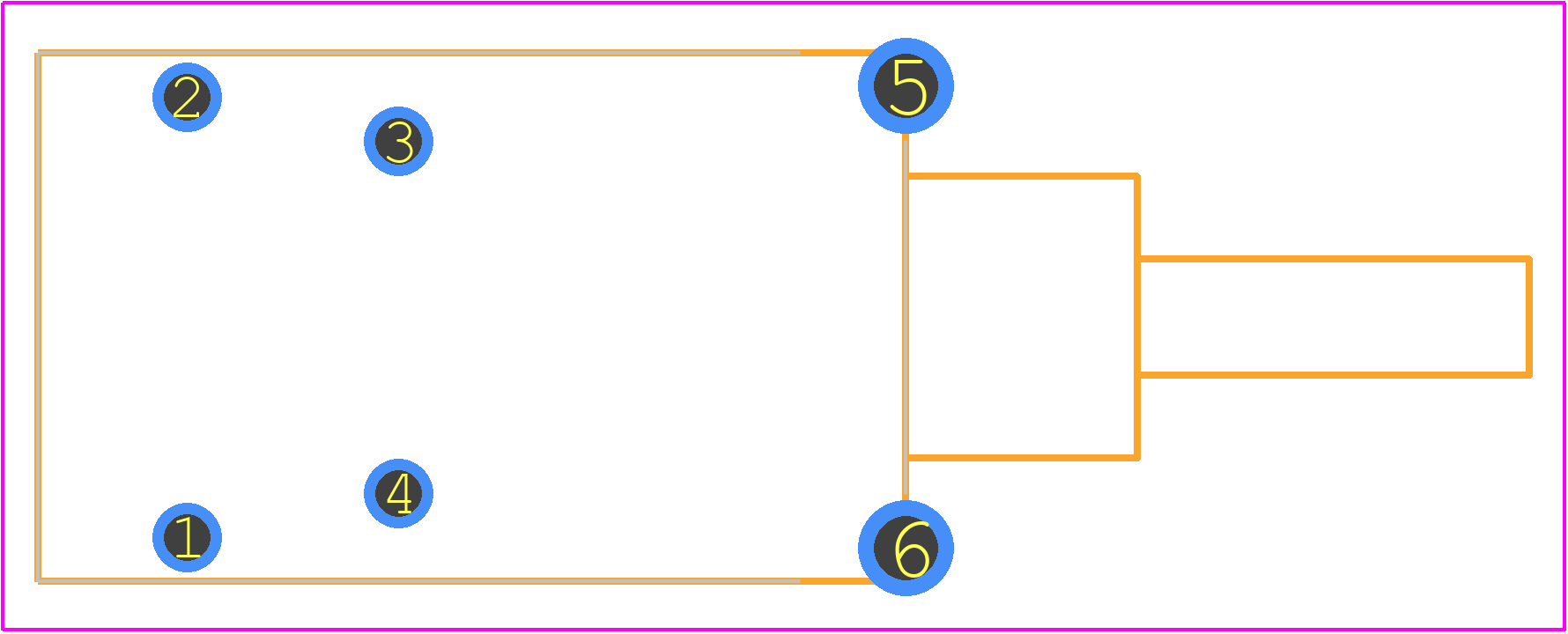

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P227EE1CXC by E-Switch Inc
Results Overview of P227EE1CXC by E-Switch Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
P227EE1CXC Information
P227EE1CXC by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for P227EE1CXC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N8674
|
Newark | Switch, Pushbutton, Dpst, 7A, 125Vac, Product Range:P227 Series, Panel Cutout Diameter:-, Contact Configuration:Dpst, Switch Operation:Off-On, Pushbutton Actuator Style:Plunger For Cap, Actuator/Cap Colour:Blue, Ip Rating:- Rohs Compliant: Yes |E-Switch P227EE1CXC RoHS: Compliant Min Qty: 1280 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now |
Part Details for P227EE1CXC
P227EE1CXC CAD Models
P227EE1CXC Part Data Attributes
|
|
P227EE1CXC
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
P227EE1CXC
E-Switch Inc
Pushbutton Switch, DPST, Momentary, 7A, 125VDC, Solder Terminal, Through Hole-right Angle,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.35 | |
| Samacsys Manufacturer | E-Switch | |
| Body Breadth | 15 mm | |
| Body Height | 12.3 mm | |
| Body Length or Diameter | 30.8 mm | |
| Contact (AC) Max Rating R Load | 7A@125VAC | |
| Contact Current(AC)-Max | 7 A | |
| Contact Current(DC)-Max | 7 A | |
| Contact (DC) Max Rating R Load | 7A@125VDC | |
| Contact Voltage(AC)-Max | 125 V | |
| Contact Voltage(DC)-Max | 125 V | |
| Illumination | NON-ILLUMINATED | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Force-Max | 6.86 N | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | DPST | |
| Switch Type | PUSHBUTTON SWITCH | |
| Termination Type | SOLDER |
P227EE1CXC Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.0 N·m (4.4-8.8 in-lbs).
-
Yes, the P227EE1CXC is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
-
Yes, the P227EE1CXC is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The operating temperature range for the P227EE1CXC is -40°C to 85°C (-40°F to 185°F).
-
No, the P227EE1CXC should not be washed or cleaned with solvents, as this may damage the switch's electrical contacts or compromise its sealing. Instead, use a soft, dry brush to remove any debris or contaminants.
