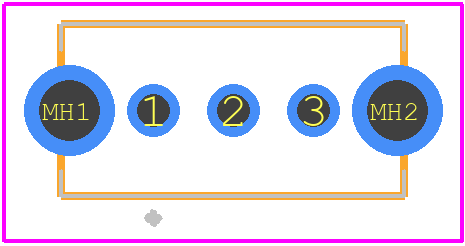

Footprint
-

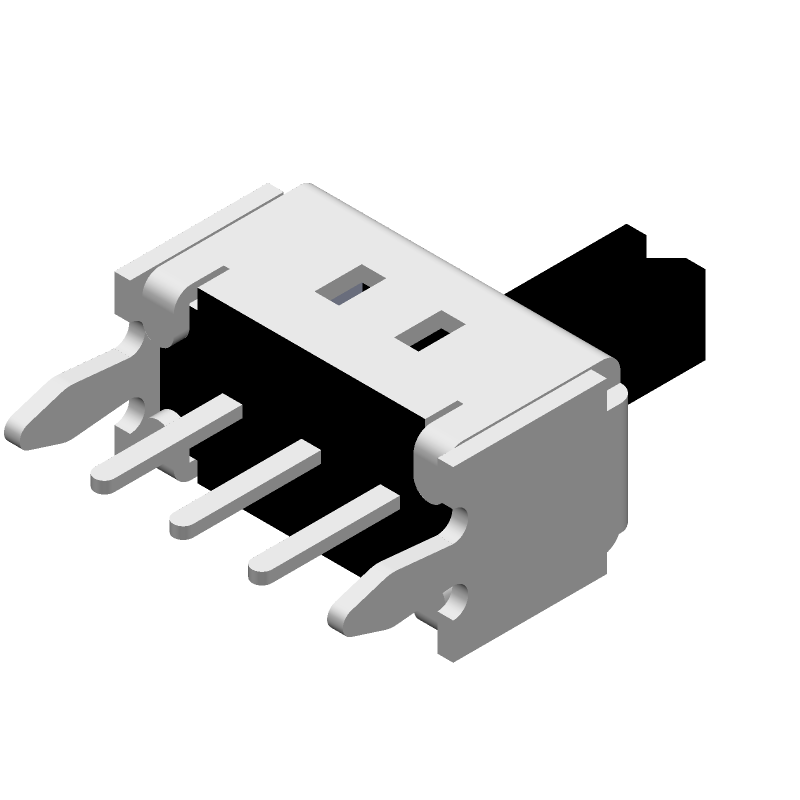

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OS102011MS2QN1C by C&K
Results Overview of OS102011MS2QN1C by C&K
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
OS102011MS2QN1C Information
OS102011MS2QN1C by C&K is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for OS102011MS2QN1C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AH4512
|
Newark | Slide Switch, Spdt, 0.1A, 12Vdc, Tht, Contact Configuration:Spdt, Switch Operation:On-On, Switch Mounting:Through Hole, Product Range:Os Series, Contact Current Max:100Ma, Contact Voltage Ac Max:-, Contact Voltage Dc Max:12V Rohs Compliant: Yes |C&k Components OS102011MS2QN1C RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1190 |
|
$0.2250 | Buy Now |
|
DISTI #
79X5768
|
Newark | Slide Switch, Spdt, Vertical, Through Hole, 100 Ma Rohs Compliant: Yes |C&k Components OS102011MS2QN1C RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 984 |
|
$0.4520 / $0.6960 | Buy Now |
|
DISTI #
CKN12284-ND
|
DigiKey | SWITCH SLIDE SPDT 0.1A 12V Min Qty: 1 Lead time: 11 Weeks Container: Bulk |
8119 In Stock |
|
$0.4319 / $0.7300 | Buy Now |
|
DISTI #
611-OS102011MS2QN1C
|
Mouser Electronics | Slide Switches .1A @ 12VDC ON-ON RoHS: Compliant | 8817 |
|
$0.3850 / $0.7300 | Buy Now |
|
|
Quest Components | 1699 |
|
$0.4624 / $1.1560 | Buy Now | |
|
|
Quest Components | 8 |
|
$0.7308 / $0.9135 | Buy Now | |
|
DISTI #
OS102011MS2QN1C
|
TTI | Slide Switches .1A @ 12VDC ON-ON RoHS: Compliant Min Qty: 1200 Package Multiple: 300 Container: Bulk | Americas - 0 |
|
$0.4100 / $0.4640 | Buy Now |
|
DISTI #
OS102011MS2QN1C
|
TME | Switch: slide, Pos: 2, SPDT, 0.1A/12VDC, ON-ON, THT, -30÷70°C, OS Min Qty: 2 | 272 |
|
$0.3590 / $0.4720 | Buy Now |
|
DISTI #
OS102011MS2QN1C
|
IBS Electronics | SWITCH SLIDE ON ON SPDT TOP SLIDE 0.1A 12VDC 10000CYCLE PC PINS BRACKET MOUNT/THROUGH HOLE BULK Min Qty: 400 Package Multiple: 1 | 82843 |
|
$0.3287 / $0.5703 | Buy Now |
|
DISTI #
000000000003569795
|
Sager | Slide Switches .1A @ 12VDC ON-ON Min Qty: 1 | 0 |
|
$0.3507 / $0.4383 | Buy Now |
Part Details for OS102011MS2QN1C
OS102011MS2QN1C CAD Models
OS102011MS2QN1C Part Data Attributes
|
|
OS102011MS2QN1C
C&K
Buy Now
Datasheet
|
Compare Parts:
OS102011MS2QN1C
C&K
SLIDE SWITCH, SPDT, LATCHED, 0.1A, 12VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Color | BLACK | |
| Actuator Length | 0.157 inch | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Type | SLIDE | |
| Body Breadth | 4.3 mm | |
| Body Height | 4.7 mm | |
| Body Length or Diameter | 8.6 mm | |
| Center Contact Material | BRASS | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | .1A@12VDC | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.02 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | PHENOLIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Positions | 2 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| PCB Hole Count | 5 | |
| Packing Method | BULK | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | Gold (Au) | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
