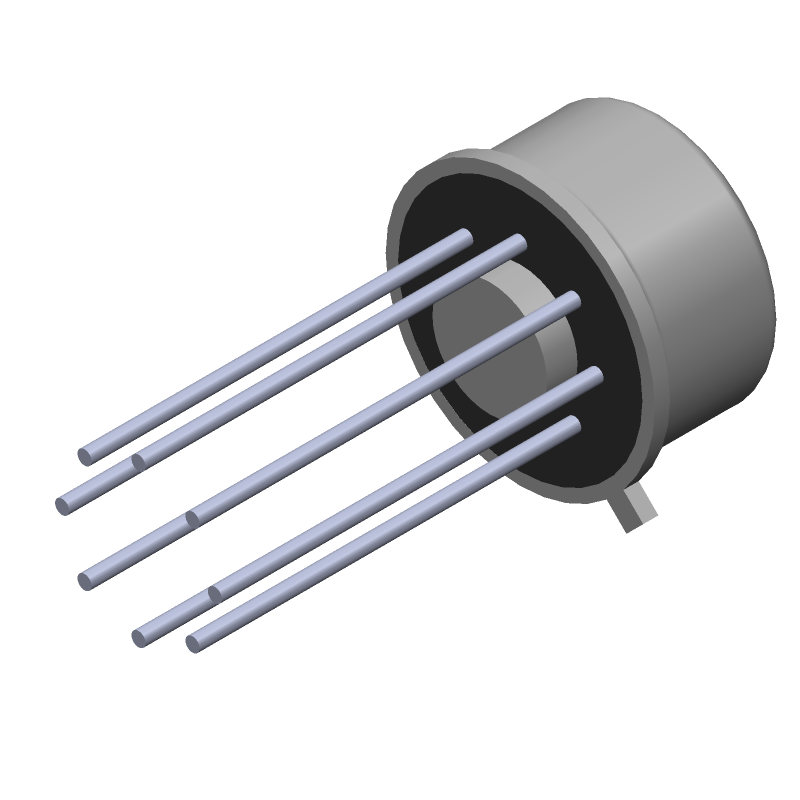

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OP77FJZ by Analog Devices Inc
Results Overview of OP77FJZ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
OP77FJZ Information
OP77FJZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OP77FJZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
OP77FJZ-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT TO99-8 Min Qty: 25 Lead time: 10 Weeks Container: Bulk | Temporarily Out of Stock |
|
$41.3900 | Buy Now |
|
|
Analog Devices Inc | ULTRA-LOW OFFSET VOLTAGE Package Multiple: 1 | 472 |
|
$13.9100 / $21.6700 | Buy Now |
Part Details for OP77FJZ
OP77FJZ CAD Models
OP77FJZ Part Data Attributes
|
|
OP77FJZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
OP77FJZ
Analog Devices Inc
Next Generation OP07, Ultralow Offset Voltage Operational Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TO-99 | |
| Package Description | ROHS COMPLIANT, METAL CAN, TO-99, 8 PIN | |
| Pin Count | 8 | |
| Manufacturer Package Code | H-08-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.028 µA | |
| Bias Current-Max (IIB) @25C | 0.0028 µA | |
| Common-mode Reject Ratio-Min | 116 dB | |
| Common-mode Reject Ratio-Nom | 140 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 60 µV | |
| JESD-30 Code | O-MBCY-W8 | |
| JESD-609 Code | e4 | |
| Low-Offset | YES | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Body Material | METAL | |
| Package Code | TO-99 | |
| Package Equivalence Code | CAN8,.2 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Qualification Status | Not Qualified | |
| Slew Rate-Min | 0.1 V/us | |
| Slew Rate-Nom | 0.3 V/us | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | OTHER | |
| Terminal Finish | Gold (Au) | |
| Terminal Form | WIRE | |
| Terminal Position | BOTTOM | |
| Unity Gain BW-Nom | 600 | |
| Voltage Gain-Min | 2000000 |
Alternate Parts for OP77FJZ
This table gives cross-reference parts and alternative options found for OP77FJZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OP77FJZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OP77FJ | Calogic Inc | Check for Price | Operational Amplifier, 1 Func, 100uV Offset-Max, BIPolar, MBCY8, TO-99, 8 PIN | OP77FJZ vs OP77FJ |
OP77FJZ Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the OP77FJZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, ensure that the feedback loop has a sufficient phase margin and gain margin.
-
The recommended input impedance for the OP77FJZ is in the range of 1kΩ to 10kΩ. This ensures that the input bias current is minimized, and the amplifier operates within its specified performance.
-
Yes, the OP77FJZ can be used as a unity-gain buffer. However, it's essential to ensure that the output is properly terminated to prevent oscillations. A 100Ω to 1kΩ resistor in series with the output can help stabilize the amplifier.
-
To minimize EMI and RFI, use proper shielding, grounding, and layout techniques. Ensure that the amplifier is placed in a shielded area, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
