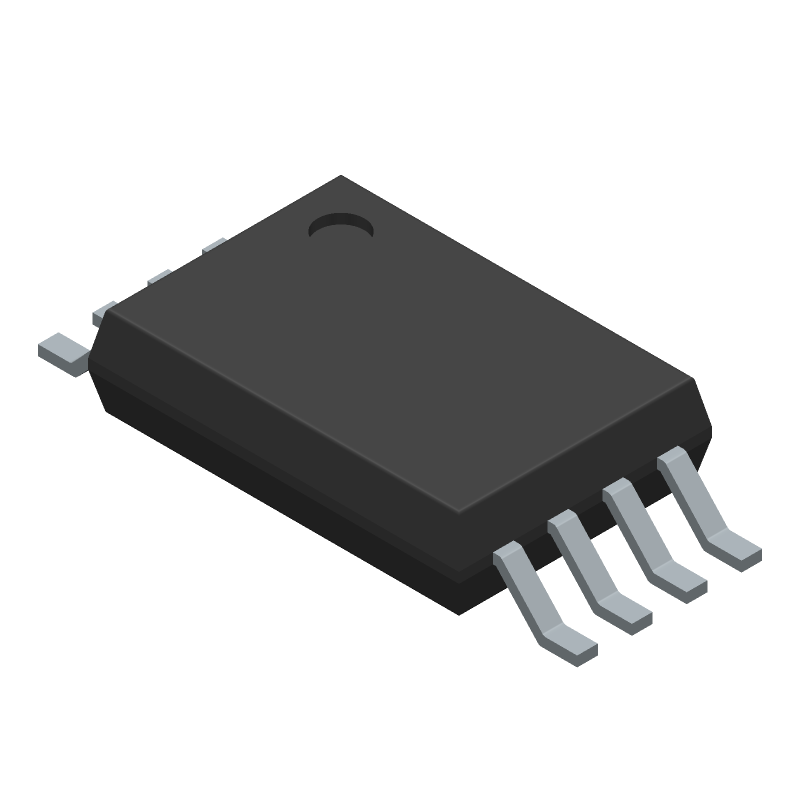

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OP262DRUZ-REEL by Analog Devices Inc
Results Overview of OP262DRUZ-REEL by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
OP262DRUZ-REEL Information
OP262DRUZ-REEL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer | |
| HSCHD02CR2001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Brown housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for OP262DRUZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AK8036
|
Newark | Op-Amp, 15Mhz, -40 To 125Deg C, Tssop-8, No. Of Channels:2Channels, Gain Bandwidth Product:15Mhz, Supply Voltage Range:2.7V To 12V, ± 1.5V To ± 6V, Ic Case/Package:Tssop, No. Of Pins:8Pins, Amplifier Type:General Purpose Rohs Compliant: Yes |Analog Devices OP262DRUZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1241 |
|
$2.2100 / $4.9000 | Buy Now |
|
DISTI #
505-OP262DRUZ-REELCT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2742 In Stock |
|
$2.0125 / $5.4700 | Buy Now |
|
DISTI #
584-OP262DRUZ-R
|
Mouser Electronics | Operational Amplifiers - Op Amps 15 MHZ RAIL-TO-RAIL DUAL RoHS: Compliant | 2173 |
|
$2.1300 / $4.0300 | Buy Now |
|
|
Analog Devices Inc | 15 MHZ RAIL-TO-RAIL DUAL Min Qty: 1 Package Multiple: 2500 | 549 |
|
$2.0125 / $5.4700 | Buy Now |
|
|
Bristol Electronics | 4018 |
|
RFQ | ||
|
|
Quest Components | OPERATIONAL AMPLIFIER, 2 FUNC, 5000UV OFFSET-MAX, BIPOLAR, PDSO8 | 3214 |
|
$2.2500 / $4.5000 | Buy Now |
|
|
Rochester Electronics | OP262 - 15 MHz, Rail-To-Rail, Dual Operational Amplifier RoHS: Compliant Status: Active Min Qty: 1 | 239 |
|
$1.6900 / $2.1100 | Buy Now |
|
|
Vyrian | Amplifiers | 1484 |
|
RFQ |
Part Details for OP262DRUZ-REEL
OP262DRUZ-REEL CAD Models
OP262DRUZ-REEL Part Data Attributes
|
|
OP262DRUZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
OP262DRUZ-REEL
Analog Devices Inc
15 MHz Rail-to-Rail Operational Dual Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-153AA, TSSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RU-8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.65 µA | |
| Bias Current-Max (IIB) @25C | 0.6 µA | |
| Common-mode Reject Ratio-Nom | 110 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.4 mm | |
| Low-Offset | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Slew Rate-Nom | 13 V/us | |
| Supply Current-Max | 2 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 15000 | |
| Voltage Gain-Min | 20000 | |
| Width | 3 mm |
Alternate Parts for OP262DRUZ-REEL
This table gives cross-reference parts and alternative options found for OP262DRUZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OP262DRUZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OP262DRU-REEL | Analog Devices Inc | Check for Price | IC DUAL OP-AMP, 5000 uV OFFSET-MAX, 15 MHz BAND WIDTH, PDSO8, MO-153AA, TSSOP-8, Operational Amplifier | OP262DRUZ-REEL vs OP262DRU-REEL |
OP262DRUZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for the OP262DRUZ-REEL should minimize noise and parasitic inductance. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure stability, make sure to follow the recommended compensation capacitor values and placement. Also, ensure that the output impedance of the amplifier is matched to the load impedance, and that the gain is set correctly. Additionally, decouple the power supply lines with capacitors to reduce noise.
-
The maximum power dissipation for the OP262DRUZ-REEL is 1.4W. Make sure to provide adequate heat sinking and thermal management to prevent overheating, especially in high-temperature or high-power applications.
-
Yes, the OP262DRUZ-REEL can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. Ensure that the input signal is within this range to maintain optimal performance.
-
To reduce noise and EMI, use shielding, filtering, and grounding techniques. Use a metal shield around the amplifier circuit, and add ferrite beads or chokes to filter out high-frequency noise. Ensure that the PCB layout is designed to minimize noise coupling and radiation.
