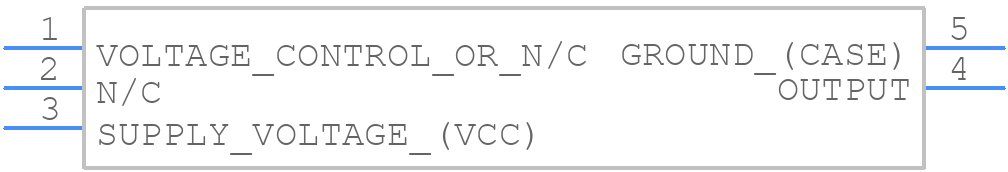

Part Symbol
-

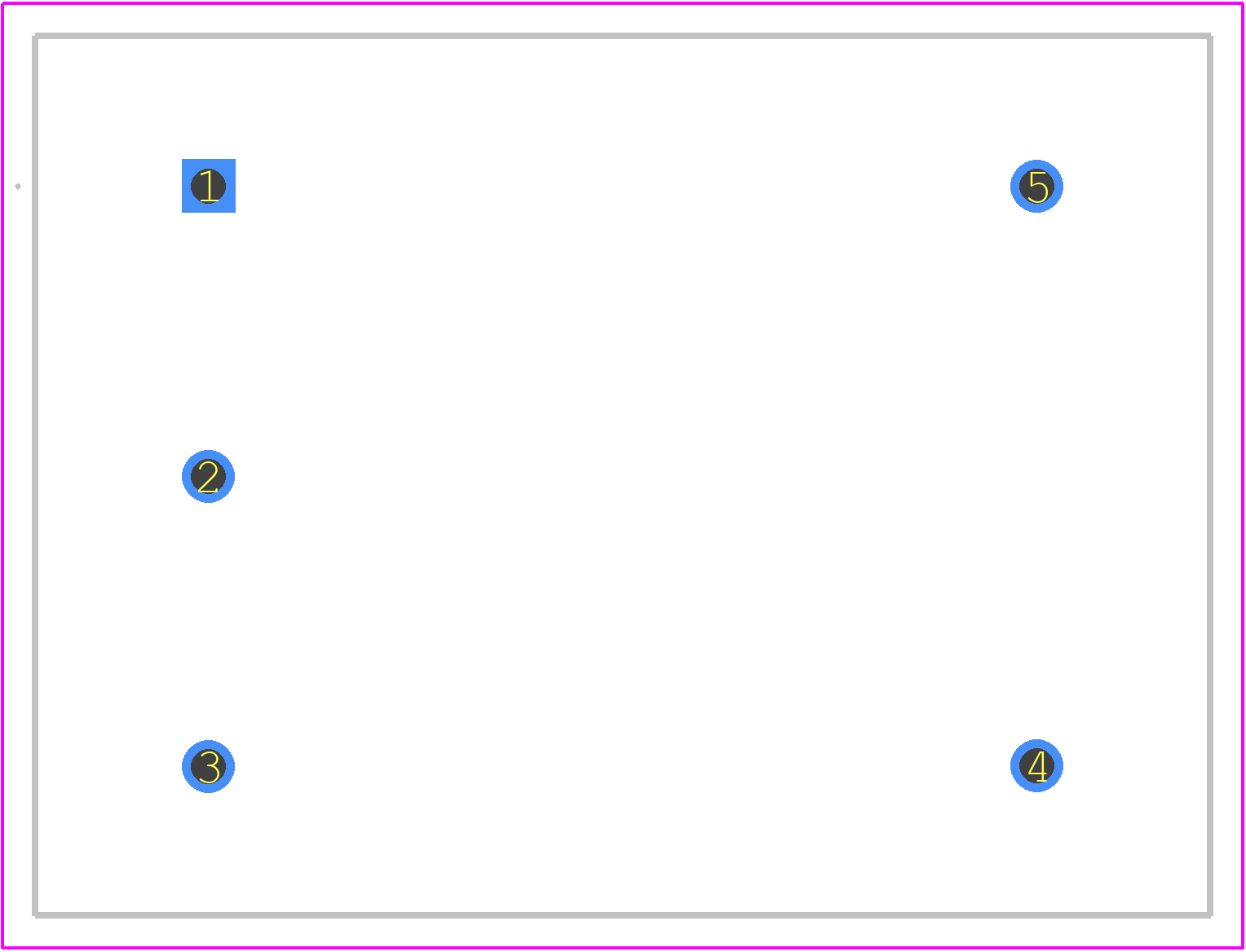

Footprint
-

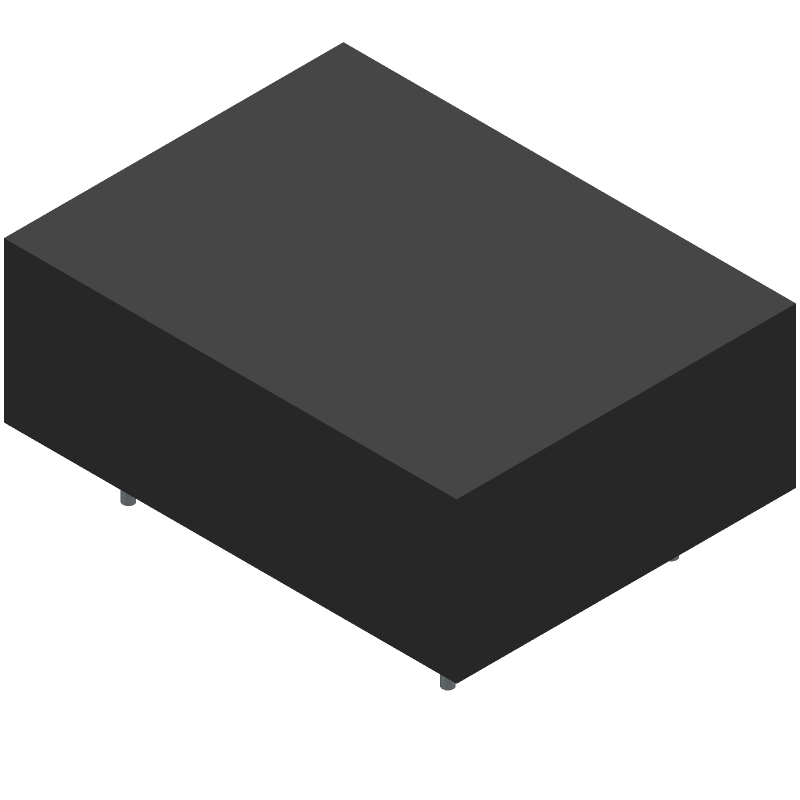

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OH200-61003CF-025.0M by Connor-Winfield
Results Overview of OH200-61003CF-025.0M by Connor-Winfield
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
OH200-61003CF-025.0M Information
OH200-61003CF-025.0M by Connor-Winfield is an OCXO.
OCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for OH200-61003CF-025.0M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
222-OH200-61003CF-025.0M-ND
|
DigiKey | XTAL OSC OCXO 25.0000MHZ CMOS TH Min Qty: 1 Lead time: 18 Weeks Container: Bulk |
53 In Stock |
|
$81.2500 / $92.2700 | Buy Now |
Part Details for OH200-61003CF-025.0M
OH200-61003CF-025.0M CAD Models
OH200-61003CF-025.0M Part Data Attributes
|
|
OH200-61003CF-025.0M
Connor-Winfield
Buy Now
Datasheet
|
Compare Parts:
OH200-61003CF-025.0M
Connor-Winfield
CMOS Output Clock Oscillator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CONNOR WINFIELD CORP | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Connor Winfield | |
| Aging | 0.1 PPM/FIRST YEAR | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 0.005% | |
| Frequency Stability-Voltage | 0.005 ppm | |
| Input Power | 1.5 W | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 5 | |
| Operating Frequency-Nom | 25 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | CMOS | |
| Output Load | 15 pF | |
| Oven Supply Voltage | 3.3V | |
| Physical Dimension | 36mm x 27mm x 12.7mm | |
| Supply Voltage-Max | 3.47 V | |
| Supply Voltage-Min | 3.13 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | NO | |
| Warm-up Power | 3.8 W | |
| Warm-up Time-Max | 5 Minute |
