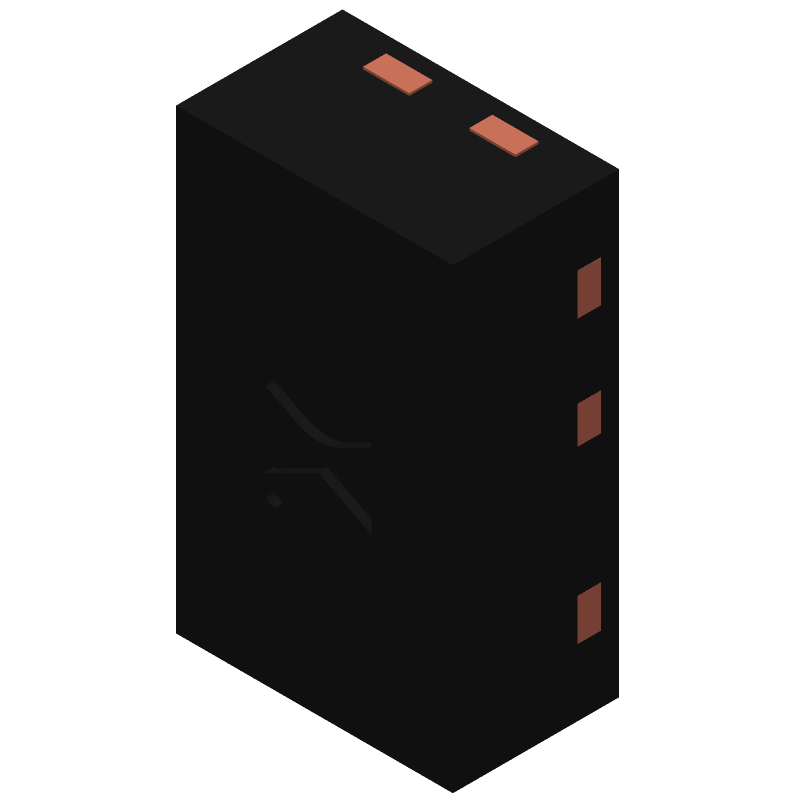

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NX7002BKMBYL by Nexperia
Results Overview of NX7002BKMBYL by Nexperia
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NX7002BKMBYL Information
NX7002BKMBYL by Nexperia is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NX7002BKMBYL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68Y7770
|
Newark | Mosfet, N-Ch, 60V, 0.35A, Sot-883B, Channel Type:N Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:350Ma, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.6V Rohs Compliant: Yes |Nexperia NX7002BKMBYL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3 |
|
$0.0390 | Buy Now |
|
DISTI #
1727-2231-1-ND
|
DigiKey | MOSFET N-CH 60V 350MA DFN1006B-3 Min Qty: 1 Lead time: 8 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
17082 In Stock |
|
$0.0233 / $0.2400 | Buy Now |
|
DISTI #
NX7002BKMBYL
|
Avnet Americas | Trans MOSFET N-CH 60V 0.35A 3-Pin DFN T/R - Tape and Reel (Alt: NX7002BKMBYL) RoHS: Compliant Min Qty: 30000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0195 / $0.0229 | Buy Now |
|
DISTI #
771-NX7002BKMBYL
|
Mouser Electronics | MOSFETs 60 V, N-channel Trench MOSFET RoHS: Compliant | 34359 |
|
$0.0270 / $0.2400 | Buy Now |
|
DISTI #
V36:1790_06532170
|
Arrow Electronics | Trans MOSFET N-CH 60V 0.35A 3-Pin DFN-B T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Date Code: 2502 | Americas - 40000 |
|
$0.0231 | Buy Now |
|
|
Future Electronics | MOSFET N-CH 60V SGL 3-DFN1006B RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Container: Reel | 10000Reel |
|
$0.0250 / $0.0267 | Buy Now |
|
DISTI #
80935983
|
Verical | Trans MOSFET N-CH 60V 0.35A 3-Pin DFN-B T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2417 | Americas - 150000 |
|
$0.0264 | Buy Now |
|
DISTI #
87703196
|
Verical | Trans MOSFET N-CH 60V 0.35A 3-Pin DFN-B T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2502 | Americas - 40000 |
|
$0.0231 | Buy Now |
|
|
Rochester Electronics | NX7002B - 60V, N-channel Trench MOSFET RoHS: Compliant Status: Active Min Qty: 1 | 5617 |
|
$0.0201 / $0.0324 | Buy Now |
|
DISTI #
NX7002BKMBYL
|
TTI | MOSFETs 60 V, N-channel Trench MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 20000 Package Multiple: 10000 Container: Reel | Americas - 0 |
|
$0.0235 / $0.0260 | Buy Now |
Part Details for NX7002BKMBYL
NX7002BKMBYL CAD Models
NX7002BKMBYL Part Data Attributes
|
|
NX7002BKMBYL
Nexperia
Buy Now
Datasheet
|
Compare Parts:
NX7002BKMBYL
Nexperia
NX7002BKMB - 60 V, N-channel Trench MOSFET@en-us DFN 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFN | |
| Package Description | DFN1006B-3, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT883B | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOGIC LEVEL COMPATIBLE | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 0.35 A | |
| Drain-source On Resistance-Max | 3.2 Ω | |
| FET Technology | TRENCH MOSFET | |
| Feedback Cap-Max (Crss) | 3 pF | |
| JESD-30 Code | R-PBCC-N3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 3.1 W | |
| Pulsed Drain Current-Max (IDM) | 0.9 A | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
NX7002BKMBYL Frequently Asked Questions (FAQ)
-
Nexperia recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
-
Use a pull-up resistor (e.g., 2.2 kΩ) on the SCL and SDA lines, and ensure the bus capacitance is within the recommended range (400 pF). Also, use a common ground plane and minimize bus length to reduce noise and signal degradation.
-
The maximum allowed voltage on the input pins is 5.5 V, which is the absolute maximum rating. However, for normal operation, the recommended input voltage range is 1.8 V to 5.0 V.
-
The NX7002BKMBYL has an internal POR and BOD circuitry. The POR ensures the device resets properly during power-up, while the BOD detects voltage drops and resets the device if the voltage falls below the threshold (typically 1.8 V). No external components are required for these features.
-
The WAKEUP pin is an active-low input that can be used to wake up the device from a low-power state. Connect the WAKEUP pin to a GPIO or an external interrupt source to trigger the device to exit low-power mode.
