Crystals/Resonators / Quartz Crystals / NX3225SA-26.000000MHZ-G4
Datasheets
NX3225SA-26.000000MHZ-G4 by: Nihon Dempa Kogyo Co Ltd

Parallel - Fundamental Quartz Crystal, 26MHz Nom,

Part Details for NX3225SA-26.000000MHZ-G4 by Nihon Dempa Kogyo Co Ltd

Results Overview of NX3225SA-26.000000MHZ-G4 by Nihon Dempa Kogyo Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

NX3225SA-26.000000MHZ-G4 Information

NX3225SA-26.000000MHZ-G4 by Nihon Dempa Kogyo Co Ltd is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.

Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.

Price & Stock for NX3225SA-26.000000MHZ-G4

Part # Distributor Description Stock Price Buy
DISTI # 344-NX3225SA26MHZG4
Mouser Electronics Crystals RoHS: Compliant 4527
  • 1 $1.0800
  • 10 $0.9250
  • 50 $0.8350
  • 100 $0.7980
  • 200 $0.7080
  • 3,000 $0.6000
$0.6000 / $1.0800 Buy Now
Quest Components PARALLEL - FUNDAMENTAL QUARTZ CRYSTAL, 26MHZ NOM 22
  • 1 $1.0284
  • 6 $0.8570
  • 19 $0.6170
$0.6170 / $1.0284 Buy Now
Cytech Systems Limited XTAL 26.0000MHZ 10PPM 10PF SMD 829
RFQ

Part Details for NX3225SA-26.000000MHZ-G4

NX3225SA-26.000000MHZ-G4 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

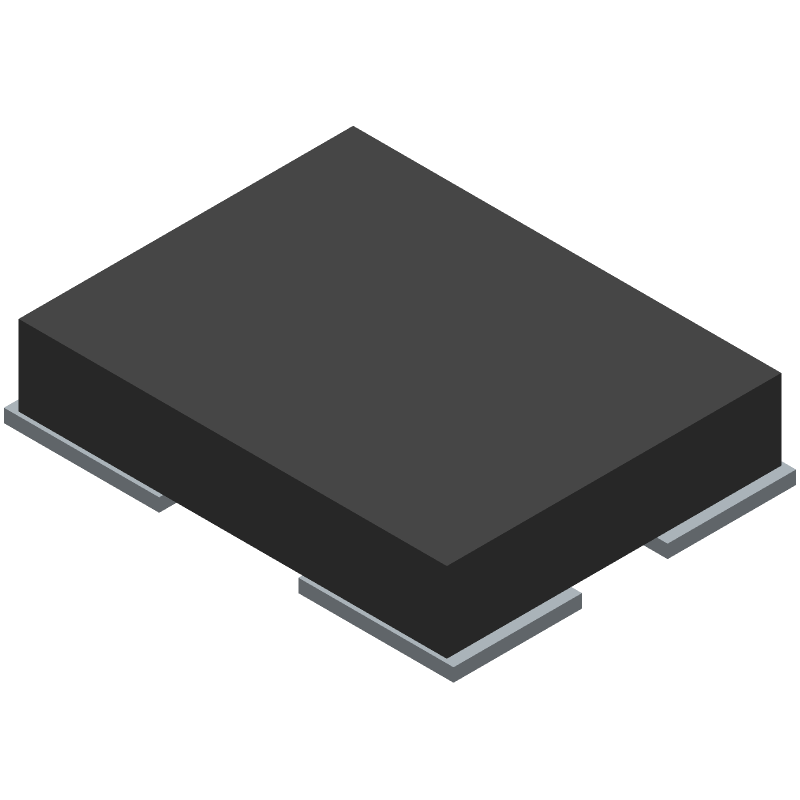

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

NX3225SA-26.000000MHZ-G4 Part Data Attributes

Parametric Data
NX3225SA-26.000000MHZ-G4 Nihon Dempa Kogyo Co Ltd
Buy Now Datasheet
Compare Parts:
NX3225SA-26.000000MHZ-G4 Nihon Dempa Kogyo Co Ltd Parallel - Fundamental Quartz Crystal, 26MHz Nom,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NIHON DEMPA KOGYO CO LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.60.00.60
Samacsys Manufacturer NDK
Additional Feature SERIES RESONANCE MODE ALSO AVAILABLE
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Drive Level 10 µW
Frequency Stability 0.001%
Frequency Tolerance 10 ppm
JESD-609 Code e4
Load Capacitance 10 pF
Mounting Feature SURFACE MOUNT
Operating Frequency-Nom 26 MHz
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
Physical Dimension L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)
Series Resistance 50 Ω
Surface Mount YES
Terminal Finish GOLD OVER NICKEL

Alternate Parts for NX3225SA-26.000000MHZ-G4

This table gives cross-reference parts and alternative options found for NX3225SA-26.000000MHZ-G4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NX3225SA-26.000000MHZ-G4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
M12542DD1026.0000MHZ MtronPTI Check for Price Parallel - Fundamental Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, LEADLESS, CERAMIC PACKAGE-4 NX3225SA-26.000000MHZ-G4 vs M12542DD1026.0000MHZ
CX3225SB26000F0FFFZ1 KYOCERA Crystal Device Corporation Check for Price Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 26 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4 NX3225SA-26.000000MHZ-G4 vs CX3225SB26000F0FFFZ1
ABH3-26.000MHZ-R50-1-U-T Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, HERMETIC, CERAMIC, SMD, 2 PINS NX3225SA-26.000000MHZ-G4 vs ABH3-26.000MHZ-R50-1-U-T
ABH4B-26.000MHZ-1-U Abracon Corporation Check for Price Parallel - Fundamental Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, HERMETIC GLASS SEALED, CERAMIC, SMD, 4 PIN NX3225SA-26.000000MHZ-G4 vs ABH4B-26.000MHZ-1-U
M12546DD1026.0000MHZ MtronPTI Check for Price Parallel - Fundamental Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, LEADLESS, CERAMIC PACKAGE-4 NX3225SA-26.000000MHZ-G4 vs M12546DD1026.0000MHZ
M12543DD1026.0000MHZ MtronPTI Check for Price Parallel - Fundamental Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, LEADLESS, CERAMIC PACKAGE-4 NX3225SA-26.000000MHZ-G4 vs M12543DD1026.0000MHZ
M12541DD1026.0000MHZ MtronPTI Check for Price Parallel - Fundamental Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, LEADLESS, CERAMIC PACKAGE-4 NX3225SA-26.000000MHZ-G4 vs M12541DD1026.0000MHZ

NX3225SA-26.000000MHZ-G4 Related Parts

NX3225SA-26.000000MHZ-G4 Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the NX3225SA-26.000000MHZ-G4 is -20°C to +70°C, but it can operate up to +85°C with reduced frequency stability.

  • To ensure the crystal oscillator is properly driven, a CMOS-compatible driver with a high output impedance is recommended. The driver should be able to provide a minimum of 1mA of current to drive the oscillator.

  • The typical start-up time for the NX3225SA-26.000000MHZ-G4 is around 2-5ms, but this can vary depending on the specific application and operating conditions.

  • Yes, the NX3225SA-26.000000MHZ-G4 is designed to operate in high-vibration environments and can withstand vibrations up to 10G.

  • The recommended storage temperature range for the NX3225SA-26.000000MHZ-G4 is -40°C to +85°C.
