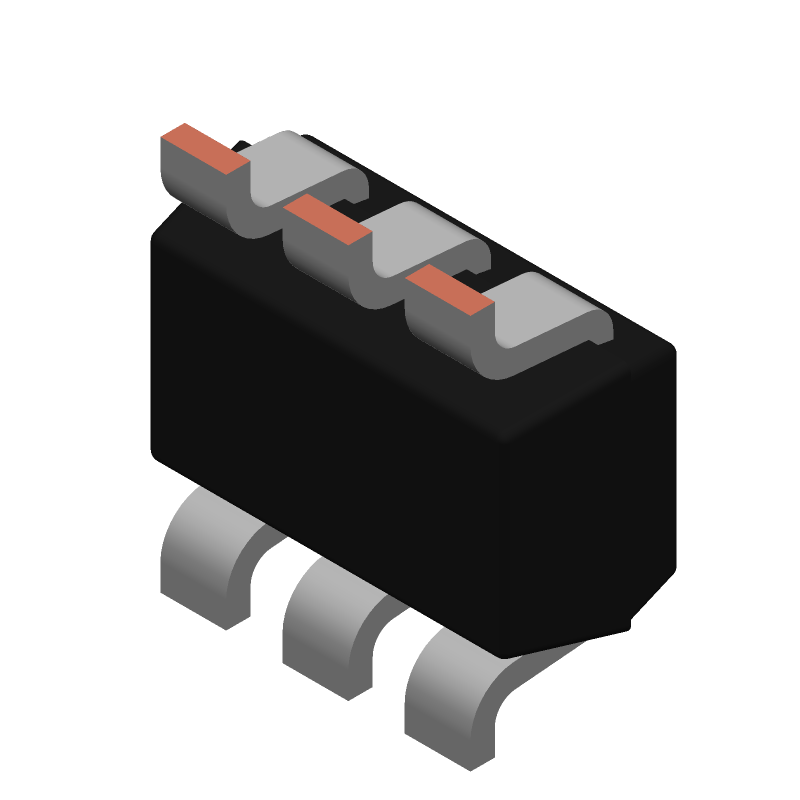

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NX3008NBKSH by Nexperia
Results Overview of NX3008NBKSH by Nexperia
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
Robotics and Drones
NX3008NBKSH Information
NX3008NBKSH by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NX3008NBKSH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-2726-1-ND
|
DigiKey | MOSFET 2N-CH 30V 0.35A 6TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5003 In Stock |
|
$0.0426 / $0.3800 | Buy Now |
|
DISTI #
NX3008NBKSH
|
Avnet Americas | Transistor MOSFET Array Dual N-CH 30V 350mA 6-Pin TSSOP T/R - Tape and Reel (Alt: NX3008NBKSH) RoHS: Compliant Min Qty: 18000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0352 / $0.0414 | Buy Now |
|
DISTI #
771-NX3008NBKSH
|
Mouser Electronics | MOSFETs 30 V, 400 mA dual N-channel Trench MOSFET RoHS: Compliant | 7259 |
|
$0.0440 / $0.3600 | Buy Now |
|
DISTI #
E02:0323_10396863
|
Arrow Electronics | Trans MOSFET N-CH 30V 0.35A Automotive AEC-Q101 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 18000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2415 | Europe - 24000 |
|
$0.0425 / $0.0427 | Buy Now |
|
DISTI #
NX3008NBKSH
|
TTI | MOSFETs 30 V, 400 mA dual N-channel Trench MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 12000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0570 / $0.0630 | Buy Now |
|
DISTI #
NX3008NBKSH
|
Avnet Asia | 30 V, 350 MA DUAL N-CHANNEL TRENCH MOSFE (Alt: NX3008NBKSH) RoHS: Compliant Min Qty: 18000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days | 0 |
|
$0.0532 / $0.0595 | Buy Now |
|
DISTI #
NX3008NBKSH
|
Avnet Silica | Transistor MOSFET Array Dual NCH 30V 350mA 6Pin TSSOP TR (Alt: NX3008NBKSH) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | Silica - 9000 |
|
Buy Now | |
|
DISTI #
NX3008NBKSH
|
EBV Elektronik | Transistor MOSFET Array Dual NCH 30V 350mA 6Pin TSSOP TR (Alt: NX3008NBKSH) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Transistors | 11672 |
|
RFQ |
Part Details for NX3008NBKSH
NX3008NBKSH CAD Models
NX3008NBKSH Part Data Attributes
|
|
NX3008NBKSH
Nexperia
Buy Now
Datasheet
|
Compare Parts:
NX3008NBKSH
Nexperia
vp_NX3008NBKS - 30 V, 350 mA dual N-channel Trench MOSFET@en-us TSSOP 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Package Description | SC-88, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT363 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 0.35 A | |
| Drain-source On Resistance-Max | 1.4 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
NX3008NBKSH Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the NX3008NBKSH is 1.71 V to 3.6 V.
-
To ensure stability, it's recommended to use a minimum output capacitance of 1 μF, and a maximum equivalent series resistance (ESR) of 1 Ω.
-
The maximum power dissipation for the NX3008NBKSH is 1.5 W.
-
Yes, the NX3008NBKSH is rated for operation up to 125°C, but the output voltage and current capabilities may be derated at higher temperatures.
-
The NX3008NBKSH has built-in overcurrent protection and thermal shutdown. However, it's still recommended to add external protection circuits and thermal monitoring to ensure safe operation.
