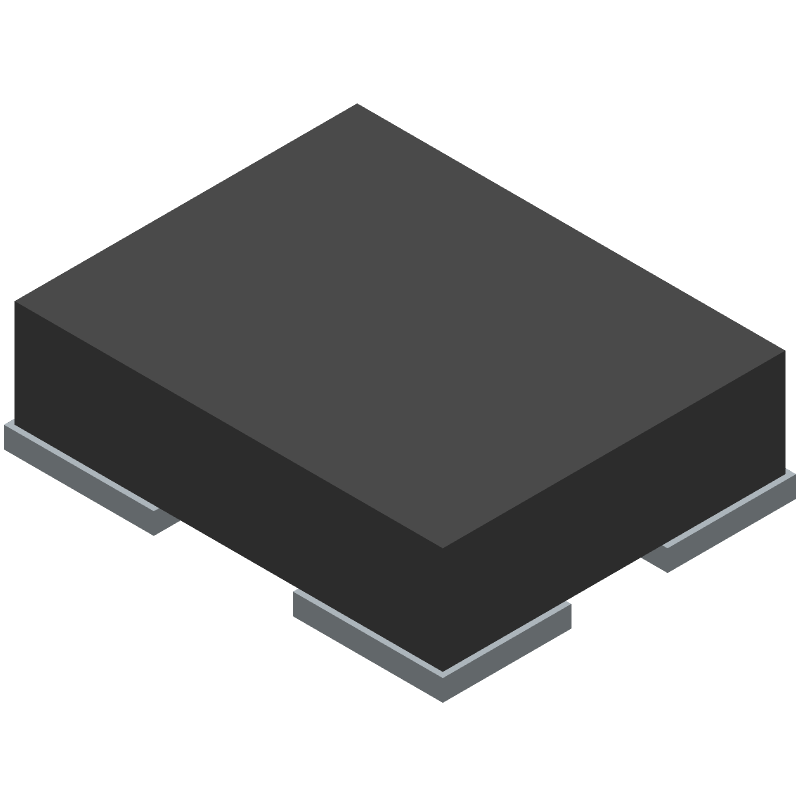

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NX2016SA-50M-STD-CZS-3 by Nihon Dempa Kogyo Co Ltd
Results Overview of NX2016SA-50M-STD-CZS-3 by Nihon Dempa Kogyo Co Ltd
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Renewable Energy
NX2016SA-50M-STD-CZS-3 Information
NX2016SA-50M-STD-CZS-3 by Nihon Dempa Kogyo Co Ltd is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DE6B3KJ151KB4BE01J | Murata Manufacturing Co Ltd | Safety Standard Certified Lead Type Disc Ceramic Capacitors for Automotive | |
| DE6B3KJ471KN4AE01J | Murata Manufacturing Co Ltd | Safety Standard Certified Lead Type Disc Ceramic Capacitors for Automotive | |
| DE6E3KJ222MA4B | Murata Manufacturing Co Ltd | Safety Standard Certified Lead Type Disc Ceramic Capacitors for Automotive |
Price & Stock for NX2016SA-50M-STD-CZS-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
344-NX2016SA50MSTZS3
|
Mouser Electronics | Crystals CRYSTAL 50MHZ 8PF SMD RoHS: Compliant | 10691 |
|
$0.4260 / $0.8000 | Buy Now |
Part Details for NX2016SA-50M-STD-CZS-3
NX2016SA-50M-STD-CZS-3 CAD Models
NX2016SA-50M-STD-CZS-3 Part Data Attributes
|
|
NX2016SA-50M-STD-CZS-3
Nihon Dempa Kogyo Co Ltd
Buy Now
Datasheet
|
Compare Parts:
NX2016SA-50M-STD-CZS-3
Nihon Dempa Kogyo Co Ltd
Parallel - Fundamental Quartz Crystal, 50MHz Nom, SMD, 4 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NIHON DEMPA KOGYO CO LTD | |
| Package Description | SMD, 4 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | NDK | |
| Additional Feature | AEC-Q200 | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 10 µW | |
| Frequency Stability | 0.005% | |
| Frequency Tolerance | 15 ppm | |
| JESD-609 Code | e4 | |
| Load Capacitance | 8 pF | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Nom | 50 MHz | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Physical Dimension | 2.0mm X 1.6mm X 0.45mm | |
| Series Resistance | 50 Ω | |
| Surface Mount | YES | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier |
NX2016SA-50M-STD-CZS-3 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for the NX2016SA-50M-STD-CZS-3 is -40°C to 125°C.
-
Yes, the NX2016SA-50M-STD-CZS-3 is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
-
The maximum operating frequency of the NX2016SA-50M-STD-CZS-3 is 50 MHz.
-
Yes, the NX2016SA-50M-STD-CZS-3 is sensitive to electrostatic discharge (ESD) and should be handled with anti-static precautions. It should also be stored in its original packaging to prevent damage.
-
Yes, the NX2016SA-50M-STD-CZS-3 is compliant with the European Union's RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
