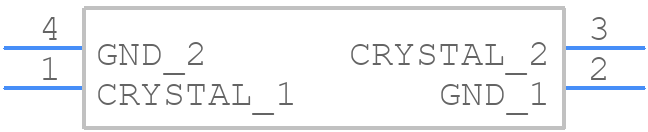

Part Symbol
-
Footprint
-

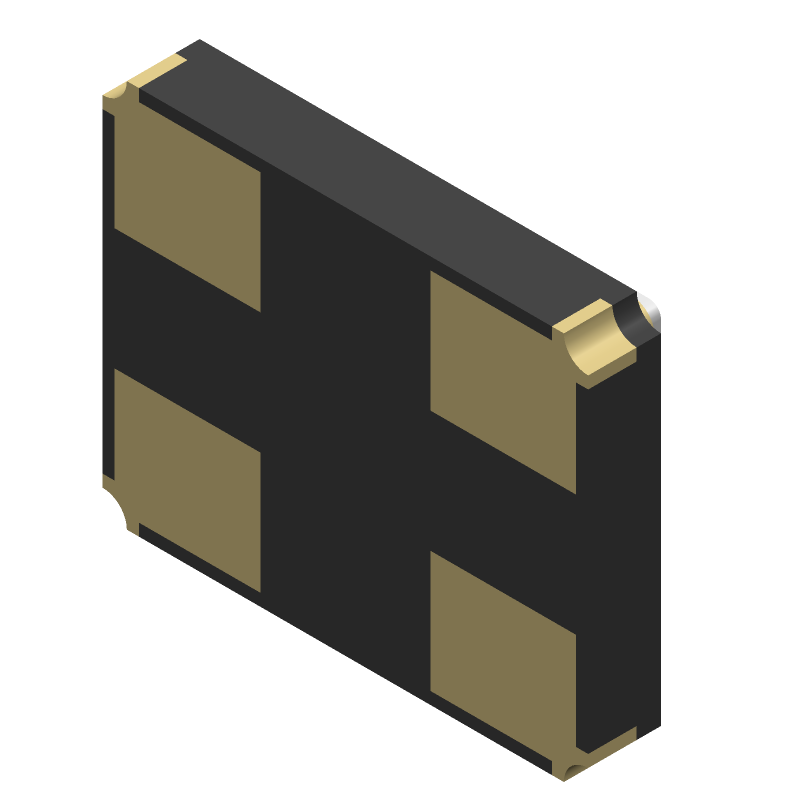

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NX2016SA-25.000M-STD-CZS-1 by Nihon Dempa Kogyo Co Ltd
Results Overview of NX2016SA-25.000M-STD-CZS-1 by Nihon Dempa Kogyo Co Ltd
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Renewable Energy
NX2016SA-25.000M-STD-CZS-1 Information
NX2016SA-25.000M-STD-CZS-1 by Nihon Dempa Kogyo Co Ltd is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CA3085B | Rochester Electronics LLC | CA3085 - Adjustable Positive Standard Regulator | |
| 27LS07DM/B | Rochester Electronics LLC | 27LS07 - Standard SRAM, 16X4 | |
| 27S07ADM/B | Rochester Electronics LLC | 27S07A - Standard SRAM, 16X4 |
Price & Stock for NX2016SA-25.000M-STD-CZS-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
344-NX2016SA25MSTZS1
|
Mouser Electronics | Crystals CRYSTAL 25MHZ 8PF SMD RoHS: Compliant | 0 |
|
$0.2990 / $0.5700 | Order Now |
Part Details for NX2016SA-25.000M-STD-CZS-1
NX2016SA-25.000M-STD-CZS-1 CAD Models
NX2016SA-25.000M-STD-CZS-1 Part Data Attributes
|
|
NX2016SA-25.000M-STD-CZS-1
Nihon Dempa Kogyo Co Ltd
Buy Now
Datasheet
|
Compare Parts:
NX2016SA-25.000M-STD-CZS-1
Nihon Dempa Kogyo Co Ltd
Quartz Crystal
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NIHON DEMPA KOGYO CO LTD | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.60.00.60 | |
| Samacsys Manufacturer | NDK | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 10 µW | |
| Frequency Stability | 0.0025% | |
| Frequency Tolerance | 15 ppm | |
| JESD-609 Code | e4 | |
| Load Capacitance | 8 pF | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Nom | 25 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Physical Dimension | 2mm x 1.6mm x 0.45mm | |
| Series Resistance | 80 Ω | |
| Surface Mount | YES | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier |
