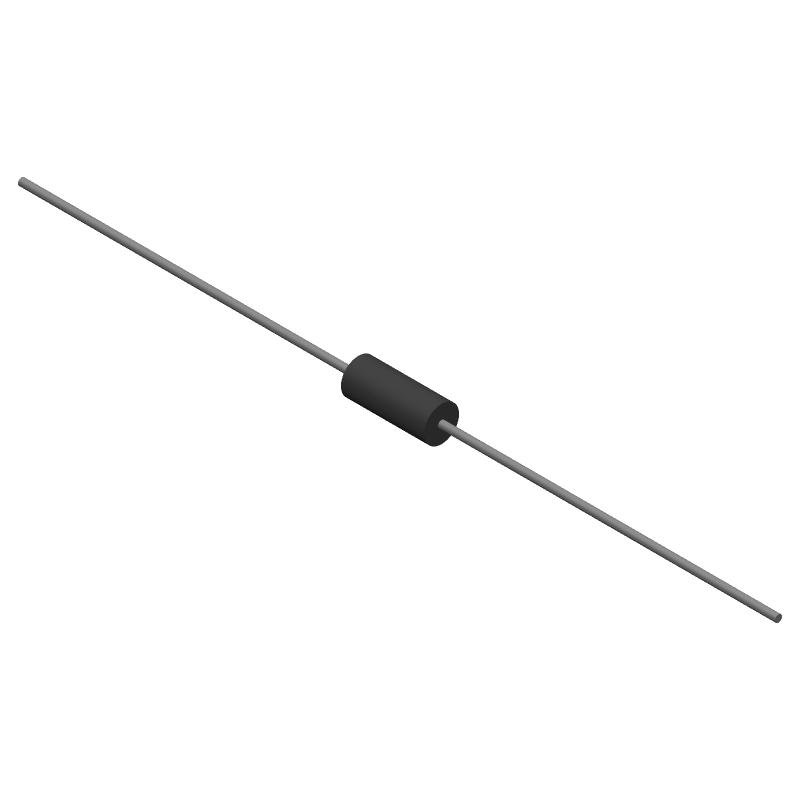

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NWW2JTR100 by SEI Stackpole Electronics Inc
Results Overview of NWW2JTR100 by SEI Stackpole Electronics Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Aerospace and Defense
Energy and Power Systems
Renewable Energy
Medical Imaging
Robotics and Drones
NWW2JTR100 Information
NWW2JTR100 by SEI Stackpole Electronics Inc is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for NWW2JTR100
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
NWW2JTR100-ND
|
DigiKey | RES 0.1 OHM 5% 2.5W AXIAL Min Qty: 2000 Lead time: 11 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.5094 | Buy Now |
|
DISTI #
NWW2JTR100
|
Avnet Americas | Resistor Precision Wirewound 0.1Ohm 5% 2W ?90ppm/?C Conformal Axial Leaded Bulk (Alt: NWW2JTR100) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
708-NWW2JTR100
|
Mouser Electronics | Wirewound Resistors - Through Hole RES, WW, 2W, 0.1 ohm, 5% RoHS: Compliant | 0 |
|
$0.5090 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.4730 / $0.5540 | Buy Now |
|
|
NAC | RESISTOR, WIREWOUND, 2W, 0.1 ohm, 5% - Conformal Coated Wirewound Resistor - Non-Inductive RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | 0 |
|
$0.9700 / $1.2930 | Buy Now |
Part Details for NWW2JTR100
NWW2JTR100 CAD Models
NWW2JTR100 Part Data Attributes
|
|
NWW2JTR100
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
NWW2JTR100
SEI Stackpole Electronics Inc
Fixed Resistor, Wire Wound, 2.1W, 0.1ohm, 1000V, 5% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | Axial, | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.80 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | NON-INDUCTIVE, PRECISION | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.81 mm | |
| Lead Length | 38.1 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 350 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 4 mm | |
| Package Length | 9.4 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | TR, 11 INCH | |
| Rated Power Dissipation (P) | 2.1 W | |
| Rated Temperature | 70 °C | |
| Resistance | 0.1 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 90 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 1000 V |
Alternate Parts for NWW2JTR100
This table gives cross-reference parts and alternative options found for NWW2JTR100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NWW2JTR100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| WW2JTR100 | SEI Stackpole Electronics Inc | Check for Price | Fixed Resistor, Wire Wound, 2.1W, 0.1ohm, 1000V, 5% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT | NWW2JTR100 vs WW2JTR100 |
