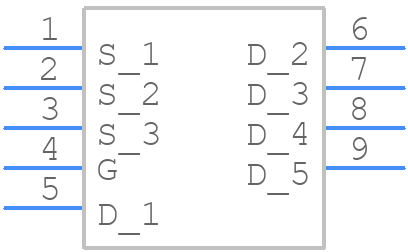

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTTFS034N15MC by onsemi
Results Overview of NTTFS034N15MC by onsemi
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Space Technology
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Electronic Manufacturing
Communication and Networking
Robotics and Drones
NTTFS034N15MC Information
NTTFS034N15MC by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NTTFS034N15MC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
22AJ0335
|
Newark | Ptng 150V 34Mohm, Powerclip33/ Reel Rohs Compliant: Yes |Onsemi NTTFS034N15MC RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.7740 / $1.0100 | Buy Now |
|
DISTI #
488-NTTFS034N15MCCT-ND
|
DigiKey | PTNG 150V 34MOHM POWERCLIP33 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
11978 In Stock |
|
$0.7619 / $2.2600 | Buy Now |
|
DISTI #
NTTFS034N15MC
|
Avnet Americas | Transistor Mosfet N Channel 150V 27A 8-Pin WDFN T/R - Tape and Reel (Alt: NTTFS034N15MC) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel | 3000 Factory Stock |
|
$0.7267 / $0.7433 | Buy Now |
|
DISTI #
863-NTTFS034N15MC
|
Mouser Electronics | MOSFETs PTNG 150V 34MOHM POWERCLIP33 RoHS: Compliant | 2942 |
|
$0.7610 / $2.1100 | Buy Now |
|
|
Onlinecomponents.com | Transistor Mosfet N Channel 150V 27A 8-Pin WDFN T/R RoHS: Compliant | 0 |
|
$0.7570 / $1.5850 | Buy Now |
|
DISTI #
87653925
|
Verical | Trans MOSFET N-CH 150V 27A 8-Pin WDFN EP T/R Min Qty: 3000 Package Multiple: 3000 | Americas - 3000 |
|
$0.7667 | Buy Now |
|
|
Rochester Electronics | NTTFS034N15MC - Power MOSFET, N Channel, 150V, 27 A RoHS: Not Compliant Status: Active Min Qty: 1 | 30680 |
|
$0.6400 / $1.0300 | Buy Now |
|
DISTI #
NTTFS034N15MC
|
Richardson RFPD | POWER MOSFET TRANSISTOR RoHS: Compliant Min Qty: 3000 | 0 |
|
$0.7600 | Buy Now |
|
DISTI #
NTTFS034N15MC
|
Avnet Silica | Transistor Mosfet N Channel 150V 27A 8Pin WDFN TR (Alt: NTTFS034N15MC) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NTTFS034N15MC
|
EBV Elektronik | Transistor Mosfet N Channel 150V 27A 8Pin WDFN TR (Alt: NTTFS034N15MC) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for NTTFS034N15MC
NTTFS034N15MC CAD Models
NTTFS034N15MC Part Data Attributes
|
|
NTTFS034N15MC
onsemi
Buy Now
Datasheet
|
Compare Parts:
NTTFS034N15MC
onsemi
Power MOSFET, N Channel, 150V, 27 A, 31m?Ω, PQFN-8, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PQFN-8 | |
| Package Description | WDFN-8 | |
| Manufacturer Package Code | 483AW | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Avalanche Energy Rating (Eas) | 54 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 150 V | |
| Drain Current-Max (ID) | 27 A | |
| Drain-source On Resistance-Max | 0.031 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 5 pF | |
| JESD-30 Code | S-PDSO-F8 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 53.6 W | |
| Pulsed Drain Current-Max (IDM) | 110 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
