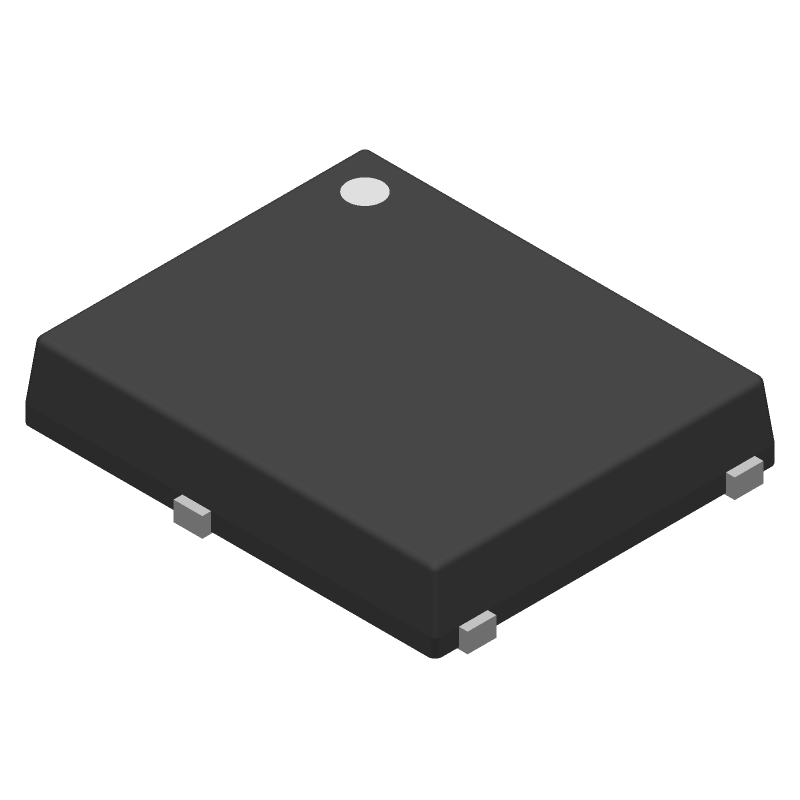

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTS1545MFST1G by onsemi
Results Overview of NTS1545MFST1G by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
NTS1545MFST1G Information
NTS1545MFST1G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for NTS1545MFST1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
NTS1545MFST1G
|
Avnet Silica | Diode Schottky 45V 15A 8Pin SOFL TR (Alt: NTS1545MFST1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NTS1545MFST1G
|
EBV Elektronik | Diode Schottky 45V 15A 8Pin SOFL TR (Alt: NTS1545MFST1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 245 |
|
RFQ | |
|
|
Win Source Electronics | DIODE SCHOTTKY 45V 15A 5DFN / Diode Schottky 45 V 15A Surface Mount 5-DFN (5x6) (8-SOFL) | 10000 |
|
$0.6253 / $0.9380 | Buy Now |
Part Details for NTS1545MFST1G
NTS1545MFST1G CAD Models
NTS1545MFST1G Part Data Attributes
|
|
NTS1545MFST1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NTS1545MFST1G
onsemi
Trench Schottky Rectifier Low Forward 15A, 45V, DFN5 5X6, 1.27P (SO 8FL), 1500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DFN5 5X6, 1.27P (SO 8FL) | |
| Package Description | SO-8FL, DFN5, 6 PIN | |
| Manufacturer Package Code | 488AA | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.57 V | |
| JESD-30 Code | R-PDSO-F5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 210 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 15 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 45 V | |
| Reverse Current-Max | 120 µA | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for NTS1545MFST1G
This table gives cross-reference parts and alternative options found for NTS1545MFST1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NTS1545MFST1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SHD119222 | Sensitron Semiconductors | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 45V V(RRM), Silicon, LCC-3P, 3 PIN | NTS1545MFST1G vs SHD119222 |
| 16KQ50B | Nihon Inter Electronics Corporation | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 50V V(RRM), Silicon, SIMILAR TO TO-247AC (TO-3P), 3 PIN | NTS1545MFST1G vs 16KQ50B |
| NTS1545EMFST3G | onsemi | Check for Price | RECTIFIER DIODE | NTS1545MFST1G vs NTS1545EMFST3G |
NTS1545MFST1G Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation at high temperatures.
-
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
-
Yes, the NTS1545MFST1G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended operating conditions and design guidelines.
-
The NTS1545MFST1G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-protective packaging and handling equipment to prevent damage.
