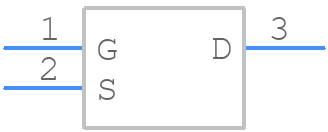

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTR4501NT1G by onsemi
Results Overview of NTR4501NT1G by onsemi
- Distributor Offerings: (37 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
NTR4501NT1G Information
NTR4501NT1G by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NTR4501NT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86AK5855
|
Newark | Nfet Sot23 20V 3.2A 80Mo, Transistor Polarity:N Channel, Continuous Drain Current Id:3.2A, Drain Source Voltage Vds:20V, On Resistance Rds(On):0.08Ohm, Rds(On) Test Voltage Vgs:4.5V, Threshold Voltage Vgs:1.2V, Power Dissipation Rohs Compliant: Yes |Onsemi NTR4501NT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 18000 |
|
$0.0970 / $0.1060 | Buy Now |
|
DISTI #
06R3476
|
Newark | N Channel Mosfet, 20V, 3.2A, Sot-23, Channel Type:N Channel, Drain Source Voltage Vds:20V, Continuous Drain Current Id:3.2A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:4.5V, Gate Source Threshold Voltage Max:1.2V Rohs Compliant: Yes |Onsemi NTR4501NT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4914 |
|
$0.0830 / $0.0910 | Buy Now |
|
DISTI #
26AM4350
|
Newark | Nfet Sot23 20V 3.2A 80Mo Rohs Compliant: Yes |Onsemi NTR4501NT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0610 | Buy Now |
|
DISTI #
NTR4501NT1GOSCT-ND
|
DigiKey | MOSFET N-CH 20V 3.2A SOT23-3 Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
112051 In Stock |
|
Buy Now | |
|
DISTI #
NTR4501NT1G
|
Avnet Americas | Power MOSFET, N Channel, 20 V, 3.2 A, 80 Milliohms, SOT-23 (TO-236), 3 Pins, Surface Mount - Tape and Reel (Alt: NTR4501NT1G) RoHS: Compliant Min Qty: 16667 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 15000 Partner Stock |
|
$0.0483 / $0.0493 | Buy Now |
|
DISTI #
06R3476
|
Avnet Americas | Power MOSFET, N Channel, 20 V, 3.2 A, 80 Milliohms, SOT-23 (TO-236), 3 Pins, Surface Mount - Product that comes on tape, but is not reeled (Alt: 06R3476) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 55 Weeks, 2 Days Container: Ammo Pack | 4914 Partner Stock |
|
$0.1300 / $0.2160 | Buy Now |
|
DISTI #
863-NTR4501NT1G
|
Mouser Electronics | MOSFETs 20V 3.2A N-Channel RoHS: Compliant | 212059 |
|
$0.0620 / $0.2900 | Buy Now |
|
DISTI #
V36:1790_07309970
|
Arrow Electronics | Trans MOSFET N-CH 20V 3.2A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks Date Code: 2422 | Americas - 204000 |
|
$0.0551 / $0.0740 | Buy Now |
|
DISTI #
E02:0323_00018900
|
Arrow Electronics | Trans MOSFET N-CH 20V 3.2A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks Date Code: 2514 | Europe - 33000 |
|
$0.0559 / $0.0751 | Buy Now |
|
DISTI #
V72:2272_07309970
|
Arrow Electronics | Trans MOSFET N-CH 20V 3.2A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2446 Container: Cut Strips | Americas - 13870 |
|
$0.0747 / $0.2784 | Buy Now |
Part Details for NTR4501NT1G
NTR4501NT1G CAD Models
NTR4501NT1G Part Data Attributes
|
|
NTR4501NT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NTR4501NT1G
onsemi
Single N-Channel Power MOSFET 20V, 3.2A, 80mΩ, SOT-23 (TO-236) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-23 (TO-236) 3 LEAD | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 318 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 3.2 A | |
| Drain-source On Resistance-Max | 0.08 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 50 pF | |
| JEDEC-95 Code | TO-236 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.25 W | |
| Pulsed Drain Current-Max (IDM) | 10 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Turn-off Time-Max (toff) | 30 ns | |
| Turn-on Time-Max (ton) | 37 ns |
Alternate Parts for NTR4501NT1G
This table gives cross-reference parts and alternative options found for NTR4501NT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NTR4501NT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NTR4501NT1 | Rochester Electronics LLC | Check for Price | 3.2A, 20V, 0.08ohm, N-CHANNEL, Si, POWER, MOSFET, TO-236AB, CASE 318-08, TO-236, 3 PIN | NTR4501NT1G vs NTR4501NT1 |
NTR4501NT1G Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation at high temperatures.
-
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
-
Yes, the NTR4501NT1G can be used in high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout, decoupling, and filtering to minimize electromagnetic interference (EMI).
-
Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Also, follow proper handling and storage procedures to prevent ESD damage.
