NTMFS4C06NT1G Information
NTMFS4C06NT1G by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NTMFS4C06NT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51Y4999
|
Newark | Mosfet Transistor, N Channel, 69 A, 30 V, 0.0032 Ohm, 10 V, 2.1 V Rohs Compliant: Yes |Onsemi NTMFS4C06NT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1274 |
|
$0.3810 / $0.5800 | Buy Now |
|
DISTI #
60W1789
|
Newark | N Channel Mosfet, 30V, Dfn-5, Channel Type:N Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:69A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:2.1V, Product Range:-Rohs Compliant: Yes |Onsemi NTMFS4C06NT1G RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1990 / $0.2650 | Buy Now |
|
DISTI #
NTMFS4C06NT1GOSCT-ND
|
DigiKey | MOSFET N-CH 30V 11A/69A 5DFN Min Qty: 1 Lead time: 53 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2173 In Stock |
|
$0.2675 / $0.9100 | Buy Now |
|
DISTI #
NTMFS4C06NT1G
|
Avnet Americas | Power MOSFET, N Channel, 30 V, 69 A, 0.0032 ohm, DFN, Surface Mount - Tape and Reel (Alt: NTMFS4C06NT1G) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 53 Weeks, 0 Days Container: Reel | 1500 |
|
$0.2425 / $0.2475 | Buy Now |
|
DISTI #
863-NTMFS4C06NT1G
|
Mouser Electronics | MOSFETs NFET SO8FL 30V 69A 4MOHM RoHS: Compliant | 71856 |
|
$0.2570 / $0.7200 | Buy Now |
|
DISTI #
V72:2272_07290457
|
Arrow Electronics | Trans MOSFET N-CH 30V 20A 5-Pin SO-FL EP T/R Min Qty: 1 Package Multiple: 1 Lead time: 53 Weeks Date Code: 2427 Container: Cut Strips | Americas - 3000 |
|
$0.2518 / $0.3940 | Buy Now |
|
|
Onlinecomponents.com | NTMFS4C06NT1G N-channel MOSFET Transistor, 69 A, 30 V, 8-Pin SO-8FL RoHS: Compliant | 0 |
|
$0.1857 / $0.2108 | Buy Now |
|
DISTI #
86013083
|
Verical | Trans MOSFET N-CH 30V 20A 5-Pin SO-FL EP T/R Min Qty: 828 Package Multiple: 1 Date Code: 2201 | Americas - 9000 |
|
$0.4530 | Buy Now |
|
DISTI #
83147718
|
Verical | Trans MOSFET N-CH 30V 20A 5-Pin SO-FL EP T/R Min Qty: 24 Package Multiple: 1 Date Code: 2427 | Americas - 3000 |
|
$0.2518 / $0.3408 | Buy Now |
|
|
Rochester Electronics | NTMFS4C06N - Small Signal Field-Effect Transistor, 11A, 30V, N-Channel, MOSFET RoHS: Compliant Status: Active Min Qty: 1 | 9000 |
|
$0.2247 / $0.3624 | Buy Now |
Part Details for NTMFS4C06NT1G

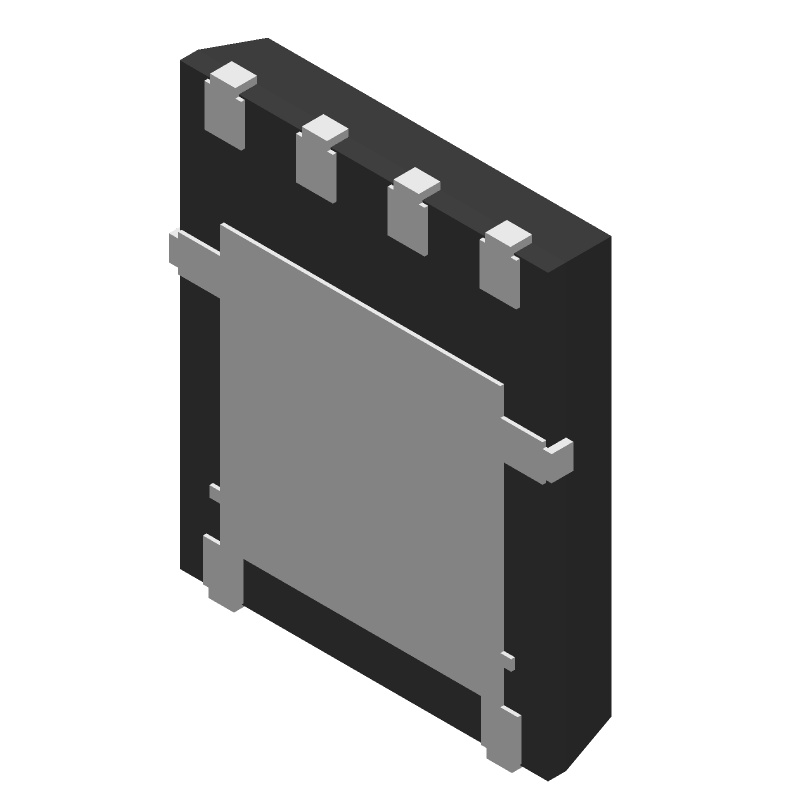

NTMFS4C06NT1G CAD Models
NTMFS4C06NT1G Part Data Attributes
|
|
NTMFS4C06NT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NTMFS4C06NT1G
onsemi
Single N-Channel Power MOSFET 30V, 69A, 4mΩ, DFN5 5X6, 1.27P (SO 8FL), 1500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DFN5 5X6, 1.27P (SO 8FL) | |
| Pin Count | 5 | |
| Manufacturer Package Code | 488AA | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 53 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Avalanche Energy Rating (Eas) | 68 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 11 A | |
| Drain-source On Resistance-Max | 0.004 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 40 pF | |
| JESD-30 Code | R-PDSO-F6 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 30.5 W | |
| Pulsed Drain Current-Max (IDM) | 200 A | |
| Surface Mount | YES | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
NTMFS4C06NT1G Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for NTMFS4C06NT1G is a 5x5mm QFN package with a 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask design guidelines.
-
To ensure reliable operation of NTMFS4C06NT1G in high-temperature environments, it is recommended to follow the thermal management guidelines provided in the datasheet, including proper heat sinking and thermal interface material selection.
-
The maximum allowed voltage on the gate of NTMFS4C06NT1G is 12V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
Yes, NTMFS4C06NT1G can be used in switching applications, but it is essential to follow the recommended switching frequency and duty cycle guidelines to avoid overheating and ensure reliable operation.
-
To protect NTMFS4C06NT1G from electrostatic discharge (ESD), it is recommended to follow proper ESD handling and storage procedures, including the use of ESD-safe materials and equipment.
