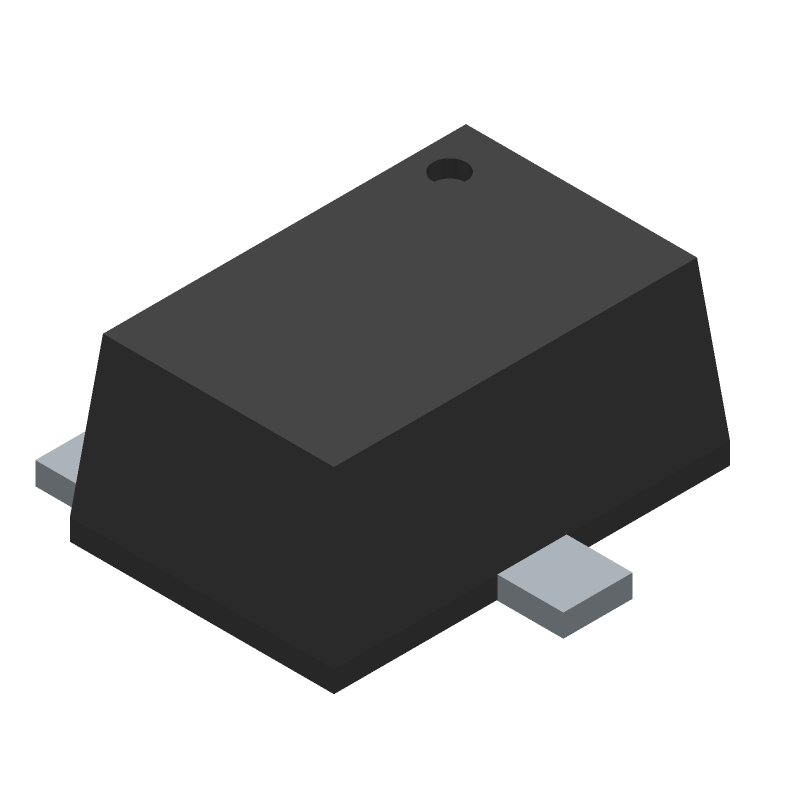

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTK3139PT5G by onsemi
Results Overview of NTK3139PT5G by onsemi
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Space Technology
Smart Cities
Aerospace and Defense
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
NTK3139PT5G Information
NTK3139PT5G by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NTK3139PT5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC3887
|
Newark | Mosfet, P-Ch, -20V, -0.78A, Sot-723, Transistor Polarity:P Channel, Continuous Drain Current Id:-780Ma, Drain Source Voltage Vds:-20V, On Resistance Rds(On):0.38Ohm, Rds(On) Test Voltage Vgs:-4.5V, Threshold Voltage Vgs:-1.2V, Power Rohs Compliant: Yes |Onsemi NTK3139PT5G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2652 |
|
$0.1510 / $0.5000 | Buy Now |
|
DISTI #
27M2738
|
Newark | P Ch Mosfet, -20V, 780Ma, Sot-723, Continuous Drain Current Id:-780Ma, Drain Source Voltage Vds:-20V, Filter Terminals:Surface Mount, No. Of Pins:3, On Resistance Rds(On):380Mohm, Operating Temperature Max:150°C Rohs Compliant: Yes |Onsemi NTK3139PT5G RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0340 / $0.0450 | Buy Now |
|
DISTI #
NTK3139PT5GOSCT-ND
|
DigiKey | MOSFET P-CH 20V 660MA SOT723 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
14527 In Stock |
|
$0.0705 / $0.4700 | Buy Now |
|
DISTI #
NTK3139PT5G
|
Avnet Americas | Trans MOSFET P-CH 20V 0.78A 3-Pin SOT-723 T/R - Tape and Reel (Alt: NTK3139PT5G) RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 552000 Partner Stock |
|
$0.0679 / $0.0693 | Buy Now |
|
DISTI #
NTK3139PT5G
|
Avnet Americas | Trans MOSFET P-CH 20V 0.78A 3-Pin SOT-723 T/R - Tape and Reel (Alt: NTK3139PT5G) RoHS: Compliant Min Qty: 24000 Package Multiple: 8000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.0639 / $0.0653 | Buy Now |
|
DISTI #
863-NTK3139PT5G
|
Mouser Electronics | MOSFETs 20V/6V P CH T1 780mA 0.4 RoHS: Compliant | 11443 |
|
$0.0730 / $0.4700 | Buy Now |
|
|
Onlinecomponents.com | Single P−Channel Power MOSFET with ESD Protection -20V -780mA 480mΩ RoHS: Compliant | Alternative Product Available |
|
$0.0288 / $0.0334 | Buy Now |
|
DISTI #
86008457
|
Verical | Trans MOSFET P-CH 20V 0.78A 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 3142 Package Multiple: 1 Date Code: 2301 | Americas - 4858 |
|
$0.1194 | Buy Now |
|
|
Rochester Electronics | NTK3139P - Power Field-Effect Transistor, 0.66A, 20V, 0.48ohm, P-Channel, MOSFET RoHS: Compliant Status: Active Min Qty: 1 | 8900 |
|
$0.0592 / $0.0955 | Buy Now |
|
DISTI #
NTK3139PT5G
|
Richardson RFPD | POWER MOSFET TRANSISTOR RoHS: Compliant Min Qty: 24000 | 0 |
|
$0.0300 | Buy Now |
Part Details for NTK3139PT5G
NTK3139PT5G CAD Models
NTK3139PT5G Part Data Attributes
|
|
NTK3139PT5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NTK3139PT5G
onsemi
Single P−Channel Power MOSFET with ESD Protection -20V -780mA 480mΩ, SOT-723 3 LEAD, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-723 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 631AA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
