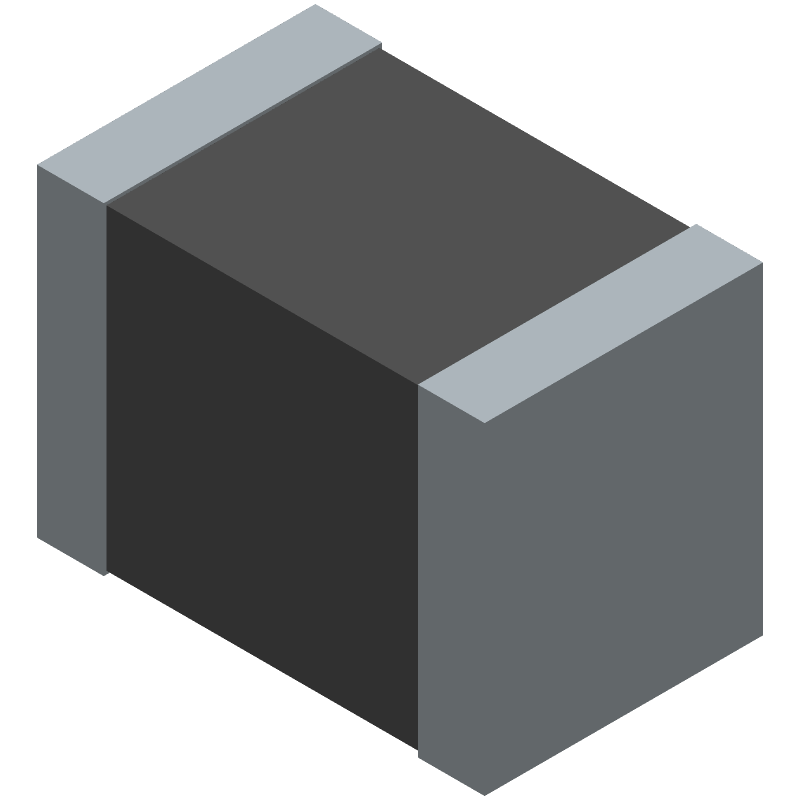

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTHS0805N02N5001JP by Vishay Intertechnologies
Results Overview of NTHS0805N02N5001JP by Vishay Intertechnologies
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NTHS0805N02N5001JP Information
NTHS0805N02N5001JP by Vishay Intertechnologies is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for NTHS0805N02N5001JP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
NTHS0805N02N5001JP
|
Avnet Americas | - Tape and Reel (Alt: NTHS0805N02N5001JP) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
71-NTHS0805N02N5001J
|
Mouser Electronics | NTC Thermistors 5Kohms 5% RoHS: Not Compliant | 0 |
|
$0.4020 / $1.0100 | Order Now |
Part Details for NTHS0805N02N5001JP
NTHS0805N02N5001JP CAD Models
NTHS0805N02N5001JP Part Data Attributes
|
|
NTHS0805N02N5001JP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
NTHS0805N02N5001JP
Vishay Intertechnologies
NTC Thermistor, 5000ohm, Surface Mount, CHIP, 0805, HALOGEN FREE
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP, 0805, HALOGEN FREE | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| JESD-609 Code | e0 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 0.21 W | |
| Rated Temperature | 25 °C | |
| Resistance | 5000 Ω | |
| Resistor Type | NTC THERMISTOR | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermal Sensitivity Index | 3486 K | |
| Thermistor Application | TEMPERATURE COMPENSATION | |
| Tolerance | 5% |
