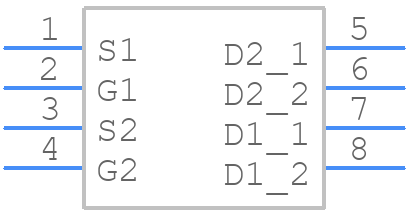

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTHD4502NT1G by Rochester Electronics LLC
Results Overview of NTHD4502NT1G by Rochester Electronics LLC
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NTHD4502NT1G Information
NTHD4502NT1G by Rochester Electronics LLC is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Part Details for NTHD4502NT1G
NTHD4502NT1G CAD Models
NTHD4502NT1G Part Data Attributes
|
|
NTHD4502NT1G
Rochester Electronics LLC
Buy Now
Datasheet
|
Compare Parts:
NTHD4502NT1G
Rochester Electronics LLC
2200mA, 30V, 2 CHANNEL, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, LEAD FREE, CASE 1206A-03, CHIPFET-8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROCHESTER ELECTRONICS LLC | |
| Package Description | LEAD FREE, CASE 1206A-03, CHIPFET-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CASE 1206A-03 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Rochester Electronics | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 2.2 A | |
| Drain-source On Resistance-Max | 0.085 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 25 pF | |
| JESD-30 Code | R-XDSO-C8 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | NOT SPECIFIED | |
| Number of Elements | 2 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Qualification Status | COMMERCIAL | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
