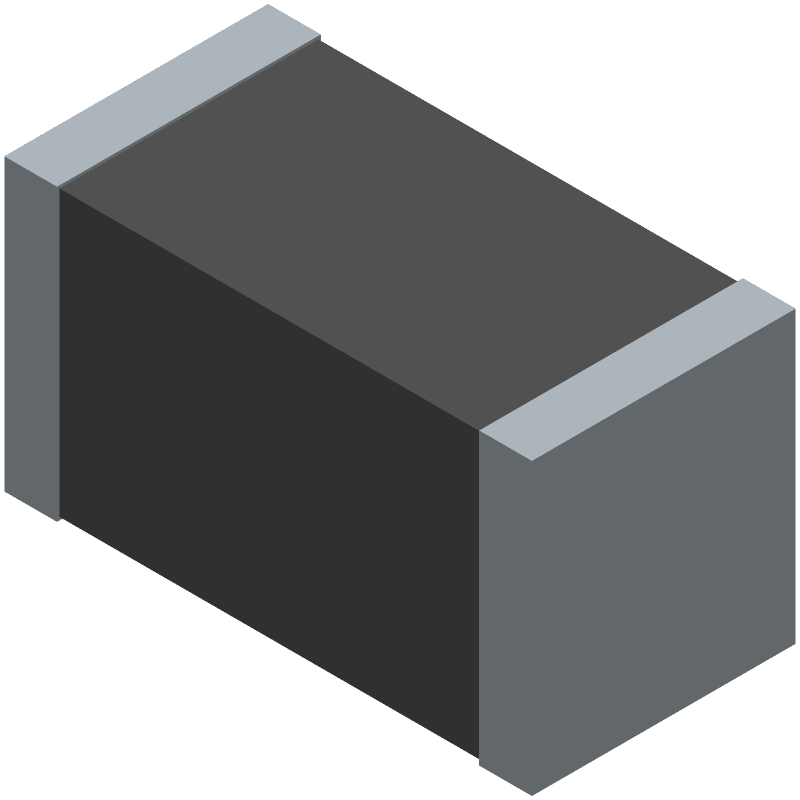

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTCSP104BF473FT1SX by TDK Corporation
Results Overview of NTCSP104BF473FT1SX by TDK Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NTCSP104BF473FT1SX Information
NTCSP104BF473FT1SX by TDK Corporation is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for NTCSP104BF473FT1SX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-NTCSP104BF473FT1SXCT-ND
|
DigiKey | NTC,47K,1%,0402,AEC-Q200,EPOXY Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
18817 In Stock |
|
$0.0600 / $0.1400 | Buy Now |
|
DISTI #
NTCSP104BF473FT1SX
|
Avnet Americas | Thermistor NTC 47kOhm 1% 2-Pin 0402 Paper T/R - Tape and Reel (Alt: NTCSP104BF473FT1SX) Min Qty: 10000 Package Multiple: 10000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0597 / $0.0609 | Buy Now |
|
DISTI #
810-NTCSP104BF473FTX
|
Mouser Electronics | NTC Thermistors 0402 47Kohm 1% AEC-Q200 EPOXY RoHS: Compliant | 9436 |
|
$0.0600 / $0.1200 | Buy Now |
|
DISTI #
NTCSP104BF473FT1SX
|
Avnet Abacus | Thermistor NTC 47kOhm 1 2Pin 0402 Paper TR (Alt: NTCSP104BF473FT1SX) RoHS: Compliant Min Qty: 30000 Package Multiple: 10000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for NTCSP104BF473FT1SX
NTCSP104BF473FT1SX CAD Models
NTCSP104BF473FT1SX Part Data Attributes
|
|
NTCSP104BF473FT1SX
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
NTCSP104BF473FT1SX
TDK Corporation
NTC Thermistor, 47000ohm, Surface Mount, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | TDK | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.5 mm | |
| Package Length | 1 mm | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, 7 INCH | |
| Rated Power Dissipation (P) | 0.125 W | |
| Rated Temperature | 25 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 47000 Ω | |
| Resistor Type | NTC THERMISTOR | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermal Sensitivity Index | 4098 K | |
| Thermistor Application | TEMPERATURE SENSING | |
| Tolerance | 1% |
