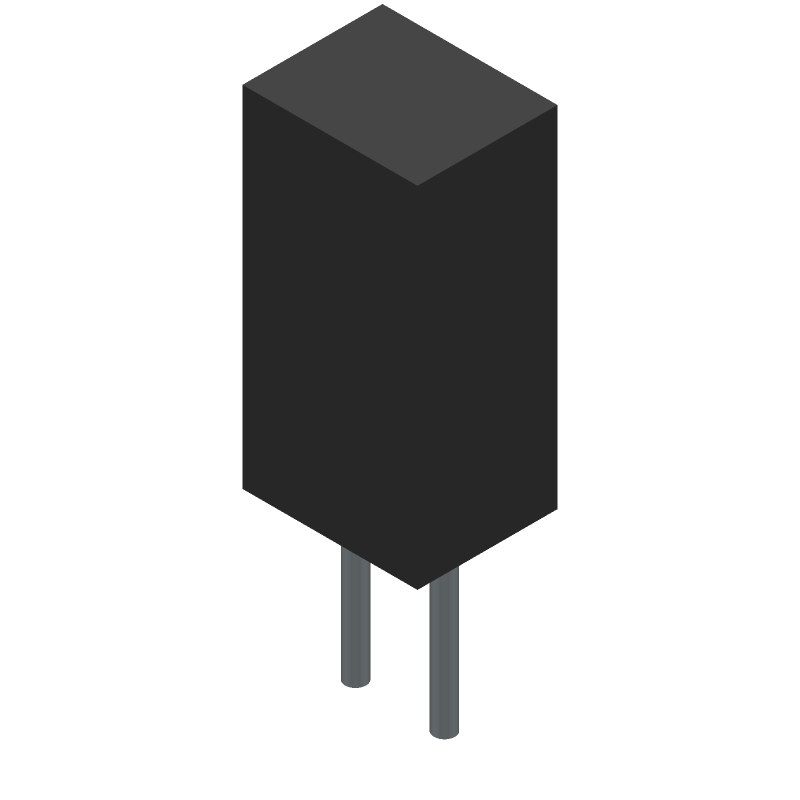

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTCLE100E3104JB0 by Vishay Intertechnologies
Results Overview of NTCLE100E3104JB0 by Vishay Intertechnologies
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NTCLE100E3104JB0 Information
NTCLE100E3104JB0 by Vishay Intertechnologies is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for NTCLE100E3104JB0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98K8279
|
Newark | Thermistor, 100K, 5%, Ntc, Rad, Zero Power Resistance At 25°C:100Kohm, Product Range:Ntcle Series, Thermistor Mounting:Through Hole, Beta Value (K):4190K, Thermistor Case Style:-, Thermistor Terminals:Radial Leaded, Operating Rohs Compliant: Yes |Vishay NTCLE100E3104JB0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 35472 |
|
$0.3430 / $0.4960 | Buy Now |
|
DISTI #
81AC9547
|
Newark | Ntc Cu 0.6 Ld Coded 100K 5% Bulk E3 Rohs Compliant: Yes |Vishay NTCLE100E3104JB0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2058 |
|
$0.3090 / $0.6040 | Buy Now |
|
DISTI #
NTCLE100E3104JB0
|
Avnet Americas | NTC CU 0.6 LD CODED 100K 5% BULK E3 - Bulk (Alt: NTCLE100E3104JB0) RoHS: Compliant Min Qty: 500 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 2058 |
|
$0.2198 / $0.2380 | Buy Now |
|
DISTI #
594-2381-640-63104
|
Mouser Electronics | NTC Thermistors 100Kohms 5% Radial RoHS: Compliant | 9815 |
|
$0.2540 / $0.3900 | Buy Now |
|
DISTI #
E02:0323_00039300
|
Arrow Electronics | Thermistor NTC 100K Ohm 5% 2-Pin Radial 4190K -5 to -4.5 Bulk Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2334 | Europe - 3575 |
|
$0.2245 / $0.2960 | Buy Now |
|
DISTI #
V36:1790_09471968
|
Arrow Electronics | Thermistor NTC 100K Ohm 5% 2-Pin Radial 4190K -5 to -4.5 Bulk Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2310 | Americas - 400 |
|
$0.2232 / $0.2961 | Buy Now |
|
|
Future Electronics | NTCLE100E3 100 kOhm ±5 % Radial NTC Thermistor RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Container: Bulk | 2000Bulk |
|
$0.2450 / $0.2550 | Buy Now |
|
|
Future Electronics | NTCLE100E3 100 kOhm ±5 % Radial NTC Thermistor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 500 Lead time: 12 Weeks Container: Box | 0Box |
|
$0.2450 / $0.2550 | Buy Now |
|
DISTI #
69887427
|
Verical | Thermistor NTC 100K Ohm 5% 2-Pin Radial 4190K -5 to -4.5 Bulk Min Qty: 27 Package Multiple: 1 Date Code: 2334 | Americas - 3564 |
|
$0.2239 / $0.2751 | Buy Now |
|
DISTI #
85573055
|
Verical | Thermistor NTC 100K Ohm 5% 2-Pin Radial 4190K -5 to -4.5 Bulk Min Qty: 26 Package Multiple: 1 Date Code: 2310 | Americas - 400 |
|
$0.2232 | Buy Now |
Part Details for NTCLE100E3104JB0
NTCLE100E3104JB0 CAD Models
NTCLE100E3104JB0 Part Data Attributes
|
|
NTCLE100E3104JB0
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
NTCLE100E3104JB0
Vishay Intertechnologies
NTC Thermistor, 100000ohm, Through Hole Mount, RADIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 9 mm | |
| Package Length | 3.3 mm | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 55 °C | |
| Reference Standard | CUL; UL | |
| Resistance | 100000 Ω | |
| Resistor Type | NTC THERMISTOR | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Thermal Sensitivity Index | 4190 K | |
| Thermistor Application | TEMPERATURE SENSING | |
| Tolerance | 5% |
Alternate Parts for NTCLE100E3104JB0
This table gives cross-reference parts and alternative options found for NTCLE100E3104JB0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NTCLE100E3104JB0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NTCLE100E3104JT1 | Vishay Intertechnologies | Check for Price | NTC Thermistor, 100000ohm, Through Hole Mount, RADIAL LEADED | NTCLE100E3104JB0 vs NTCLE100E3104JT1 |
NTCLE100E3104JB0 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) for 10 seconds, with a peak temperature of 240°C (464°F) for 5 seconds.
-
Handle the thermistor by the body, avoiding touching the leads or glass portion to prevent damage. Use gloves and an anti-static wrist strap to prevent ESD damage.
-
The maximum power rating is 50 mW, but it's recommended to derate the power to 20-30 mW for reliable operation.
-
Yes, but ensure the thermistor is properly sealed or coated to prevent moisture ingress. The device is designed to operate in a relative humidity of 40% to 90%.
-
Calibrate the thermistor using a precision temperature source and a multimeter. Measure the resistance at multiple temperatures and create a calibration curve or use a look-up table.
