NTCG163JF103FT1A Information
NTCG163JF103FT1A by TDK Corporation is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for NTCG163JF103FT1A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-NTCG163JF103FT1ACT-ND
|
DigiKey | NTC,10K,1%,0603,125C,ECO Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3436 In Stock |
|
$0.0558 / $0.1300 | Buy Now |
|
DISTI #
810-NTCG163JF103FT1A
|
Mouser Electronics | NTC Thermistors NTC,10K,1%,0603,125C,ECO RoHS: Compliant | 6786 |
|
$0.0590 / $0.1100 | Buy Now |
|
DISTI #
NTCG163JF103FT1A
|
Avnet Abacus | (Alt: NTCG163JF103FT1A) RoHS: Not Compliant Min Qty: 16000 Package Multiple: 4000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for NTCG163JF103FT1A

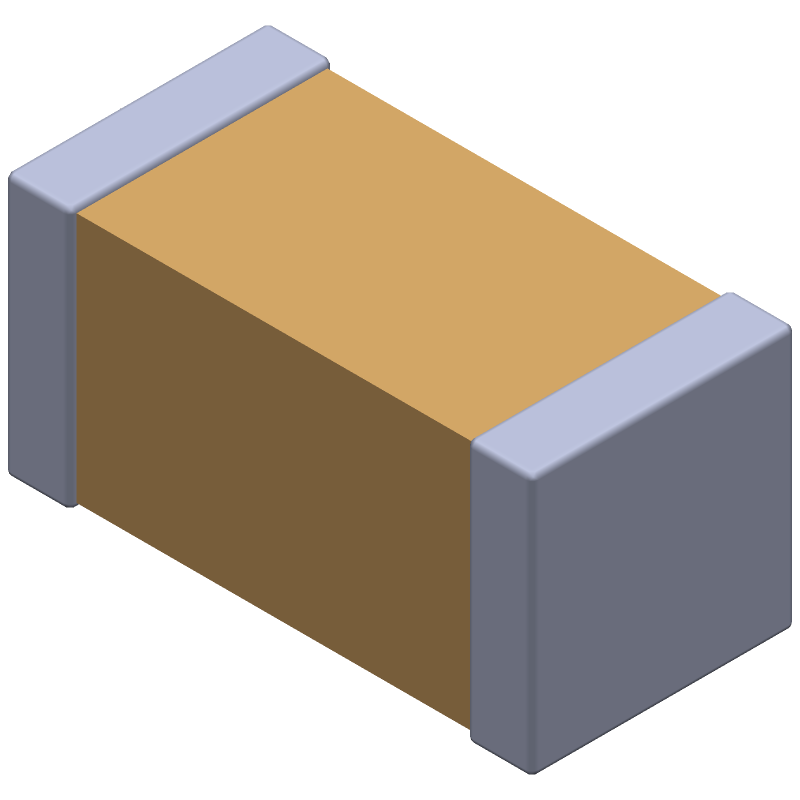

NTCG163JF103FT1A CAD Models
NTCG163JF103FT1A Part Data Attributes
|
|
NTCG163JF103FT1A
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
NTCG163JF103FT1A
TDK Corporation
NTC Thermistor, 10000ohm, Surface Mount, CHIP
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | TDK | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Package Height | 0.8 mm | |
| Package Length | 1.6 mm | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 25 °C | |
| Reference Standard | UL | |
| Resistance | 10000 Ω | |
| Resistor Type | NTC THERMISTOR | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermal Sensitivity Index | 3435 K | |
| Tolerance | 1% |
NTCG163JF103FT1A Frequently Asked Questions (FAQ)
-
According to TDK's general guidelines, the recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's always best to consult the specific soldering profile recommended by the manufacturer or to perform soldering tests to ensure the thermistor's reliability.
-
To prevent damage, it's recommended to bend the leads gently and avoid excessive twisting or pulling. Use a soft, non-abrasive material to grip the leads, and avoid using excessive force or torque. It's also a good idea to use a thermistor with a lead-free coating to reduce the risk of lead damage.
-
The maximum operating voltage for the NTCG163JF103FT1A thermistor is not explicitly stated in the datasheet. However, as a general guideline, TDK recommends that the maximum operating voltage for their thermistors should not exceed 100V. It's always best to consult with the manufacturer or a qualified engineer to determine the suitable operating voltage for your specific application.
-
To ensure accurate temperature measurement, it's essential to follow proper installation and calibration procedures. This includes ensuring good thermal contact between the thermistor and the target surface, using a suitable thermal interface material, and calibrating the thermistor according to the manufacturer's guidelines. Additionally, consider using a thermistor with a high accuracy rating, such as ±1% or better, to minimize measurement errors.
-
The NTCG163JF103FT1A thermistor is a high-quality component designed for general-purpose applications. While it's a reliable component, it may not meet the stringent requirements of high-reliability applications, such as aerospace or medical devices. For such applications, it's recommended to consult with the manufacturer or a qualified engineer to select a thermistor that meets the specific reliability and performance requirements.
