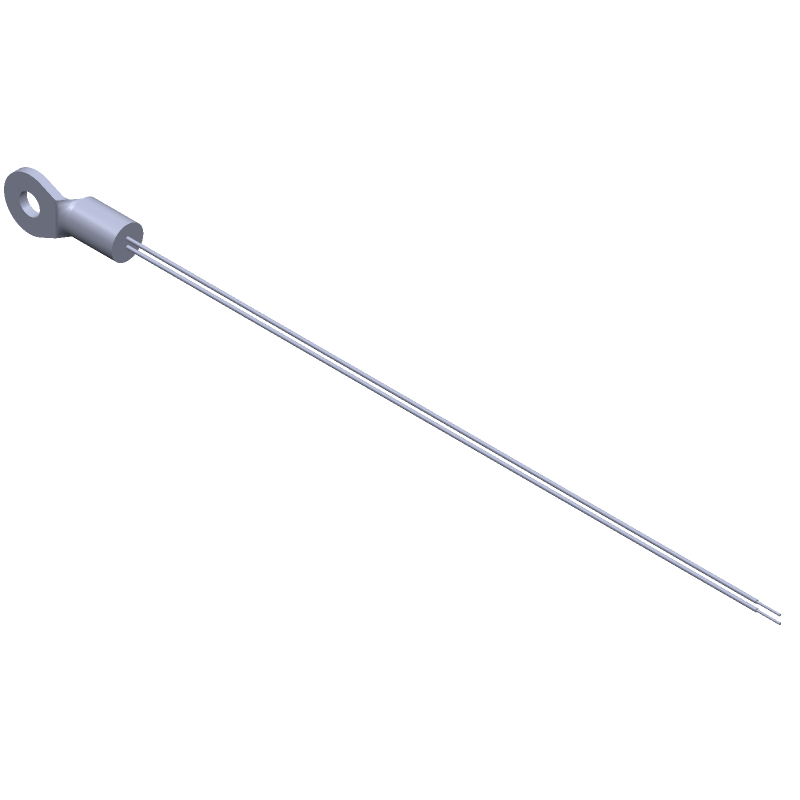

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTCALUG03A103GCA by Vishay Intertechnologies
Results Overview of NTCALUG03A103GCA by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NTCALUG03A103GCA Information
NTCALUG03A103GCA by Vishay Intertechnologies is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for NTCALUG03A103GCA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15AJ2727
|
Newark | Ntc Thermistor, Aec-Q200, 10K, Free Hang Rohs Compliant: Yes |Vishay NTCALUG03A103GCA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 153 |
|
$1.1100 / $2.1400 | Buy Now |
|
DISTI #
NTCALUG03A103GCA
|
Avnet Americas | NTC Mini Lug 10K 2% Connector A - Bulk (Alt: NTCALUG03A103GCA) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$1.1520 / $1.1956 | Buy Now |
|
DISTI #
594-NTCALUG03A103GCA
|
Mouser Electronics | NTC Thermistors 10K/2% 3984K/0.5% AEC-Q200 70mm RoHS: Compliant | 2595 |
|
$1.2000 / $1.9000 | Buy Now |
|
DISTI #
WNTC2173
|
Rutronik | NTC MINI LUG 10K 2% 0,1W B=3984 0,5% RoHS: Compliant Min Qty: 500 Package Multiple: 500 Container: Bulk |
Stock DE - 1000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$1.2400 / $1.3400 | Buy Now |
|
DISTI #
NTCALUG03A103GCA
|
Avnet Abacus | NTC Mini Lug 10K 2 Connector A (Alt: NTCALUG03A103GCA) RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Resistors | 1136 |
|
RFQ |
Part Details for NTCALUG03A103GCA
NTCALUG03A103GCA CAD Models
NTCALUG03A103GCA Part Data Attributes
|
|
NTCALUG03A103GCA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
NTCALUG03A103GCA
Vishay Intertechnologies
NTC Thermistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Mounting Feature | CHASSIS MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 5.5 mm | |
| Package Length | 11.5 mm | |
| Package Style | Radial | |
| Packing Method | Bulk | |
| Rated Power Dissipation (P) | 0.1 W | |
| Reference Standard | CUL; UL | |
| Resistance | 10000 Ω | |
| Resistor Type | NTC THERMISTOR | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | FLEXIBLE WIRE | |
| Thermal Sensitivity Index | 3984 K | |
| Thermistor Application | TEMPERATURE SENSING | |
| Tolerance | 2% |
NTCALUG03A103GCA Frequently Asked Questions (FAQ)
-
The recommended storage temperature for NTCALUG03A103GCA is -40°C to 150°C.
-
Yes, NTCALUG03A103GCA is designed to operate in humid environments, but it's recommended to follow the recommended storage and operating conditions to ensure reliability.
-
The thermal response time of NTCALUG03A103GCA is typically around 10-15 seconds, but this can vary depending on the specific application and environmental conditions.
-
Yes, NTCALUG03A103GCA is designed to withstand high vibrations, but it's recommended to follow the recommended mounting and installation procedures to ensure reliability.
-
The maximum power rating of NTCALUG03A103GCA is 250 mW, but it's recommended to follow the recommended operating conditions to ensure reliability.
