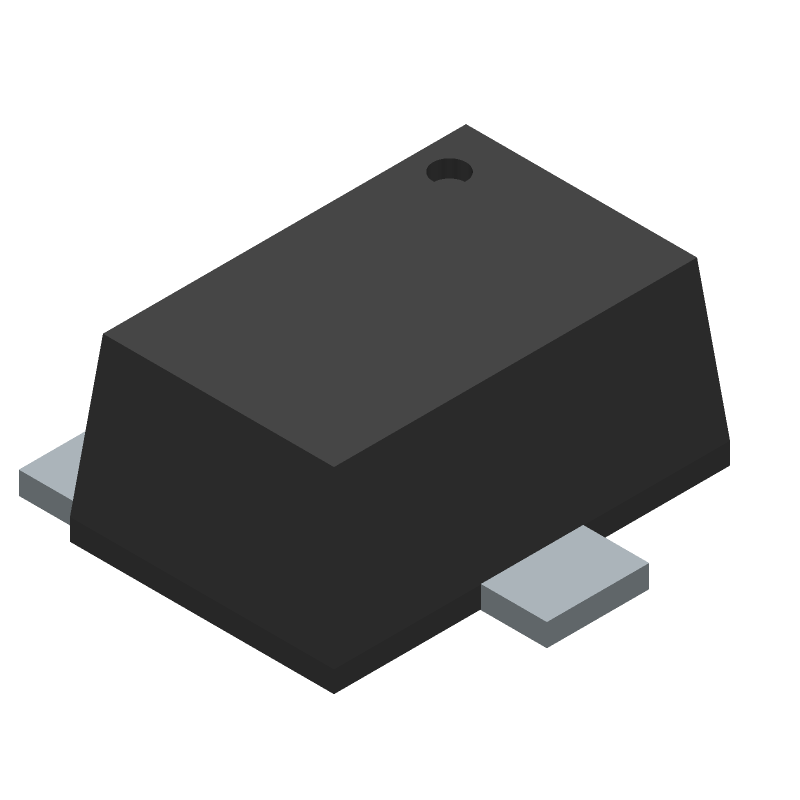

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NSVMMBT2222AM3T5G by onsemi
Results Overview of NSVMMBT2222AM3T5G by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
NSVMMBT2222AM3T5G Information
NSVMMBT2222AM3T5G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NSVMMBT2222AM3T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AC0999
|
Newark | Npn Bipolar Transistor/ Reel Rohs Compliant: Yes |Onsemi NSVMMBT2222AM3T5G RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0380 / $0.0470 | Buy Now |
|
DISTI #
NSVMMBT2222AM3T5GOSCT-ND
|
DigiKey | TRANS NPN 40V 0.6A SOT-723 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
15517 In Stock |
|
$0.0364 / $0.3000 | Buy Now |
|
DISTI #
NSVMMBT2222AM3T5G
|
Avnet Americas | Transistor GP BJT NPN 40V 600mA 3-Pin SOT-723 T/R - Tape and Reel (Alt: NSVMMBT2222AM3T5G) RoHS: Compliant Min Qty: 24000 Package Multiple: 8000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0364 / $0.0388 | Buy Now |
|
DISTI #
863-NSVMMBT2222AM3T5
|
Mouser Electronics | Bipolar Transistors - BJT SS SOT-723 GP TRANSISTOR RoHS: Compliant | 18560 |
|
$0.0400 / $0.2200 | Buy Now |
|
DISTI #
P40:2555_27262720
|
Arrow Electronics | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2340 | Europe - 16000 |
|
$0.0334 / $0.2784 | Buy Now |
|
DISTI #
V72:2272_18357533
|
Arrow Electronics | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2211 Container: Cut Strips | Americas - 10893 |
|
$0.0391 / $0.0574 | Buy Now |
|
|
Onlinecomponents.com | NPN Bipolar Transistor RoHS: Compliant | 0 |
|
$0.0343 / $0.0399 | Buy Now |
|
DISTI #
86007685
|
Verical | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 6073 Package Multiple: 1 Date Code: 1801 | Americas - 57055 |
|
$0.0618 | Buy Now |
|
DISTI #
61704610
|
Verical | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 151 Package Multiple: 1 Date Code: 2211 | Americas - 10893 |
|
$0.0391 / $0.0505 | Buy Now |
|
DISTI #
87892156
|
Verical | Trans GP BJT NPN 40V 0.6A 640mW 3-Pin SOT-723 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 828 Package Multiple: 1 Date Code: 2143 | Americas - 9186 |
|
$0.0244 / $0.0321 | Buy Now |
Part Details for NSVMMBT2222AM3T5G
NSVMMBT2222AM3T5G CAD Models
NSVMMBT2222AM3T5G Part Data Attributes
|
|
NSVMMBT2222AM3T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NSVMMBT2222AM3T5G
onsemi
NPN Bipolar Transistor, SOT-723-3, 8000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-723-3 | |
| Manufacturer Package Code | 631AA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Base Capacitance-Max | 8 pF | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 75 | |
| JESD-30 Code | R-PDSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.64 W | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 285 ns | |
| Turn-on Time-Max (ton) | 35 ns | |
| VCEsat-Max | 1 V |
NSVMMBT2222AM3T5G Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to ensure good heat dissipation.
-
Use a heat sink with a thermal interface material, ensure good airflow, and follow the recommended PCB layout. Also, consider derating the device's power dissipation at high temperatures.
-
The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage.
-
Yes, the NSVMMBT2222AM3T5G is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout, decoupling, and snubber circuits to minimize ringing and EMI.
-
Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Also, follow proper handling and storage procedures to prevent ESD damage.
