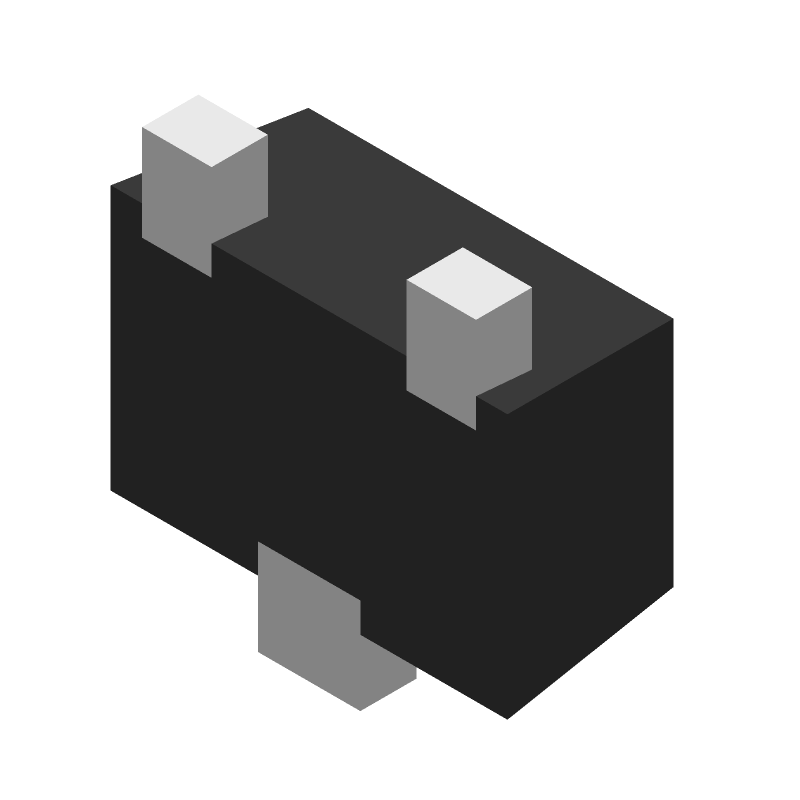

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NSV2SC5658M3T5G by onsemi
Results Overview of NSV2SC5658M3T5G by onsemi
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NSV2SC5658M3T5G Information
NSV2SC5658M3T5G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NSV2SC5658M3T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86X0920
|
Newark | Npn Bipolar Transistor/ Reel |Onsemi NSV2SC5658M3T5G RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0420 / $0.0600 | Buy Now |
|
DISTI #
488-NSV2SC5658M3T5GCT-ND
|
DigiKey | TRANS NPN 50V 0.15A SOT-723 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
36237 In Stock |
|
$0.0405 / $0.3200 | Buy Now |
|
DISTI #
NSV2SC5658M3T5G
|
Avnet Americas | - Tape and Reel (Alt: NSV2SC5658M3T5G) RoHS: Compliant Min Qty: 16000 Package Multiple: 8000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0405 / $0.0432 | Buy Now |
|
DISTI #
863-NSV2SC5658M3T5G
|
Mouser Electronics | Bipolar Transistors - BJT GENERAL PURPOSE RoHS: Compliant | 20356 |
|
$0.0400 / $0.2200 | Buy Now |
|
DISTI #
88049222
|
Verical | Trans GP BJT NPN 50V 0.15A 260mW Automotive AEC-Q101 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 1401 | Americas - 5515 |
|
$35.8375 | Buy Now |
|
|
Rochester Electronics | 2SC5658 - Small Signal Bipolar Transistor RoHS: Compliant Status: Active Min Qty: 1 | 5515 |
|
$17.7800 / $28.6700 | Buy Now |
|
DISTI #
SMC-NSV2SC5658M3T5G
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 264115 |
|
RFQ | |
|
DISTI #
NSV2SC5658M3T5G
|
Avnet Silica | (Alt: NSV2SC5658M3T5G) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for NSV2SC5658M3T5G
NSV2SC5658M3T5G CAD Models
NSV2SC5658M3T5G Part Data Attributes
|
|
NSV2SC5658M3T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NSV2SC5658M3T5G
onsemi
NPN Bipolar Transistor, SOT-723-3, 8000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-723-3 | |
| Package Description | SOT-723, 3 PIN | |
| Manufacturer Package Code | 631AA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.15 A | |
| Collector-Base Capacitance-Max | 2 pF | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 120 | |
| JESD-30 Code | R-PDSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.26 W | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 180 MHz | |
| VCEsat-Max | 0.4 V |
NSV2SC5658M3T5G Frequently Asked Questions (FAQ)
-
For optimal performance, it's recommended to follow the PCB layout guidelines provided in the onsemi application note AND9405/D, which includes recommendations for thermal management, such as using a thermal pad and vias to dissipate heat.
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal protection circuits and heat sinks to prevent overheating.
-
The NSV2SC5658M3T5G has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
-
The NSV2SC5658M3T5G is not specifically designed for radiation-hardened or high-reliability applications. If you need a radiation-hardened or high-reliability device, consider using a different part from onsemi's radiation-hardened or high-reliability product lines.
-
Follow the recommended soldering and assembly techniques outlined in the onsemi application note AND8193/D, which includes guidelines for reflow soldering, wave soldering, and manual assembly.
