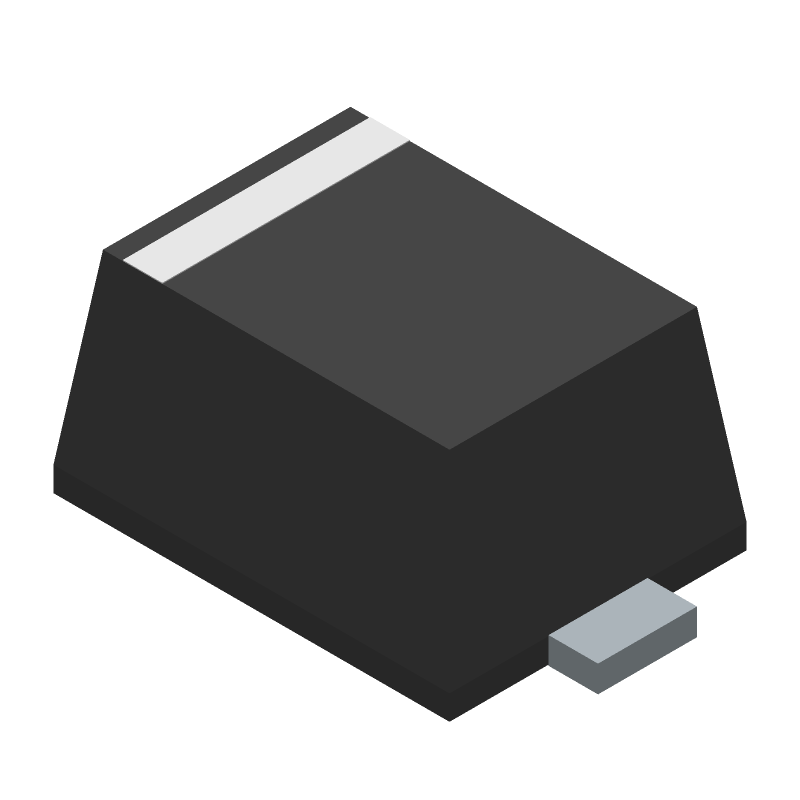

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NSR0140P2T5G by onsemi
Results Overview of NSR0140P2T5G by onsemi
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
NSR0140P2T5G Information
NSR0140P2T5G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for NSR0140P2T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58M9865
|
Newark | Small Signal Schottky Diode, Single, 30 V, 350 Ma, 350 Mv, 30 Ma, 125 C Rohs Compliant: Yes |Onsemi NSR0140P2T5G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4249 |
|
$0.1020 / $0.2880 | Buy Now |
|
DISTI #
27M2677
|
Newark | Schottky Rectifier, 70Ma, 30V, Sod-923, Full Reel, Diode Configuration:Single, Repetitive Peak Reverse Voltage:30V, Average Forward Current:70Ma, Forward Voltage Max:350Mv, Forward Surge Current:500Ma, Operating Temperature Max:125°Crohs Compliant: Yes |Onsemi NSR0140P2T5G RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0590 | Buy Now |
|
DISTI #
NSR0140P2T5GOSCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 70MA SOD923 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
34984 In Stock |
|
$0.0486 / $0.0515 | Buy Now |
|
DISTI #
863-NSR0140P2T5G
|
Mouser Electronics | Schottky Diodes & Rectifiers SCHOTTKY DIODE RoHS: Compliant | 36556 |
|
$0.0480 / $0.2600 | Buy Now |
|
DISTI #
V72:2272_07305382
|
Arrow Electronics | Diode Schottky 40V 0.07A 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2442 Container: Cut Strips | Americas - 14800 |
|
$0.0458 / $0.2460 | Buy Now |
|
DISTI #
E02:0323_00078066
|
Arrow Electronics | Diode Schottky 40V 0.07A 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks Date Code: 2511 | Europe - 8000 |
|
$0.0523 | Buy Now |
|
|
Future Electronics | NSR0140P2T5G Series 30 V 500 mA Surface Mount Schottky Barrier Diode - SOD-923 RoHS: Compliant pbFree: Yes Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks Container: Reel | 32000Reel |
|
$0.0469 / $0.0495 | Buy Now |
|
|
Future Electronics | NSR0140P2T5G Series 30 V 500 mA Surface Mount Schottky Barrier Diode - SOD-923 RoHS: Compliant pbFree: Yes Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks Container: Reel | 8000Reel |
|
$0.0469 / $0.0495 | Buy Now |
|
|
Future Electronics | NSR0140P2T5G Series 30 V 500 mA Surface Mount Schottky Barrier Diode - SOD-923 RoHS: Compliant pbFree: Yes Min Qty: 16000 Package Multiple: 8000 Lead time: 10 Weeks Container: Reel | 0Reel |
|
$0.0469 / $0.0495 | Buy Now |
|
|
Onlinecomponents.com | NSR0140P2T5G Series 30 V 500 mA Surface Mount Schottky Barrier Diode - SOD-923 RoHS: Compliant |
16000 In Stock |
|
$0.0364 / $0.0416 | Buy Now |
Part Details for NSR0140P2T5G
NSR0140P2T5G CAD Models
NSR0140P2T5G Part Data Attributes
|
|
NSR0140P2T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NSR0140P2T5G
onsemi
100 mA, 30 V, Low IR Schottky Diode, SOD-923, 1.0x0.6, 0.43 Max Height, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-923, 1.0x0.6, 0.43 Max Height | |
| Package Description | LEAD FREE, MINIATURE, PLASTIC, CASE 514AA-01, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 514AB | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 30 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.35 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.07 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.1 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Test Voltage | 30 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
NSR0140P2T5G Frequently Asked Questions (FAQ)
-
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, thermal vias can be used to connect the thermal pad to the copper area.
-
Ensure that the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Also, consider the power dissipation and thermal resistance of the device when designing the system.
-
The device has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. A minimum of 2kV HBM (Human Body Model) and 200V MM (Machine Model) ESD protection is recommended.
-
Yes, the NSR0140P2T5G is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and assembly guidelines to ensure the device operates within its specifications.
-
The recommended soldering conditions are: peak temperature of 260°C, soldering time of 10-30 seconds, and a maximum of 3 reflows. It's essential to follow the recommended soldering profile to prevent damage to the device.
