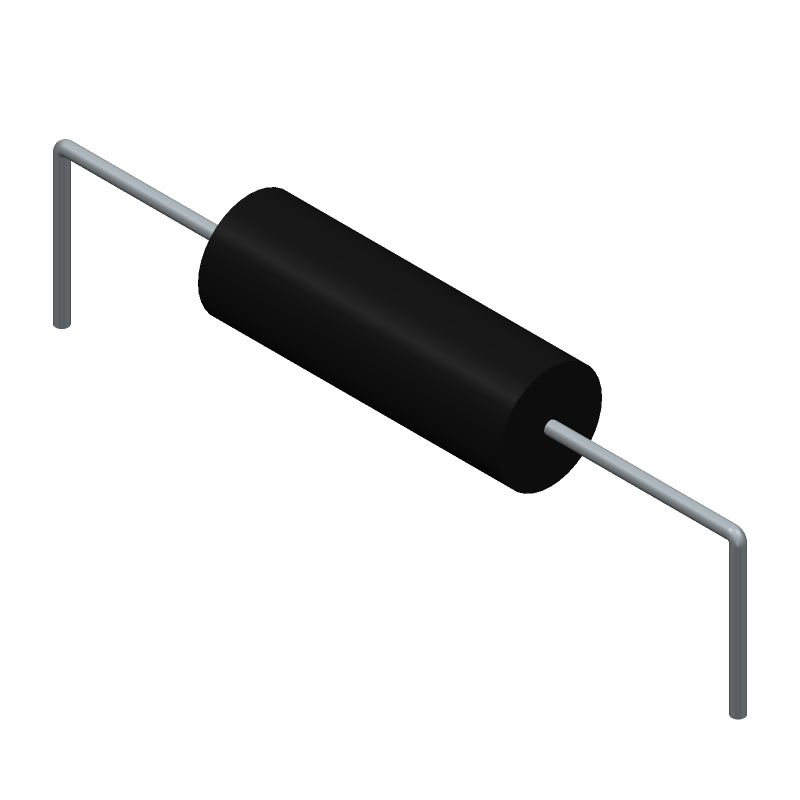

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NS005R5000FB12 by Vishay Intertechnologies
Results Overview of NS005R5000FB12 by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NS005R5000FB12 Information
NS005R5000FB12 by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for NS005R5000FB12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60C5047
|
Newark | Ns-5 .5 1% B12 |Vishay NS005R5000FB12 RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.8100 / $5.4400 | Buy Now |
|
DISTI #
NS005R5000FB12
|
Avnet Americas | NS-5 .5 1% B12 - Bulk (Alt: NS005R5000FB12) RoHS: Not Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$3.7529 / $4.6752 | Buy Now |
|
DISTI #
71-NS5-0.5
|
Mouser Electronics | Wirewound Resistors - Through Hole 5watts 0.5ohms 1% Non Inductive RoHS: Not Compliant | 76 |
|
$4.1800 / $13.6000 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 1800 |
|
$2.7552 / $6.7200 | Buy Now |
|
|
Quest Components | 1440 |
|
$3.1500 / $9.0000 | Buy Now | |
|
DISTI #
NS005R5000FB12
|
TTI | Wirewound Resistors - Through Hole 5watts 0.5ohms 1% Non Inductive Min Qty: 2 Package Multiple: 1 Container: Bulk |
Americas - 71 In Stock |
|
$3.1300 / $3.9300 | Buy Now |
|
DISTI #
NS005R5000FB12
|
Avnet Abacus | NS5 5 1 B12 (Alt: NS005R5000FB12) RoHS: Not Compliant Min Qty: 100 Package Multiple: 100 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Resistors | 81 |
|
RFQ |
Part Details for NS005R5000FB12
NS005R5000FB12 CAD Models
NS005R5000FB12 Part Data Attributes
|
|
NS005R5000FB12
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
NS005R5000FB12
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | PRECISION, NON-INDUCTIVE | |
| Construction | Tubular | |
| JESD-609 Code | e0 | |
| Lead Diameter | 1.02 mm | |
| Lead Length | 38.1 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 250 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Diameter | 7.92 mm | |
| Package Length | 22.23 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 5 W | |
| Rated Temperature | 25 °C | |
| Resistance | 0.5 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 90 ppm/°C | |
| Terminal Finish | Tin/Lead (Sn60Pb40) | |
| Terminal Shape | WIRE | |
| Tolerance | 1% | |
| Working Voltage | 1.5811 V |
Alternate Parts for NS005R5000FB12
This table gives cross-reference parts and alternative options found for NS005R5000FB12. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NS005R5000FB12, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RS005R5000FE12 | Vishay Intertechnologies | $3.3064 | Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT | NS005R5000FB12 vs RS005R5000FE12 |
| RS005R5000FE73 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT | NS005R5000FB12 vs RS005R5000FE73 |
| ALSR05R5000FE07 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED, GREEN | NS005R5000FB12 vs ALSR05R5000FE07 |
| NS005R5000FS73 | Vishay Dale | Check for Price | RESISTOR, WIRE WOUND, 5 W, 1 %, 90 ppm, 0.5 ohm, THROUGH HOLE MOUNT, AXIAL LEADED | NS005R5000FB12 vs NS005R5000FS73 |
| RW74UR500FS73 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Wire Wound, | NS005R5000FB12 vs RW74UR500FS73 |
| ALSR05R5000FE12 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED, GREEN | NS005R5000FB12 vs ALSR05R5000FE12 |
| RS005R5000FS73 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED | NS005R5000FB12 vs RS005R5000FS73 |
| RS005R5000FS70 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1.5811V, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED | NS005R5000FB12 vs RS005R5000FS70 |
| NS005R5000FS73 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Wire Wound, 5W, 0.5ohm, 1% +/-Tol, 90ppm/Cel, Through Hole Mount, AXIAL LEADED | NS005R5000FB12 vs NS005R5000FS73 |
