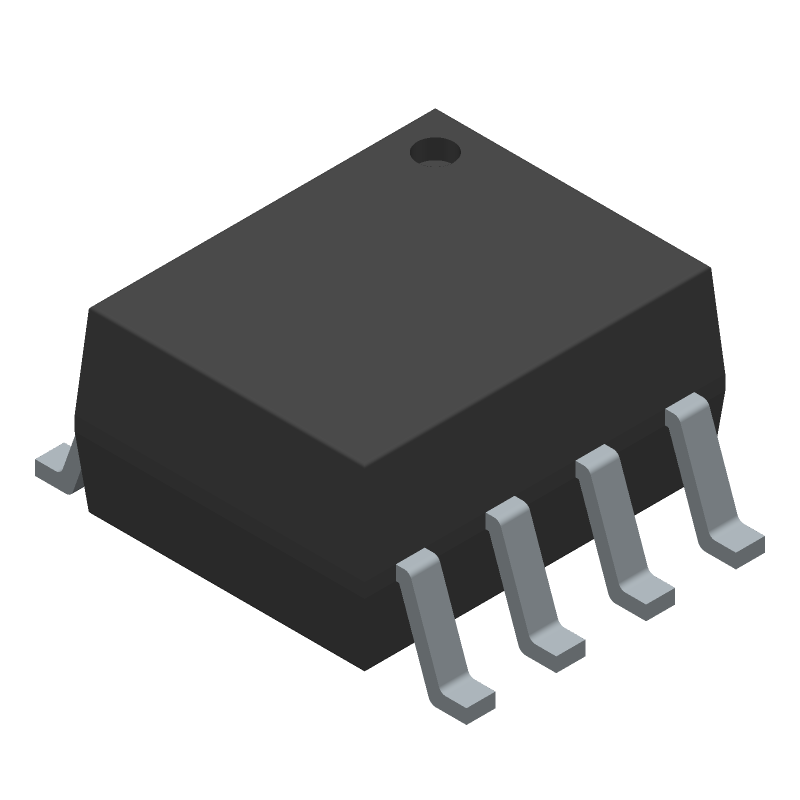

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NPP-301A-700AT by Amphenol Corporation
Results Overview of NPP-301A-700AT by Amphenol Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
NPP-301A-700AT Information
NPP-301A-700AT by Amphenol Corporation is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for NPP-301A-700AT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65024054
|
Verical | Board Mount Pressure Sensor 0kPa to 700kPa Absolute 8-Pin SO T/R RoHS: Compliant Min Qty: 300 Package Multiple: 300 Date Code: 2224 | Americas - 300 |
|
$6.6820 / $7.2410 | Buy Now |
|
DISTI #
NPP-301A-700AT
|
Avnet Abacus | - Tape and Reel (Alt: NPP-301A-700AT) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
NPP-301A-700AT
|
Avnet Asia | Pressure Sensor 0.04V to 0.08V 0Psi to 100Psi Absolute 8-Pin SOIC T/R (Alt: NPP-301A-700AT) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 8 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
New Advantage Corporation | Non Ported - Tape & reel, 100 PSIA , T&R RoHS: Compliant Min Qty: 1 Package Multiple: 2000 | 2000 |
|
$6.7500 | Buy Now |
Part Details for NPP-301A-700AT
NPP-301A-700AT CAD Models
NPP-301A-700AT Part Data Attributes
|
|
NPP-301A-700AT
Amphenol Corporation
Buy Now
Datasheet
|
Compare Parts:
NPP-301A-700AT
Amphenol Corporation
Peizoresistive Sensor, Absolute, 40-80mV, Rectangular, Surface Mount, PLASTIC, SOP-8
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL CORP | |
| Package Description | PLASTIC, SOP-8 | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Amphenol | |
| Additional Feature | IT IS HAVING 0.20 PERCENT STATIC ACCURACY AND OFFSET 10 MV/V | |
| Body Breadth | 4.1 mm | |
| Body Height | 2.8 mm | |
| Body Length or Diameter | 5.1 mm | |
| Housing | PLASTIC | |
| Linearity (%) | 0.2 % | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Range | 40-80mV | |
| Output Type | VOLTAGE OUTPUT | |
| Package Shape/Style | RECTANGULAR | |
| Port Type | HOLE | |
| Pressure Sensing Mode | ABSOLUTE | |
| Sensors/Transducers Type | PRESSURE SENSOR,PIEZORESISTIVE | |
| Supply Voltage-Max | 10 V | |
| Surface Mount | YES | |
| Termination Type | SOLDER |
NPP-301A-700AT Frequently Asked Questions (FAQ)
-
The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the NPP-301A-700AT connector.
-
Yes, the NPP-301A-700AT connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
-
Yes, the NPP-301A-700AT connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's essential to follow the recommended derating guidelines for extreme conditions.
-
The NPP-301A-700AT connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
-
Yes, the NPP-301A-700AT connector is designed to be compatible with other connectors from Amphenol Corporation, including the NPP-301A-700BT and NPP-301A-700CT connectors.
