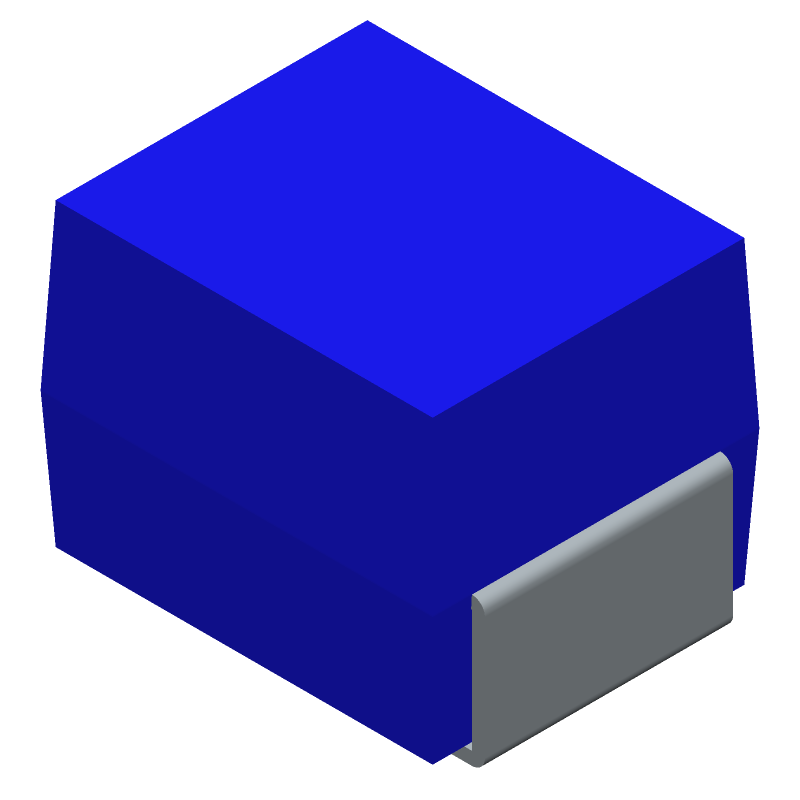

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NLV32T-121J-PF by TDK Corporation
Results Overview of NLV32T-121J-PF by TDK Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
NLV32T-121J-PF Information
NLV32T-121J-PF by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| GQM2195G2E121JB12D | Murata Manufacturing Co Ltd | High Q Chip Multilayer Ceramic Capacitors (＞100Vdc) for General Purpose | |
| GRM0115C1E121JE01L | Murata Manufacturing Co Ltd | Chip Multilayer Ceramic Capacitors for General Purpose |
Price & Stock for NLV32T-121J-PF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-174386-1-ND
|
DigiKey | FIXED IND 120UH 70MA 11 OHM SMD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
805 In Stock |
|
$0.0674 / $0.1800 | Buy Now |
|
DISTI #
NLV32T-121J-PF
|
Avnet Americas | Wirewound Inductor, 120 uH, 11 Ohm, ? 5%, 10 MHz, 70 mA, 1210 [3225 Metric] - Tape and Reel (Alt: NLV32T-121J-PF) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0598 / $0.0663 | Buy Now |
|
DISTI #
810-NLV32T-121J-PF
|
Mouser Electronics | RF Inductors - SMD SUGGESTED ALTERNATE NLV32T-121J-EF RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
V72:2272_06597650
|
Arrow Electronics | Inductor General Purpose Molded/Unshielded Wirewound 120uH 5% 796KHz 20Q-Factor Ferrite 0.07A 11Ohm DCR 1210 T/R Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1734 Container: Cut Strips | Americas - 5 |
|
$0.0145 | Buy Now |
|
|
Bristol Electronics | Min Qty: 15 | 1165 |
|
$0.1066 / $0.3555 | Buy Now |
|
DISTI #
NLV32T-121J-PF
|
TTI | RF Inductors - SMD SUGGESTED ALTERNATE NLV32T-121J-EF pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.0670 / $0.0730 | Buy Now |
|
DISTI #
NLV32T-121J-PF
|
Avnet Abacus | Wirewound Inductor 120 uH 11 Ohm 5 10 MHz 70 mA 1210 3225 Metric (Alt: NLV32T-121J-PF) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 25 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for NLV32T-121J-PF
NLV32T-121J-PF CAD Models
NLV32T-121J-PF Part Data Attributes
|
|
NLV32T-121J-PF
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
NLV32T-121J-PF
TDK Corporation
General Purpose Inductor, 120uH, 5%, 1 Element, Ferrite-Core, SMD, 1210, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 1210 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 11 Ω | |
| Inductance-Nom (L) | 120 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e2 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 2.2 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 2.5 mm | |
| Packing Method | TR, 7 Inch | |
| Quality Factor-Min (at L-nom) | 20 | |
| Rated Current-Max | 0.07 A | |
| Self Resonance Frequency | 10 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Finish | TIN COPPER | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | L BEND | |
| Test Frequency | 0.796 MHz | |
| Tolerance | 5% |
