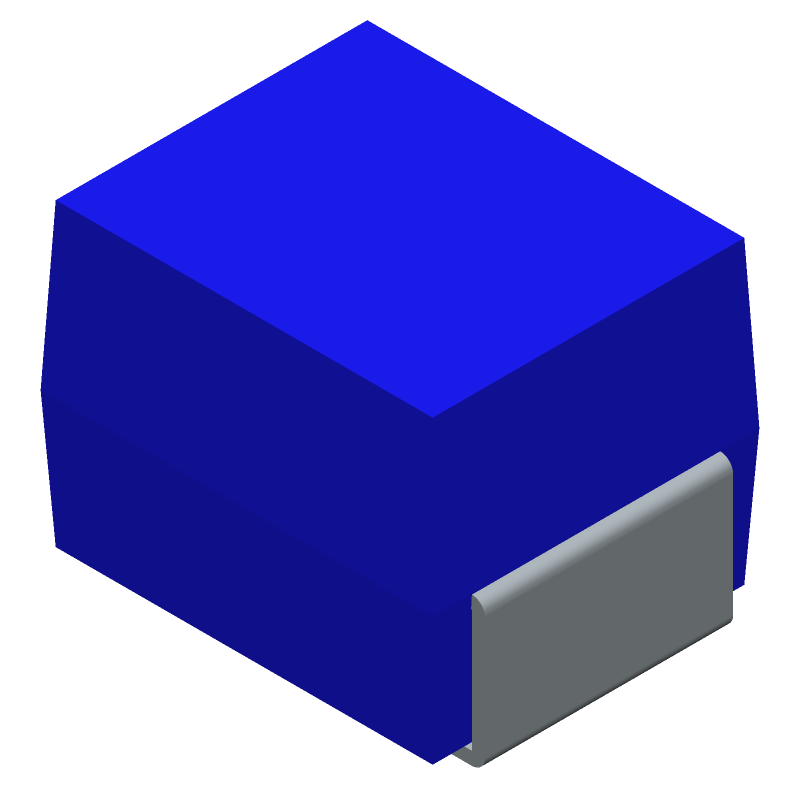

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NLCV32T-1R0M-EFRD by TDK Corporation
Results Overview of NLCV32T-1R0M-EFRD by TDK Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
NLCV32T-1R0M-EFRD Information
NLCV32T-1R0M-EFRD by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DFE322520F-1R0M=P2 | Murata Manufacturing Co Ltd | Fixed IND 1uH 6700mA NONAUTO | |
| DFE32CAH1R0MR0L | Murata Manufacturing Co Ltd | Fixed IND 1uH 5900mA POWRTRN | |
| DFE2016CKA-1R0M=P2 | Murata Manufacturing Co Ltd | Fixed IND 1uH 1800mA NONAUTO |
Price & Stock for NLCV32T-1R0M-EFRD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-174380-1-ND
|
DigiKey | FIXED IND 1UH 1.7A 66 MOHM SMD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2460 In Stock |
|
$0.0825 / $0.2100 | Buy Now |
|
DISTI #
NLCV32T-1R0M-EFRD
|
Avnet Americas | Wirewound Inductor, 1 uH, 55 Milliohm, ? 20%, 1.7 A, 1210 [3225 Metric] - Tape and Reel (Alt: NLCV32T-1R0M-EFRD) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0733 / $0.0812 | Buy Now |
|
DISTI #
810-NLCV32T1R0MEFRD
|
Mouser Electronics | RF Inductors - SMD 1.0uH 0.055ohm 1.7A 3.2x2.5mm AEC-Q200 RoHS: Compliant | 7060 |
|
$0.0950 / $0.2100 | Buy Now |
|
|
Bristol Electronics | 150 |
|
RFQ | ||
|
DISTI #
NLCV32T-1R0M-EFRD
|
TTI | RF Inductors - SMD 1.0uH 0.055ohm 1.7A 3.2x2.5mm AEC-Q200 pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 2000 In Stock |
|
$0.0920 / $0.1040 | Buy Now |
|
DISTI #
NLCV32T-1R0M-EFRD
|
Avnet Abacus | Wirewound Inductor 1 uH 55 Milliohm 20 17 A 1210 3225 Metric (Alt: NLCV32T-1R0M-EFRD) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 25 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for NLCV32T-1R0M-EFRD
NLCV32T-1R0M-EFRD CAD Models
NLCV32T-1R0M-EFRD Part Data Attributes
|
|
NLCV32T-1R0M-EFRD
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
NLCV32T-1R0M-EFRD
TDK Corporation
General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, CHIP, 1210
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 1310 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.055 Ω | |
| Inductance-Nom (L) | 1 µH | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 2.2 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 2.5 mm | |
| Packing Method | TR, Blister Plastic, 7 Inch | |
| Rated Current-Max | 1.7 A | |
| Reference Standard | AEC-Q200 | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Special Feature | DC RESISTANCE IS MEASURED AT 20% TOLERANCE | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | L BEND | |
| Test Frequency | 7.96 MHz | |
| Tolerance | 20% |
NLCV32T-1R0M-EFRD Frequently Asked Questions (FAQ)
-
The recommended land pattern for the NLCV32T-1R0M-EFRD inductor is a rectangular pad with a size of 3.2mm x 2.5mm, with a 0.5mm gap between the pads.
-
The NLCV32T-1R0M-EFRD inductor has a maximum operating temperature of 125°C. Ensure good airflow around the component, and consider using a heat sink or thermal pad if the inductor will be operating near its maximum current rating.
-
The self-resonant frequency of the NLCV32T-1R0M-EFRD inductor is typically around 100-150 MHz, but this can vary depending on the specific application and PCB layout.
-
While the NLCV32T-1R0M-EFRD inductor is suitable for high-frequency applications, its performance may degrade above 10 MHz. For frequencies above 10 MHz, consider using a specialized high-frequency inductor or consulting with a TDK application engineer.
-
To ensure reliability in a high-vibration environment, ensure the inductor is properly secured to the PCB using a suitable adhesive or mechanical fastening method. Additionally, consider using a vibration-resistant coating or potting compound to further enhance reliability.
