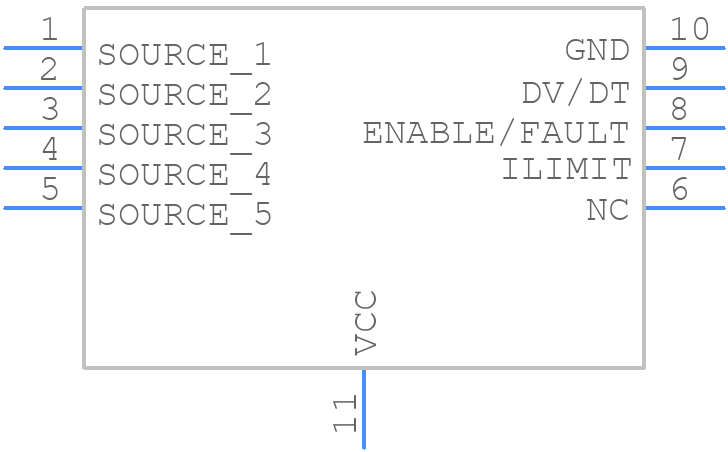

Part Symbol
-
Footprint
-

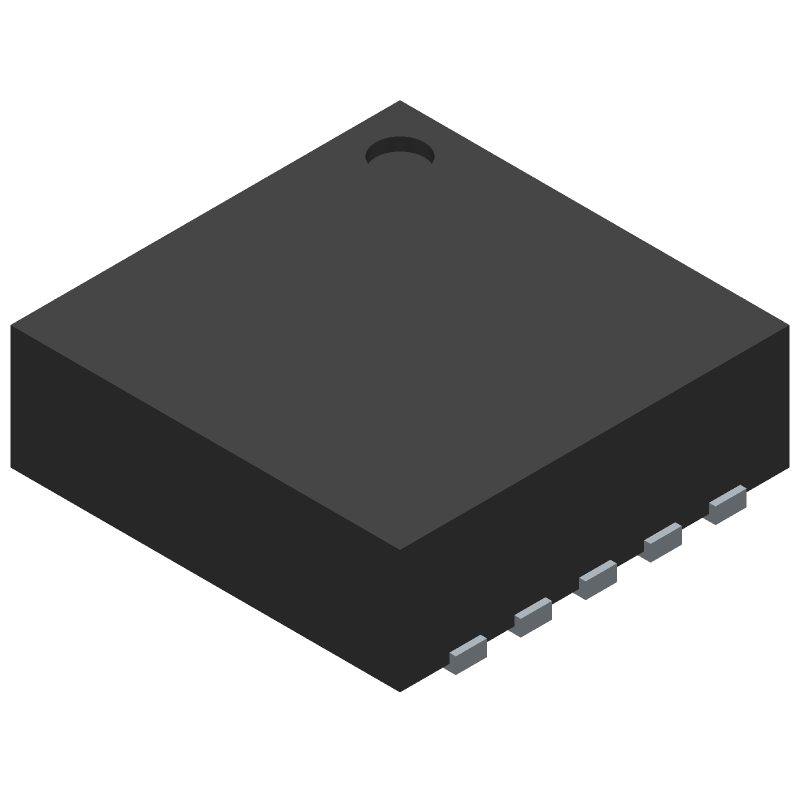

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NIS5135MN2TXG by onsemi
Results Overview of NIS5135MN2TXG by onsemi
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
NIS5135MN2TXG Information
NIS5135MN2TXG by onsemi is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NIS5135MN2TXG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AC4724
|
Newark | Hot Swap Controllers, 18V, Dfn-10, Controller Applications:Hard Drives, Mother Board Power Management, Input Voltage:-, Supply Voltage Min:-, Supply Voltage Max:18V, Controller Ic Case Style:Dfn, No. Of Pins:10Pins, Operating Rohs Compliant: Yes |Onsemi NIS5135MN2TXG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 50 |
|
$0.1510 | Buy Now |
|
DISTI #
71R6688
|
Newark | No. Of Channels:1Channels, Supply Voltage Min:9V, Supply Voltage Max:18V, Ic Case/Package:Dfn, No. Of Pins:10Pins, Power Switch:Internal, Ic Mounting:Surface Mount, Ic Function:Electronic Fuse, Operating Temperature Min:-40°C Rohs Compliant: Yes |Onsemi NIS5135MN2TXG RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4690 / $0.6090 | Buy Now |
|
DISTI #
NIS5135MN2TXGCT-ND
|
DigiKey | IC ELECTRONIC FUSE 10DFN Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5631 In Stock |
|
$0.4610 / $1.9200 | Buy Now |
|
DISTI #
NIS5135MN2TXG
|
Avnet Americas | Hot Swap Controller 1-CH 18V 10-Pin DFN EP T/R - Tape and Reel (Alt: NIS5135MN2TXG) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.4339 / $0.4728 | Buy Now |
|
DISTI #
863-NIS5135MN2TXG
|
Mouser Electronics | Resettable Fuses - PPTC 5.0V Electronic Fuse RoHS: Compliant | 0 |
|
Order Now | |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.4578 / $0.9590 | Buy Now |
|
DISTI #
87637304
|
Verical | Electronic Fuse for 5V Line RoHS: Compliant Min Qty: 481 Package Multiple: 1 Date Code: 2201 | Americas - 9000 |
|
$0.7806 | Buy Now |
|
|
Bristol Electronics | 1811 |
|
RFQ | ||
|
|
Rochester Electronics | NIS5135 - Power Supply Support Circuit, Fixed, 1 Channel RoHS: Compliant Status: Not Recommended for New Designs Min Qty: 1 | 9000 |
|
$0.3872 / $0.6245 | Buy Now |
|
DISTI #
NIS5135MN2TXG
|
Richardson RFPD | POWER FUSE RoHS: Compliant Min Qty: 3000 | 0 |
|
$0.4600 | Buy Now |
Part Details for NIS5135MN2TXG
NIS5135MN2TXG CAD Models
NIS5135MN2TXG Part Data Attributes
|
|
NIS5135MN2TXG
onsemi
Buy Now
Datasheet
|
Compare Parts:
NIS5135MN2TXG
onsemi
5.0 V Electronic Fuse, eFuse, DFN10, 3x3, 0.5P, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DFN10, 3x3, 0.5P | |
| Pin Count | 10 | |
| Manufacturer Package Code | 485C | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | S-XDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC10,.12,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 10 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
NIS5135MN2TXG Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling at high temperatures.
-
A 10uF to 22uF X7R or X5R ceramic capacitor is recommended, placed as close to the VIN pin as possible, to filter out input voltage noise and ripple.
-
Use a shielded inductor, keep the layout compact, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Also, ensure proper grounding and decoupling.
-
The maximum allowed voltage on the EN pin is 6V, exceeding which may damage the device. Ensure the voltage on the EN pin does not exceed the recommended maximum rating.
