Power Circuits / Power Supply Modules / NID100-15
Datasheets

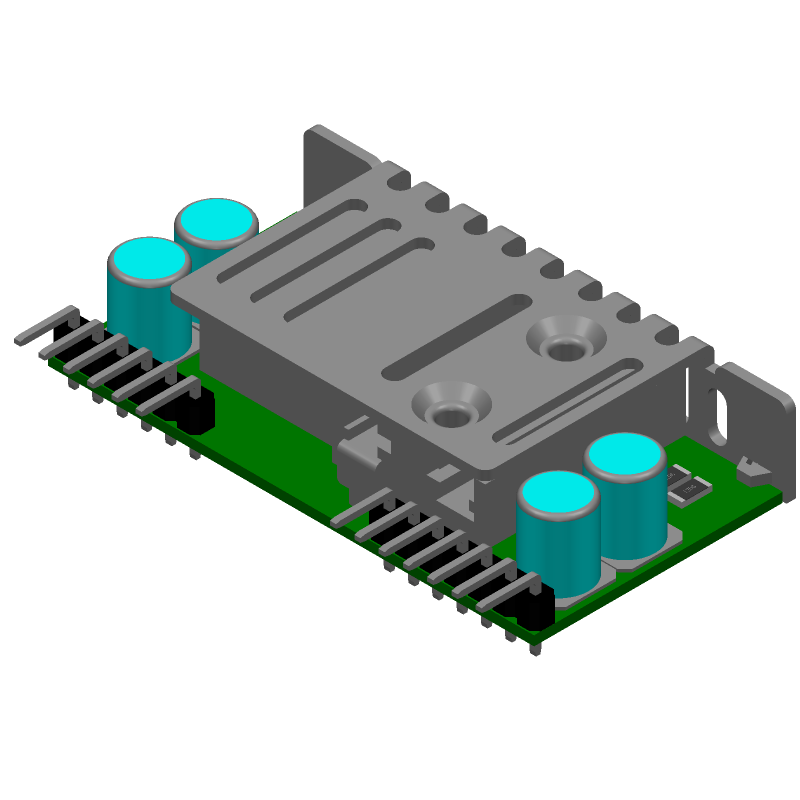

NID100-15 by: Mean Well

DC-DC Regulated Power Supply Module,

Part Details for NID100-15 by Mean Well

Results Overview of NID100-15 by Mean Well

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Environmental Monitoring Internet of Things (IoT) Space Technology Smart Cities Aerospace and Defense Healthcare Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Robotics and Drones

NID100-15 Information

NID100-15 by Mean Well is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for NID100-15

Part # Distributor Description Stock Price Buy
DISTI # 69AH1665
Newark Dc-Dc Converter, 15V, 6.5A Rohs Compliant: Yes |Mean Well NID100-15 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $19.2900
  • 10 $18.3300
  • 25 $17.3600
$17.3600 / $19.2900 Buy Now
DISTI # 1866-NID100-15-ND
DigiKey DC DC CONVERTER 15V 98W Min Qty: 1 Lead time: 12 Weeks Container: Box 210
In Stock
  • 1 $18.4900
  • 5 $17.8060
  • 10 $17.5180
$17.5180 / $18.4900 Buy Now
DISTI # NID100-15
Avnet Americas Module DC-DC 1-OUT 15V 6.5A 97.5W Through Hole 13-Pin SIP - Boxed Product (Development Kits) (Alt: NID100-15) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Box 0
  • 1 $15.3115
  • 10 $15.0806
  • 30 $13.8249
  • 50 $12.8528
  • 100 $11.9048
$11.9048 / $15.3115 Buy Now
DISTI # 709-NID100-15
Mouser Electronics Non-Isolated DC/DC Converters 97.5W 24Vin 15Vout Non-Iso Reg SIP RoHS: Compliant 92
  • 1 $18.4900
  • 5 $17.6600
  • 10 $17.2900
  • 50 $17.2800
  • 100 $17.2000
  • 280 $16.3300
$16.3300 / $18.4900 Buy Now
DISTI # 72094255
RS DC-DC Converter, O/P +15V@6.5A, NID100 Series Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 1 $21.9600
  • 2 $20.8600
  • 4 $19.7600
$19.7600 / $21.9600 RFQ
Onlinecomponents.com 100W DC-DC Non-isolation Open frame PCB mount converter - Input 20-53VDC - Output 15VDC at 6.5A - SIP package - Remote ON/OFF RoHS: Compliant 331 Factory Stock
  • 1 $14.3600
  • 10 $13.6400
  • 20 $12.9600
  • 50 $12.3100
$12.3100 / $14.3600 Buy Now
DISTI # NID100-15
TME Converter: DC/DC, 97.5W, Uin: 20÷53VDC, Uout: 15VDC, Iout: 6.5A, SIP Min Qty: 1 0
  • 1 $21.9000
  • 5 $19.0400
  • 10 $16.5600
  • 20 $14.4000
$14.4000 / $21.9000 RFQ
DISTI # 000000000005945435
Sager Non-Isolated DC/DC Converters 97.5W 24Vin 15Vout Non-Iso Reg SIP Min Qty: 1 0
  • 1 $16.0000
  • 5 $14.2000
  • 10 $12.7800
  • 20 $11.4500
$11.4500 / $16.0000 Buy Now
Master Electronics 100W DC-DC Non-isolation Open frame PCB mount converter - Input 20-53VDC - Output 15VDC at 6.5A - SIP package - Remote ON/OFF RoHS: Compliant 331 Factory Stock
  • 1 $14.3600
  • 10 $13.6400
  • 20 $12.9600
  • 50 $12.3100
$12.3100 / $14.3600 Buy Now

Part Details for NID100-15

NID100-15 Part Data Attributes

Parametric Data
NID100-15 Mean Well
Buy Now Datasheet
Compare Parts:
NID100-15 Mean Well DC-DC Regulated Power Supply Module,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MEAN WELL ENTERPRISES CO LTD
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 19 Weeks, 3 Days
Date Of Intro 2020-10-15
Samacsys Manufacturer Mean Well
Additional Feature 48V INPUT ALSO AVAILABLE
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Approvals CE, EN, EAC, UKCA
Efficiency (Main Output) 97%
Input Voltage-Max 53 V
Input Voltage-Min 20 V
Input Voltage-Nom 24 V
JESD-30 Code R-XSIP-T13
Length 50.8 mm
Line Regulation-Max 0.5%
Load Regulation-Max 0.5%
Number of Functions 1
Number of Outputs 1
Number of Terminals 13
Operating Temperature-Max 85 °C
Operating Temperature-Min -30 °C
Output Current-Max 6.5 A
Output Voltage-Max 15.3 V
Output Voltage-Min 14.7 V
Output Voltage-Nom 15 V
Package Body Material UNSPECIFIED
Package Code SIP
Package Equivalence Code SIP13,.16
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Protections OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT
Ripple Voltage (Main Out) 0.053025 Vrms
Seated Height-Max 12 mm
Surface Mount NO
Technology HYBRID
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 97.5 W
Trim/Adjustable Output YES
Width 27.5 mm

NID100-15 Frequently Asked Questions (FAQ)

  • The NID100-15 can operate up to 5000 meters (16404 ft) above sea level without derating.

  • Yes, the NID100-15 can be used in a redundant configuration, but it requires an external ORing diode or a redundancy module to ensure proper operation.

  • The NID100-15 can withstand a surge of up to 300% of the rated input voltage for 5 seconds, and up to 200% for 1 minute.

  • The NID100-15 can operate in temperatures up to 70°C (158°F) with a derating of 2.5% per degree above 50°C (122°F).

  • The MTBF of the NID100-15 is approximately 550,000 hours at 25°C (77°F) and 50% load, calculated according to MIL-HDBK-217F.
