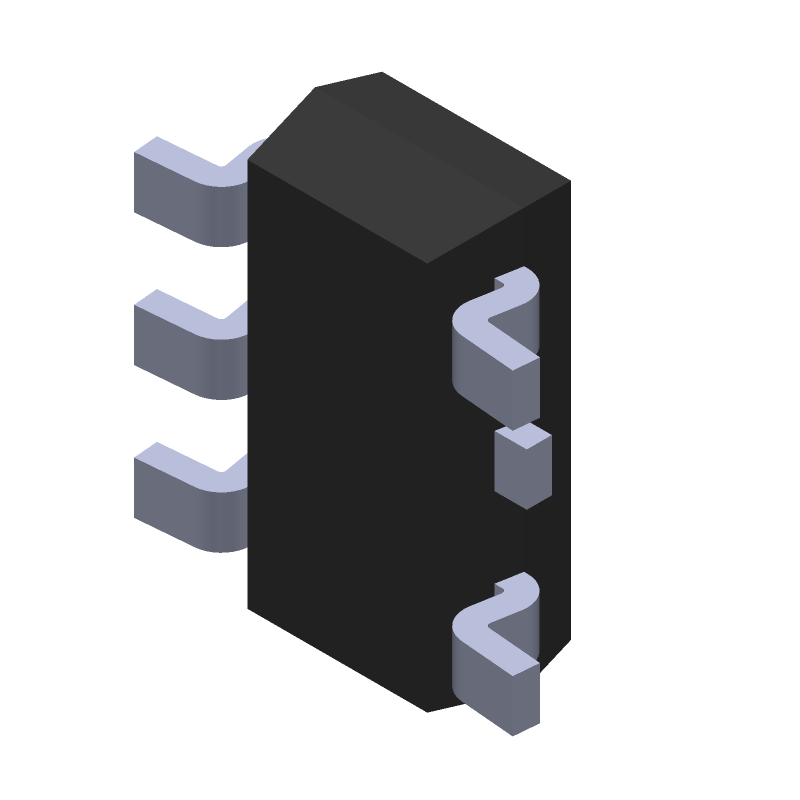

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NCV8730ASN500T1G by onsemi
Results Overview of NCV8730ASN500T1G by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NCV8730ASN500T1G Information
NCV8730ASN500T1G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCV8730ASN500T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
91AH8222
|
Newark | Ncv8730 Tsop-5 5V0/ Reel |Onsemi NCV8730ASN500T1G RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 606 |
|
$0.3610 | Buy Now |
|
DISTI #
488-NCV8730ASN500T1GCT-ND
|
DigiKey | IC REG LINEAR 5V 150MA 5-TSOP Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8773 In Stock |
|
$0.3926 / $1.7200 | Buy Now |
|
DISTI #
91AH8222
|
Avnet Americas | LDO Regulator Positive 5V 150mA Automotive 5-Pin TSOP T/R - Bulk (Alt: 91AH8222) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks, 3 Days Container: Bulk | 606 Partner Stock |
|
$0.4320 / $0.5710 | Buy Now |
|
DISTI #
NCV8730ASN500T1G
|
Avnet Americas | LDO Regulator Positive 5V 150mA Automotive 5-Pin TSOP T/R - Tape and Reel (Alt: NCV8730ASN500T1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.3404 / $0.3928 | Buy Now |
|
DISTI #
863-NCV8730ASN500T1G
|
Mouser Electronics | LDO Voltage Regulators NCV8730 TSOP-5 5V0 RoHS: Compliant | 21467 |
|
$0.3970 / $1.1600 | Buy Now |
|
DISTI #
V72:2272_24512492
|
Arrow Electronics | LDO Regulator Pos 5V 0.15A 5-Pin TSOP T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2246 Container: Cut Strips | Americas - 592 |
|
$0.3929 / $0.6659 | Buy Now |
|
|
Onlinecomponents.com | LDO Regulator, 150 mA, 38 V, 1 µA IQ, with PG 5.0V, TSOP5 RoHS: Compliant |
3000 In Stock |
|
$0.3718 / $0.4020 | Buy Now |
|
DISTI #
86014400
|
Verical | LDO Regulator Pos 5V 0.15A 5-Pin TSOP T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 579 Package Multiple: 1 Date Code: 2201 | Americas - 28000 |
|
$0.6486 | Buy Now |
|
DISTI #
83629602
|
Verical | LDO Regulator Pos 5V 0.15A 5-Pin TSOP T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2430 | Americas - 3000 |
|
$0.4833 / $0.5226 | Buy Now |
|
DISTI #
87893306
|
Verical | LDO Regulator Pos 5V 0.15A 5-Pin TSOP T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 73 Package Multiple: 1 Date Code: 2246 | Americas - 2169 |
|
$0.4180 / $1.0600 | Buy Now |
Part Details for NCV8730ASN500T1G
NCV8730ASN500T1G CAD Models
NCV8730ASN500T1G Part Data Attributes
|
|
NCV8730ASN500T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCV8730ASN500T1G
onsemi
LDO Regulator, 150 mA, 38 V, 1 µA IQ, with PG 5.0V, TSOP5, TSOP-5 / SOT-23-5, 3000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSOP-5 / SOT-23-5 | |
| Manufacturer Package Code | 483 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 22 Weeks, 3 Days | |
| Date Of Intro | 2020-02-24 | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.48 V | |
| Dropout Voltage1-Nom | 0.29 V | |
| Input Voltage Absolute-Max | 40 V | |
| Input Voltage-Max | 38 V | |
| Input Voltage-Min | 6 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max | 0.01% | |
| Load Regulation-Max | 0.02% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 5.1 V | |
| Output Voltage1-Min | 4.95 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 1.5 mm |
NCV8730ASN500T1G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the NCV8730ASN500T1G is -40°C to 150°C.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the VOUT and GND pins.
-
The recommended input capacitor value for the NCV8730ASN500T1G is 10uF to 22uF, with a voltage rating of 25V or higher.
-
The output current capability of the NCV8730ASN500T1G can be calculated using the formula: IOUT = (VIN - VOUT) / RDS(ON). Where RDS(ON) is the on-state resistance of the internal MOSFET.
-
The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it is pulled low, the regulator is disabled.
