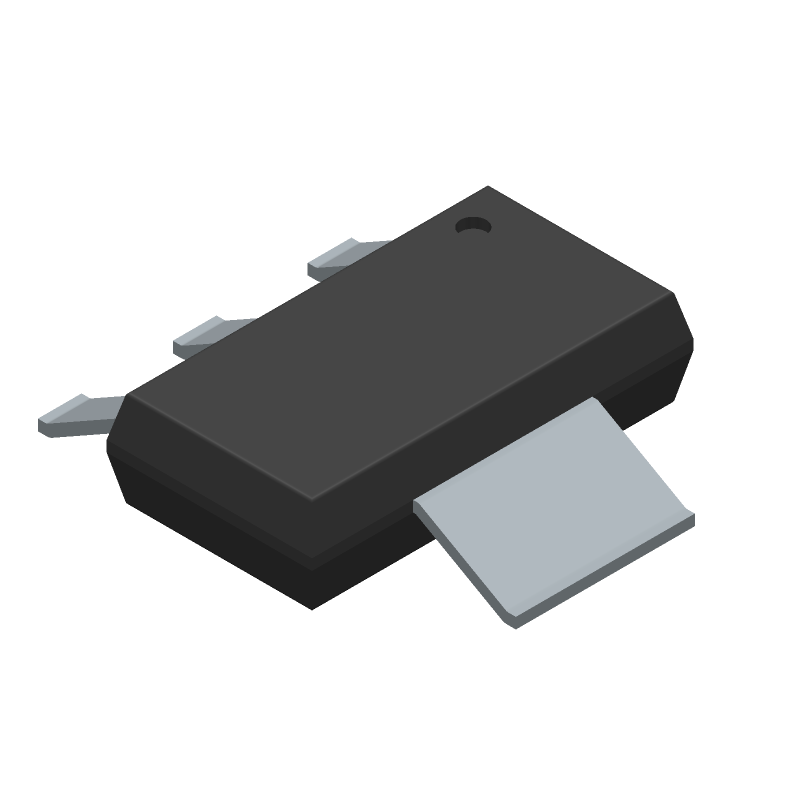

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NCV8664ST50T3G by onsemi
Results Overview of NCV8664ST50T3G by onsemi
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
NCV8664ST50T3G Information
NCV8664ST50T3G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCV8664ST50T3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC1399
|
Newark | Ldo, Aec-Q100, Fixed, 5V, 0.15A, Sot-223, Output Type:Fixed, Input Voltage Min:4.5V, Input Voltage Max:45V, Fixed Output Voltage Nom.:5V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:150Ma, Dropoutrohs Compliant: Yes |Onsemi NCV8664ST50T3G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 315 |
|
$0.5770 | Buy Now |
|
DISTI #
27M2642
|
Newark | Ldo Voltage Regulator, 5V, 150Ma, Sot-223-3, Full Reel, Output Type:Fixed, Input Voltage Min:4.5V, Input Voltage Max:45V, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output Rohs Compliant: Yes |Onsemi NCV8664ST50T3G RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.6300 | Buy Now |
|
DISTI #
NCV8664ST50T3GOSCT-ND
|
DigiKey | IC REG LINEAR 5V 150MA SOT-223 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5765 In Stock |
|
$0.6451 / $1.3800 | Buy Now |
|
DISTI #
NCV8664ST50T3G
|
Avnet Americas | Fixed LDO Voltage Regulator, 4.5V to 45V In, 265mV Dropout, 5V/150mA Out, SOT-223-3 - Tape and Reel (Alt: NCV8664ST50T3G) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.5539 / $0.6186 | Buy Now |
|
DISTI #
863-NCV8664ST50T3G
|
Mouser Electronics | LDO Voltage Regulators ANA ULTRA LOW IQ LDO RoHS: Compliant | 23385 |
|
$0.6180 / $1.3800 | Buy Now |
|
DISTI #
V36:1790_07290241
|
Arrow Electronics | LDO Regulator Pos 5V 0.15A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks Date Code: 2416 | Americas - 20000 |
|
$0.5783 / $0.6631 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.5690 / $0.6610 | Buy Now |
|
DISTI #
82746313
|
Verical | LDO Regulator Pos 5V 0.15A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2416 | Americas - 20000 |
|
$0.5783 / $0.6631 | Buy Now |
|
|
Bristol Electronics | 2806 |
|
RFQ | ||
|
|
Bristol Electronics | 20 |
|
RFQ |
Part Details for NCV8664ST50T3G
NCV8664ST50T3G CAD Models
NCV8664ST50T3G Part Data Attributes
|
|
NCV8664ST50T3G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCV8664ST50T3G
onsemi
LDO Regulator, 150 mA, 45 V, 21 µA IQ 5.0 V, SOT-223 (TO-261) 4 LEAD, 4000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-223 (TO-261) 4 LEAD | |
| Pin Count | 4 | |
| Manufacturer Package Code | 0.0318 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage1-Nom | 0.315 V | |
| Input Voltage Absolute-Max | 45 V | |
| Input Voltage-Max | 45 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | R-PSSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.025% | |
| Load Regulation-Max | 0.035% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 5.1 V | |
| Output Voltage1-Min | 4.9 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.5 mm |
NCV8664ST50T3G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the NCV8664ST50T3G is -40°C to 150°C.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the VOUT and GND pins.
-
The recommended input capacitor value for the NCV8664ST50T3G is 10uF to 22uF, with a voltage rating of 25V or higher.
-
The output current capability of the NCV8664ST50T3G can be calculated using the formula: IOUT = (VIN - VOUT) / RDS(ON). Where RDS(ON) is the on-state resistance of the internal MOSFET.
-
The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it is pulled low, the regulator is disabled.
