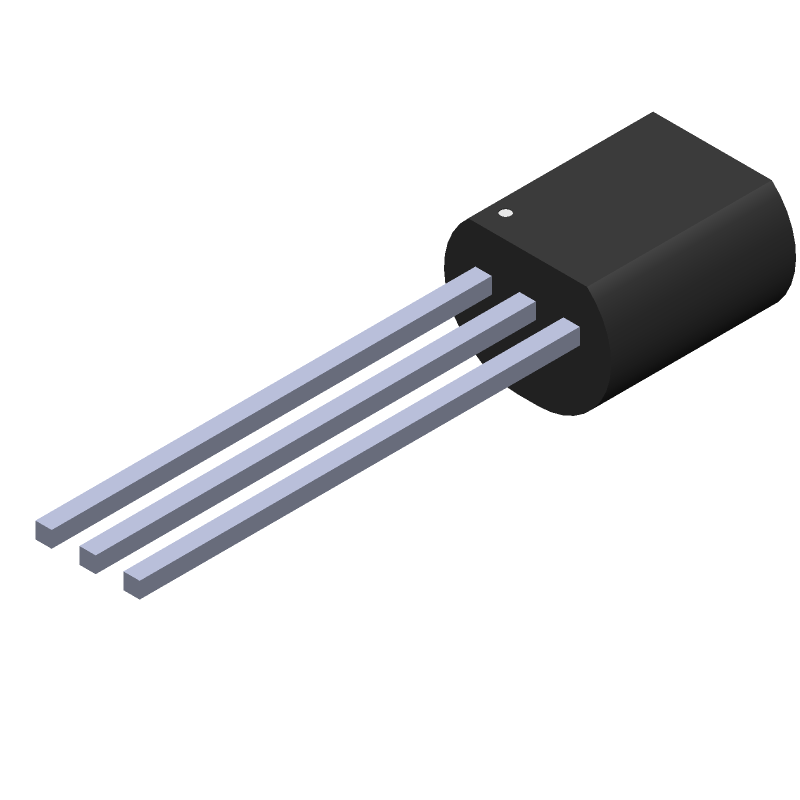

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NCV78L05ABPRPG by onsemi
Results Overview of NCV78L05ABPRPG by onsemi
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NCV78L05ABPRPG Information
NCV78L05ABPRPG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCV78L05ABPRPG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57M9849
|
Newark | Ic, volt Regulator, fixed,+5V, bipolar, sip,3Pin, plastic |Onsemi NCV78L05ABPRPG RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1220 / $0.1550 | Buy Now |
|
DISTI #
488-NCV78L05ABPRPGCT-ND
|
DigiKey | IC REG LINEAR 5V 100MA TO92 Min Qty: 1 Lead time: 9 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
1858 In Stock |
|
$0.1165 / $0.7400 | Buy Now |
|
DISTI #
NCV78L05ABPRPG
|
Avnet Americas | Linear Voltage Regulator, Fixed, Positive Output, 6.7 V to 30 V, 5 V, 100 mA, 3 Pins, TO-92 - Ammo Pack (Alt: NCV78L05ABPRPG) RoHS: Compliant Min Qty: 10000 Package Multiple: 2000 Lead time: 9 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.1121 / $0.1145 | Buy Now |
|
DISTI #
863-NCV78L05ABPRPG
|
Mouser Electronics | Linear Voltage Regulators ANA POS VREG 5V 100mA RoHS: Compliant | 1473 |
|
$0.1240 / $0.7400 | Buy Now |
|
|
Onlinecomponents.com | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V, TJ = -40°C to +125°C RoHS: Compliant | 0 |
|
$0.1133 / $0.1391 | Buy Now |
|
|
Rochester Electronics | MC78L - Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive RoHS: Compliant Status: Active Min Qty: 1 | 22000 |
|
$0.0979 / $0.1579 | Buy Now |
|
DISTI #
NCV78L05ABPRPG
|
Avnet Silica | Linear Voltage Regulator Fixed Positive Output 67 V to 30 V 5 V 100 mA 3 Pins TO92 (Alt: NCV78L05ABPRPG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NCV78L05ABPRPG
|
EBV Elektronik | Linear Voltage Regulator Fixed Positive Output 67 V to 30 V 5 V 100 mA 3 Pins TO92 (Alt: NCV78L05ABPRPG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 399 |
|
RFQ |
Part Details for NCV78L05ABPRPG
NCV78L05ABPRPG CAD Models
NCV78L05ABPRPG Part Data Attributes
|
|
NCV78L05ABPRPG
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCV78L05ABPRPG
onsemi
Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-FNFLD, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-92 (TO-226) 5.33mm Body Height | |
| Pin Count | 3 | |
| Manufacturer Package Code | 29-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage Absolute-Max | 30 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.2 V | |
| Output Voltage1-Min | 4.8 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Packing Method | AMMO PACK | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Screening Level | AEC-Q100 | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Voltage Tolerance-Max | 4% |
NCV78L05ABPRPG Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the NCV78L05ABPRPG is 35V, although it's recommended to keep it below 30V for reliable operation.
-
To ensure stability, make sure to use a minimum output capacitance of 10uF with an ESR (Equivalent Series Resistance) of less than 5 ohms, and a minimum input capacitance of 1uF with an ESR of less than 10 ohms.
-
The maximum output current that the NCV78L05ABPRPG can deliver is 150mA, although it's recommended to keep it below 100mA for reliable operation.
-
The NCV78L05ABPRPG has built-in short-circuit protection, which limits the output current to a safe value during a short-circuit event, preventing damage to the device.
-
The operating temperature range of the NCV78L05ABPRPG is -40°C to 125°C, although it's recommended to keep it below 85°C for reliable operation.
