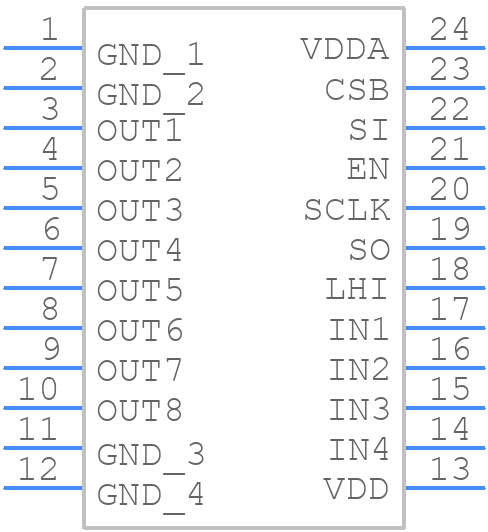

Part Symbol
-

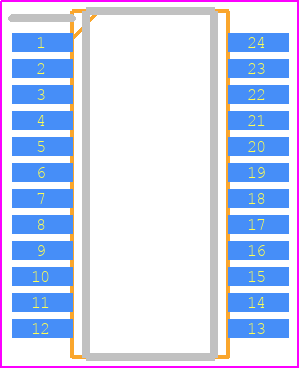

Footprint
-

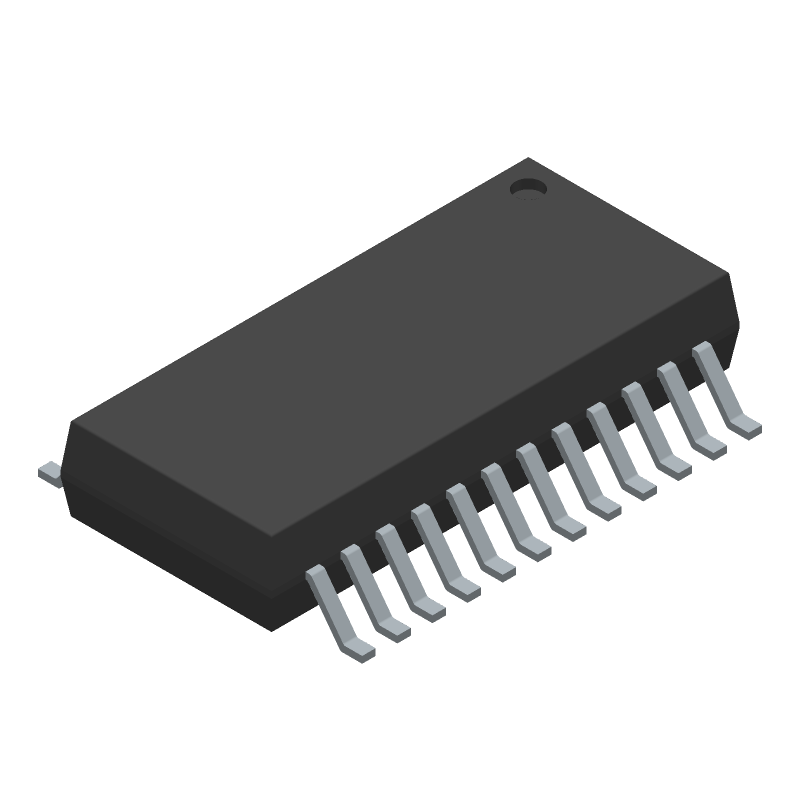

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NCV7240DPR2G by onsemi
Results Overview of NCV7240DPR2G by onsemi
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
NCV7240DPR2G Information
NCV7240DPR2G by onsemi is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for NCV7240DPR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC6165
|
Newark | Relay Driver, Aec-Q100, 8-Ch, Ssop-24, Output Current:600Ma, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Ssop, No. Of Pins:24Pins, Operating Temperature Min:-40°C, Operating Temperature Max:150°C Rohs Compliant: Yes |Onsemi NCV7240DPR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
|
Quest Components | INTERFACE CIRCUIT, BIPOLAR, PDSO24 | 64 |
|
$0.5400 / $0.9000 | Buy Now |
|
|
NexGen Digital | 2440 |
|
RFQ | ||
|
DISTI #
NCV7240DPR2G
|
Avnet Silica | MOSFET DRVR 06A 8OUT Lo Side 24Pin SSOP TR (Alt: NCV7240DPR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NCV7240DPR2G
|
EBV Elektronik | MOSFET DRVR 06A 8OUT Lo Side 24Pin SSOP TR (Alt: NCV7240DPR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Interface ICs | 477 |
|
RFQ |
Part Details for NCV7240DPR2G
NCV7240DPR2G CAD Models
NCV7240DPR2G Part Data Attributes
|
|
NCV7240DPR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCV7240DPR2G
onsemi
8 Channel Low-Side Relay Driver, SSOP24 NB, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | SSOP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | 565AL | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | IT ALSO OPERATES AT 5V | |
| Driver Number of Bits | 8 | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Output Current-Max | 0.6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP24,.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
NCV7240DPR2G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the NCV7240DPR2G is -40°C to 125°C.
-
To ensure proper power-up, the device requires a power-on reset (POR) circuit to ensure that the internal voltage regulators are properly enabled and the device is in a known state.
-
For optimal performance, it is recommended to follow a star-topology layout, with the device at the center, and to use short, direct traces for power and ground connections.
-
The NCV7240DPR2G has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage to the device.
-
It is recommended to use 1-10uF decoupling capacitors, with a voltage rating of 6.3V or higher, placed as close as possible to the device's power pins.
