NCS2333DMR2G by: onsemi

Precision Operational Amplifier, Low Power, Zero-Drift, 30 µV Offset Low Power, Zero-Drift Operational Amplifier with 10 µV Offset, Micro8, 4000-REEL

Part Details for NCS2333DMR2G by onsemi

Results Overview of NCS2333DMR2G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

NCS2333DMR2G Information

NCS2333DMR2G by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for NCS2333DMR2G

Part # Distributor Description Stock Price Buy
DISTI # 31AC0680
Newark Opamp, 270Khz, -40 To 125Deg, No. Of Channels:2Channels, Gain Bandwidth Product:270Khz, Supply Voltage Range:1.8V To 5.5V, Ic Case/Package:Micro, No. Of Pins:8Pins, Amplifier Type:Zero Drift, Input Offset Voltage:6Μv Rohs Compliant: Yes |Onsemi NCS2333DMR2G RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 2,500 $0.3640
  • 10,000 $0.3530
$0.3530 / $0.3640 Buy Now
DISTI # NCS2333DMR2G
Avnet Americas OP Amp Dual Zero Drift R-R I/O 5.5V 8-Pin Micro T/R - Tape and Reel (Alt: NCS2333DMR2G) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days Container: Reel 12000
8000 Factory Stock
  • 4,000 $0.3662
  • 8,000 $0.3566
  • 16,000 $0.3519
  • 24,000 $0.3474
$0.3474 / $0.3662 Buy Now
DISTI # 863-NCS2333DMR2G
Mouser Electronics Operational Amplifiers - Op Amps DUAL PRECISION OPAMP RoHS: Compliant 5306
  • 1 $0.8300
  • 10 $0.5920
  • 25 $0.5330
  • 100 $0.4680
  • 250 $0.4370
  • 4,000 $0.4100
  • 8,000 $0.3510
$0.3510 / $0.8300 Buy Now
Onlinecomponents.com IC OPAMP ZER-DRIFT 2CIRC 8MSOP / Zero-Drift Amplifier 2 Circuit Rail-to-Rail 8-MSOP RoHS: Compliant 0
  • 1,000 $0.3662
  • 4,000 $0.3430
  • 8,000 $0.3379
  • 12,000 $0.3328
  • 16,000 $0.3278
  • 28,000 $0.3229
$0.3229 / $0.3662 Buy Now
DISTI # 86015010
Verical Op Amp Dual Chopper Amplifier R-R I/O 5.5V 8-Pin Micro T/R RoHS: Compliant Min Qty: 463 Package Multiple: 1 Date Code: 2101 Americas - 195000
  • 463 $0.8101
  • 515 $0.7291
  • 1,000 $0.6724
  • 10,000 $0.5995
  • 100,000 $0.5023
$0.5023 / $0.8101 Buy Now
DISTI # 86014498
Verical Op Amp Dual Chopper Amplifier R-R I/O 5.5V 8-Pin Micro T/R RoHS: Compliant Min Qty: 463 Package Multiple: 1 Date Code: 2201 Americas - 24000
  • 463 $0.8101
  • 515 $0.7291
  • 1,000 $0.6724
  • 10,000 $0.5995
  • 100,000 $0.5023
$0.5023 / $0.8101 Buy Now
DISTI # 89089915
Verical Op Amp Dual Chopper Amplifier R-R I/O 5.5V 8-Pin Micro T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Americas - 8000
  • 4,000 $0.3409
$0.3409 Buy Now
Rochester Electronics NCS2333 - Precision Operational Amplifier, Low Power, Zero-Drift RoHS: Compliant Status: Active Min Qty: 1 219000
  • 100 $0.6481
  • 500 $0.5833
  • 1,000 $0.5379
  • 10,000 $0.4796
  • 100,000 $0.4018
$0.4018 / $0.6481 Buy Now
DISTI # NCS2333DMR2G
Avnet Silica OP Amp Dual Zero Drift RR IO 55V 8Pin Micro TR (Alt: NCS2333DMR2G) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days Silica - 4000
Buy Now
DISTI # NCS2333DMR2G
EBV Elektronik OP Amp Dual Zero Drift RR IO 55V 8Pin Micro TR (Alt: NCS2333DMR2G) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now

Part Details for NCS2333DMR2G

NCS2333DMR2G CAD Models

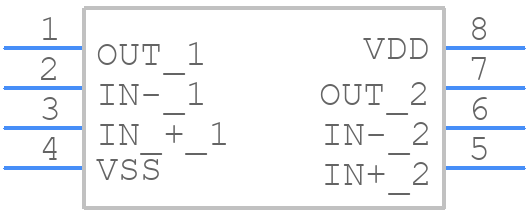

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

NCS2333DMR2G Part Data Attributes

Parametric Data
NCS2333DMR2G onsemi
Buy Now Datasheet
Compare Parts:
NCS2333DMR2G onsemi Precision Operational Amplifier, Low Power, Zero-Drift, 30 µV Offset Low Power, Zero-Drift Operational Amplifier with 10 µV Offset, Micro8, 4000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code Micro8
Manufacturer Package Code 846A-02
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 9 Weeks
Samacsys Manufacturer onsemi
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0004 µA
Common-mode Reject Ratio-Nom 118 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.0008 µA
Input Offset Voltage-Max 20 µV
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Low-Bias YES
Low-Offset YES
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.20
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Seated Height-Max 1.1 mm
Slew Rate-Nom 0.1 V/us
Supply Current-Max 0.035 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 255
Voltage Gain-Min 199526.23
Wideband NO
Width 3 mm
