NCP551SN50T1G Information
NCP551SN50T1G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCP551SN50T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61M7959
|
Newark | Ldo, Fixed, 5V, 0.15A, -40 To 85Deg C, Output Type:Fixed, Input Voltage Min:-, Input Voltage Max:12V, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output, Ic Mounting:Surface Mount Rohs Compliant: Yes |Onsemi NCP551SN50T1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3535 |
|
$0.2330 / $0.5800 | Buy Now |
|
DISTI #
84AC2278
|
Newark | Ana 5.0V Low Drop Out Reg Rohs Compliant: Yes |Onsemi NCP551SN50T1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2010 / $0.2110 | Buy Now |
|
DISTI #
45J1930
|
Newark | Ldo Voltage Regulator, 5V, 150Ma, Tsop-5, Full Reel, Output Type:Fixed, Input Voltage Min:-, Input Voltage Max:12V, No. Of Outputs:1Outputs, Output Voltage - Nom:5V, Output Voltage Min:-, Output Voltage Max:-, Ic Case/Package:Tsop Rohs Compliant: Yes |Onsemi NCP551SN50T1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1930 / $0.2060 | Buy Now |
|
DISTI #
NCP551SN50T1GOSCT-ND
|
DigiKey | IC REG LINEAR 5V 150MA 5-TSOP Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8385 In Stock |
|
$0.1948 / $1.0600 | Buy Now |
|
DISTI #
863-NCP551SN50T1G
|
Mouser Electronics | LDO Voltage Regulators 5.0V 150mA CMOS w/Enable RoHS: Compliant | 16396 |
|
$0.1750 / $0.9900 | Buy Now |
|
|
Future Electronics | NCP551 Series 150 mA 5 V Fixed Output CMOS LDO Voltage Regulator- TSOP-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks Container: Reel | 54000Reel |
|
$0.0955 / $0.1020 | Buy Now |
|
|
Future Electronics | NCP551 Series 150 mA 5 V Fixed Output CMOS LDO Voltage Regulator- TSOP-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks Container: Reel | 3000Reel |
|
$0.0955 / $0.1020 | Buy Now |
|
|
Future Electronics | NCP551 Series 150 mA 5 V Fixed Output CMOS LDO Voltage Regulator- TSOP-5 RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$0.0955 / $0.1020 | Buy Now |
|
|
Onlinecomponents.com | LDO Regulator, 150 mA, Ultra-Low Dropout, Ultra-Low Iq Vout: 5.0 V RoHS: Compliant |
6000 In Stock |
|
$0.1610 / $0.1830 | Buy Now |
|
DISTI #
87599741
|
Verical | LDO Regulator Pos 5V 0.15A 5-Pin TSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2451 | Americas - 6000 |
|
$0.2157 / $0.2379 | Buy Now |
Part Details for NCP551SN50T1G

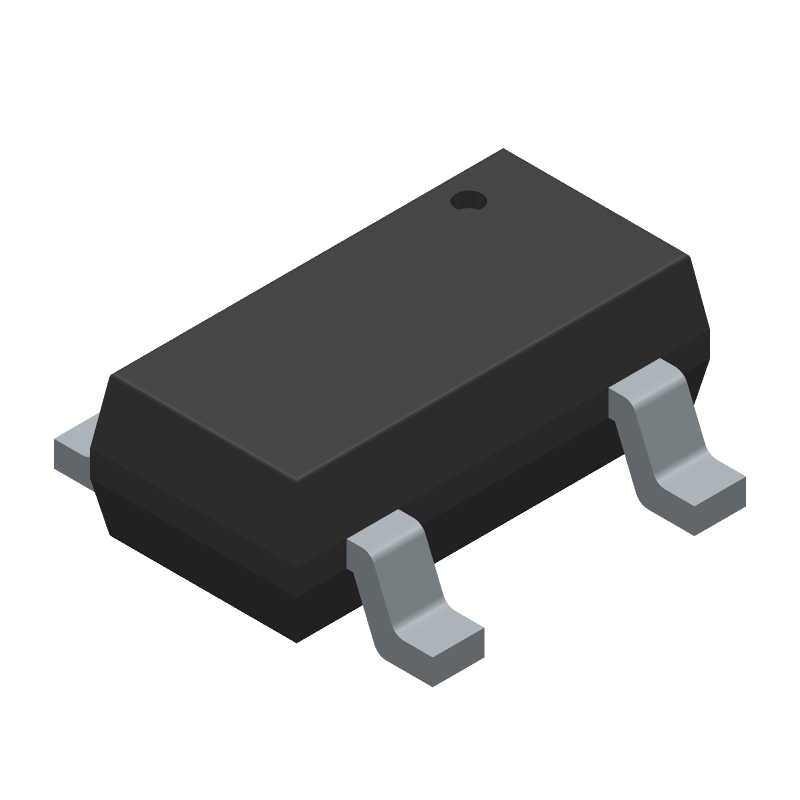

NCP551SN50T1G CAD Models
NCP551SN50T1G Part Data Attributes
|
|
NCP551SN50T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCP551SN50T1G
onsemi
LDO Regulator, 150 mA, Ultra-Low Dropout, Ultra-Low Iq Vout: 5.0 V, TSOP-5, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSOP-5 | |
| Pin Count | 5 | |
| Manufacturer Package Code | 483 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.15 V | |
| Dropout Voltage1-Nom | 0.04 V | |
| Input Voltage Absolute-Max | 12 V | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 6 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max | 0.03% | |
| Load Regulation-Max | 0.065% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 5.15 V | |
| Output Voltage1-Min | 4.85 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3% | |
| Width | 1.5 mm |
