NCP1252DDR2G Information
NCP1252DDR2G by onsemi is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCP1252DDR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45Y1349
|
Newark | Pwm Controller, Current Mode, For Forward And Flyback Applications/ Reel |Onsemi NCP1252DDR2G RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4050 / $0.5310 | Buy Now |
|
DISTI #
NCP1252DDR2GOSCT-ND
|
DigiKey | IC OFFLINE SWITCH MULT TOP 8SOIC Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7181 In Stock |
|
$0.3644 / $1.6300 | Buy Now |
|
DISTI #
NCP1252DDR2G
|
Avnet Americas | PWM Controller, Peak Current Mode Control, 9 V to 28 V, 500 kHz, 8 Pins, SOIC-N - Tape and Reel (Alt: NCP1252DDR2G) RoHS: Compliant Min Qty: 1924 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 30000 Partner Stock |
|
$0.3358 / $0.3428 | Buy Now |
|
DISTI #
NCP1252DDR2G
|
Avnet Americas | PWM Controller, Peak Current Mode Control, 9 V to 28 V, 500 kHz, 8 Pins, SOIC-N - Tape and Reel (Alt: NCP1252DDR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days Container: Reel | 30000 Factory Stock |
|
$0.3358 / $0.3737 | Buy Now |
|
DISTI #
863-NCP1252DDR2G
|
Mouser Electronics | Switching Controllers CM PWM CONTROLLER RoHS: Compliant | 58595 |
|
$0.3780 / $1.6200 | Buy Now |
|
DISTI #
V72:2272_07277241
|
Arrow Electronics | AC to DC Switching Converter Flyback/Forward 10V 500kHz T/R 8-Pin SOIC N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 2245 Container: Cut Strips | Americas - 877 |
|
$0.3738 / $0.4978 | Buy Now |
|
|
Onlinecomponents.com | PWM Controller, Current Mode, for Forward and Flyback Applications RoHS: Compliant | 0 |
|
$0.3473 / $0.3786 | Buy Now |
|
DISTI #
87637290
|
Verical | AC to DC Switching Converter Flyback/Forward 10V 500kHz T/R 8-Pin SOIC N RoHS: Compliant Min Qty: 608 Package Multiple: 1 Date Code: 2301 | Americas - 27500 |
|
$0.6171 | Buy Now |
|
DISTI #
65067066
|
Verical | AC to DC Switching Converter Flyback/Forward 10V 500kHz T/R 8-Pin SOIC N RoHS: Compliant Min Qty: 16 Package Multiple: 1 Date Code: 2245 | Americas - 877 |
|
$0.3738 / $0.4408 | Buy Now |
|
|
Bristol Electronics | 1729 |
|
RFQ |
Part Details for NCP1252DDR2G

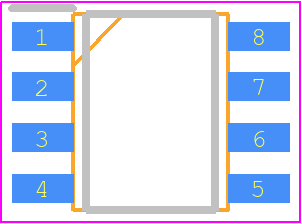

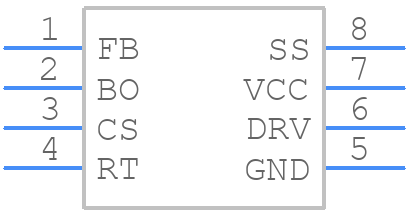

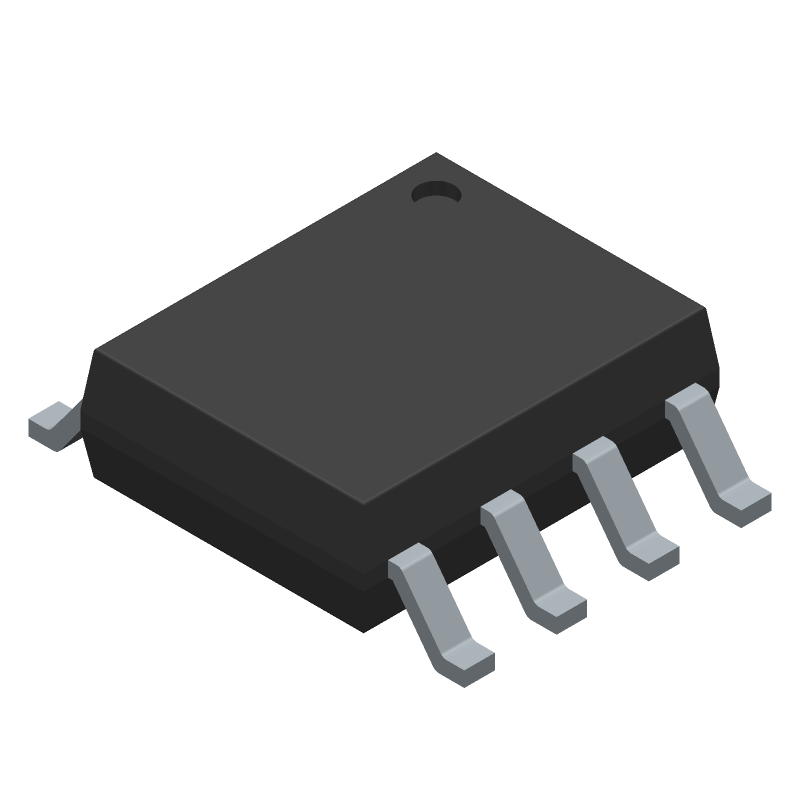

NCP1252DDR2G CAD Models
NCP1252DDR2G Part Data Attributes
|
|
NCP1252DDR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCP1252DDR2G
onsemi
PWM Controller, Current Mode, for Forward and Flyback Applications, SOIC-8, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 28 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.55 mm | |
| Surface Mount | YES | |
| Switcher Configuration | SINGLE | |
| Switching Frequency-Max | 500 kHz | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
