NCP1207BDR2G Information
NCP1207BDR2G by onsemi is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCP1207BDR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57M9790
|
Newark | Ic, smps Controller, current-Mode, sop,7Pin, plastic |Onsemi NCP1207BDR2G RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
70340563
|
RS | NCP1207BDR2G, PWM Current Mode Controller, 500 mA, 60 kHz, 20 V, 7-Pin SOIC Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.9800 / $1.1500 | RFQ |
|
|
Bristol Electronics | 154 |
|
RFQ | ||
|
DISTI #
NCP1207BDR2G
|
Avnet Silica | Current Mode PWM Controller 500mA 7Pin SOIC TR (Alt: NCP1207BDR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NCP1207BDR2G
|
EBV Elektronik | Current Mode PWM Controller 500mA 7Pin SOIC TR (Alt: NCP1207BDR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Other Function Semiconductors | 783 |
|
RFQ | |
|
|
Win Source Electronics | IC CTRLR PWM CM OVP OCP HV 7SOIC | 8730 |
|
$16.2663 / $24.3993 | Buy Now |
Part Details for NCP1207BDR2G

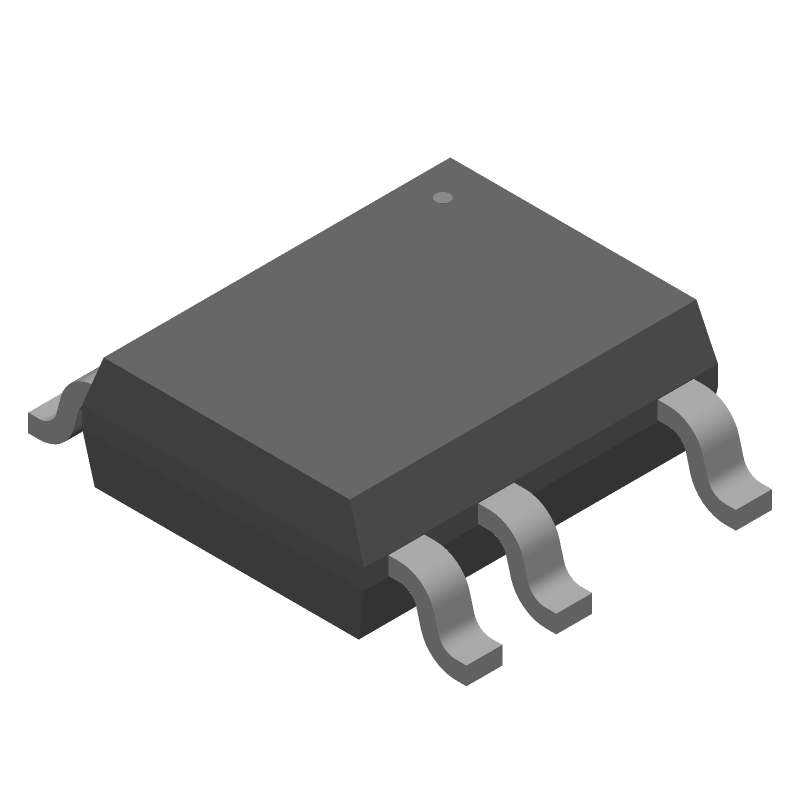

NCP1207BDR2G CAD Models
NCP1207BDR2G Part Data Attributes
|
|
NCP1207BDR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCP1207BDR2G
onsemi
PWM Controller, Free Running Quasi-Resonant Current Mode, SOIC 7 CASE OUTLINE, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC 7 CASE OUTLINE | |
| Pin Count | 7 | |
| Manufacturer Package Code | 751U | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | ALSO HAS RESONANT CONTROL TECHNIQUE | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Min | 10.6 V | |
| Input Voltage-Nom | 11 V | |
| JESD-30 Code | R-PDSO-G7 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP7/8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Switcher Configuration | SINGLE | |
| Switching Frequency-Max | 200 kHz | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for NCP1207BDR2G
This table gives cross-reference parts and alternative options found for NCP1207BDR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NCP1207BDR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NCP1219AD100R2G | onsemi | $0.8815 | PWM Controller with Adjustable Skip Level and External Latch Input, SOIC 7 CASE OUTLINE, 2500-REEL | NCP1207BDR2G vs NCP1219AD100R2G |
| NCP1219AD65R2G | onsemi | $1.6377 | PWM Controller with Adjustable Skip Level and External Latch Input, SOIC 7 CASE OUTLINE, 2500-REEL | NCP1207BDR2G vs NCP1219AD65R2G |
| NCP1271D65R2G | onsemi | $0.9553 | PWM Controller, Soft-Skip™ Standby, with Adjustable Skip Level and External Latch, SOIC 7 CASE OUTLINE, 2500-REEL | NCP1207BDR2G vs NCP1271D65R2G |
| NCP1288BD65R2G | onsemi | Check for Price | Controller, Fixed Frequency, Current Mode, for Flyback Converters, SOIC 7 CASE OUTLINE, 2500-REEL | NCP1207BDR2G vs NCP1288BD65R2G |
| NCP1271P100G | onsemi | Check for Price | PWM Controller, Soft-Skip™ Standby, with Adjustable Skip Level and External Latch, PDIP-7 (PDIP-8 LESS PIN 7), 50-TUBE | NCP1207BDR2G vs NCP1271P100G |
| NCP1271D100R2G | onsemi | $0.6077 | PWM Controller, Soft-Skip™ Standby, with Adjustable Skip Level and External Latch, SOIC 7 CASE OUTLINE, 2500-REEL | NCP1207BDR2G vs NCP1271D100R2G |
| NCP1219BD65R2G | onsemi | $1.5466 | PWM Controller with Adjustable Skip Level and External Latch Input, SOIC 7 CASE OUTLINE, 2500-REEL | NCP1207BDR2G vs NCP1219BD65R2G |
| MC44608P75G | onsemi | Check for Price | SWITCHING CONTROLLER, 82kHz SWITCHING FREQ-MAX, PDIP8, LEAD FREE, PLASTIC, DIP-8 | NCP1207BDR2G vs MC44608P75G |
| NCP1218AD65R2G | onsemi | Check for Price | PWM Controller with Adjustable Skip Level and External Latch Input, SOIC 7 CASE OUTLINE, 2500-REEL | NCP1207BDR2G vs NCP1218AD65R2G |
NCP1207BDR2G Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the NCP1207BDR2G is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
-
To ensure the NCP1207BDR2G operates within its SOA, follow the recommended operating conditions, keep the junction temperature below 150°C, and avoid exceeding the maximum current and voltage ratings.
-
The EN pin is used to enable or disable the regulator. When EN is high, the regulator is enabled, and when EN is low, the regulator is disabled and enters a low-power shutdown mode.
-
Choose an output capacitor with a value between 10uF and 22uF, and an ESR (equivalent series resistance) of 1 ohm or less. The capacitor should also be rated for the output voltage and have a low impedance at high frequencies.
-
The minimum input capacitance required for the NCP1207BDR2G is 1uF, but it's recommended to use a 4.7uF or 10uF capacitor to ensure stability and optimal performance.
