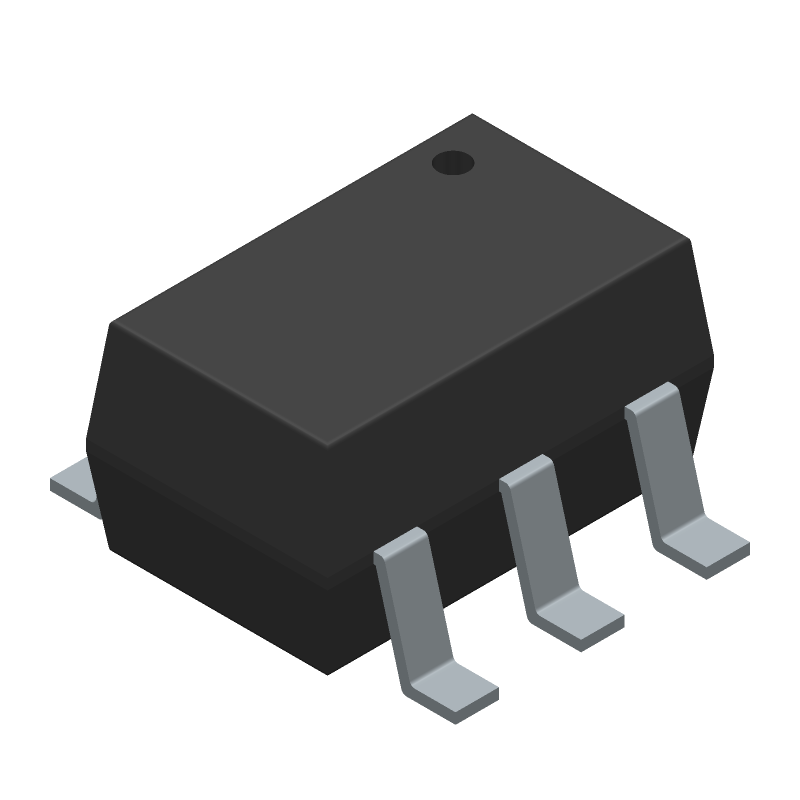

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NC7SZ175P6X by onsemi
Results Overview of NC7SZ175P6X by onsemi
- Distributor Offerings: (35 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NC7SZ175P6X Information
NC7SZ175P6X by onsemi is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for NC7SZ175P6X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC2624
|
Newark | Single D-Type F/F Rohs Compliant: Yes |Onsemi NC7SZ175P6X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 69000 |
|
$0.0320 / $0.0550 | Buy Now |
|
DISTI #
31Y3171
|
Newark | Flip-Flop, D-Type, 175Mhz, Sc-70-6, Logic Family/Base Number:Nc7S175, Flip-Flop Type:D, Propagation Delay:2.6Ns, Frequency:175Mhz, Output Current:32Ma, Logic Case Style:Sc-70, No. Of Pins:6Pins, Trigger Type:Positive Edge, Ic Rohs Compliant: Yes |Onsemi NC7SZ175P6X RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 14940 |
|
$0.0830 / $0.3170 | Buy Now |
|
DISTI #
29X6804
|
Newark | Logic Family/Base Number:Nc7S175, Flip-Flop Type:D, Propagation Delay:2.6Ns, Frequency:175Mhz, Output Current:32Ma, Ic Case/Package:Sc-70, No. Of Pins:6Pins, Trigger Type:Positive Edge, Ic Output Type:Non Inverted Rohs Compliant: Yes |Onsemi NC7SZ175P6X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0320 / $0.0550 | Buy Now |
|
DISTI #
2832-NC7SZ175P6XTR-ND
|
DigiKey | IC FF D-TYPE SINGLE 1BIT SC-88 Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR) MARKETPLACE PRODUCT |
90000 In Stock |
|
$0.2100 | Buy Now |
|
DISTI #
NC7SZ175P6XCT-ND
|
DigiKey | IC FF D-TYPE SINGLE 1BIT SC-88 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0302 / $0.1000 | Buy Now |
|
DISTI #
NC7SZ175P6X
|
Avnet Americas | D-Type Positive-Edge 1Input 6-Pin SC-70 T/R - Tape and Reel (Alt: NC7SZ175P6X) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel | 69000 |
|
$0.0203 | Buy Now |
|
DISTI #
NC7SZ175P6X
|
Avnet Americas | D-Type Positive-Edge 1Input 6-Pin SC-70 T/R - Tape and Reel (Alt: NC7SZ175P6X) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
NC7SZ175P6X
|
Avnet Americas | D-Type Positive-Edge 1Input 6-Pin SC-70 T/R - Tape and Reel (Alt: NC7SZ175P6X) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0220 / $0.0234 | Buy Now |
|
DISTI #
NC7SZ175P6X
|
Avnet Americas | D-Type Positive-Edge 1Input 6-Pin SC-70 T/R - Tape and Reel (Alt: NC7SZ175P6X) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0228 / $0.0256 | Buy Now |
|
DISTI #
NC7SZ175P6X
|
Avnet Americas | D-Type Positive-Edge 1Input 6-Pin SC-70 T/R - Tape and Reel (Alt: NC7SZ175P6X) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ |
Part Details for NC7SZ175P6X
NC7SZ175P6X CAD Models
NC7SZ175P6X Part Data Attributes
|
|
NC7SZ175P6X
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7SZ175P6X
onsemi
TinyLogic UHS D-Type Flip-Flop with Asynchronous Clear, SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88-6 / SC-70-6 / SOT-363-6 | |
| Manufacturer Package Code | 419B-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | D FLIP-FLOP | |
| Max Frequency@Nom-Sup | 150000000 Hz | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 6.2 ns | |
| Propagation Delay (tpd) | 16.5 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 1.25 mm | |
| fmax-Min | 175 MHz |
Alternate Parts for NC7SZ175P6X
This table gives cross-reference parts and alternative options found for NC7SZ175P6X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7SZ175P6X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NC7SZ175P6 | onsemi | Check for Price | TinyLogic UHS D-Type Flip-Flop with Asynchronous Clear, 250-REEL | NC7SZ175P6X vs NC7SZ175P6 |
| SN74LVC1G175DCKT | Texas Instruments | $0.3754 | Single D-Type Flip-Flop with Asynchronous Clear 6-SC70 -40 to 125 | NC7SZ175P6X vs SN74LVC1G175DCKT |
| NC7SZ175P6X_NL | Fairchild Semiconductor Corporation | Check for Price | D Flip-Flop, LVC/LCX/Z Series, 1-Func, Positive Edge Triggered, 1-Bit, True Output, CMOS, PDSO6, 1.25 MM, EIAJ, SC-88, SC-70, 6 PIN | NC7SZ175P6X vs NC7SZ175P6X_NL |
| 74LVC1G175DCKRE4 | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO6, GREEN, PLASTIC, SC-70, 6 PIN | NC7SZ175P6X vs 74LVC1G175DCKRE4 |
| V62/06633-01XE | Texas Instruments | Check for Price | Enhanced Product Single D-Type Flip-Flop With Asynchronous Clear 6-SC70 -55 to 125 | NC7SZ175P6X vs V62/06633-01XE |
| 74LVC1G175DCKTG4 | Texas Instruments | Check for Price | Single D-Type Flip-Flop with Asynchronous Clear 6-SC70 -40 to 125 | NC7SZ175P6X vs 74LVC1G175DCKTG4 |
| NC7SZ175P6X | Fairchild Semiconductor Corporation | Check for Price | D Flip-Flop, LVC/LCX/Z Series, 1-Func, Positive Edge Triggered, 1-Bit, True Output, CMOS, PDSO6, 1.25 MM, EIAJ, SC-88, SC-70, 6 PIN | NC7SZ175P6X vs NC7SZ175P6X |
| NC7SZ175P6_NL | Fairchild Semiconductor Corporation | Check for Price | D Flip-Flop, LVC/LCX/Z Series, 1-Func, Positive Edge Triggered, 1-Bit, True Output, CMOS, PDSO6, 1.25 MM, EIAJ, SC-88, SC-70, 6 PIN | NC7SZ175P6X vs NC7SZ175P6_NL |
NC7SZ175P6X Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the NC7SZ175P6X is 1.65V to 5.5V.
-
To properly power down the NC7SZ175P6X, ensure that the input voltage (VCC) is reduced to 0V and the input signals are held at a valid logic level (either VCC or GND).
-
The maximum frequency of operation for the NC7SZ175P6X is 250 MHz.
-
To prevent damage to the NC7SZ175P6X, ensure that the input signals do not exceed the maximum rating of 7V, and that the input signals are not applied before the power supply voltage (VCC) is established.
-
The typical propagation delay for the NC7SZ175P6X is 3.5 ns at 25°C and 3.3V supply voltage.
