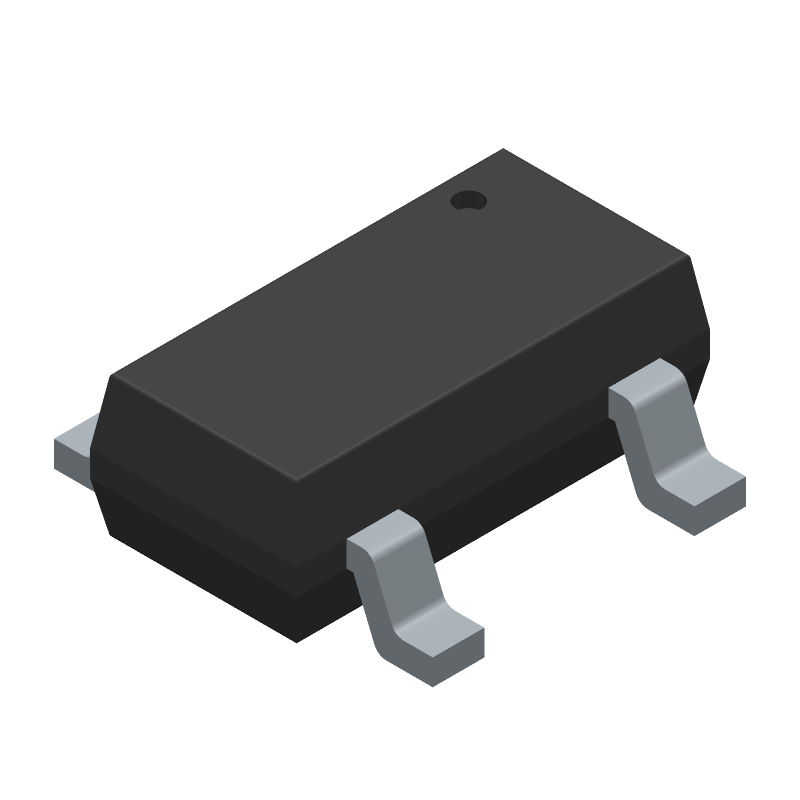

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NC7S32M5X by onsemi
Results Overview of NC7S32M5X by onsemi
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
NC7S32M5X Information
NC7S32M5X by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for NC7S32M5X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC2641
|
Newark | Hs 2-Input Or Gate Rohs Compliant: Yes |Onsemi NC7S32M5X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 36000 |
|
$0.0270 | Buy Now |
|
DISTI #
58M9761
|
Newark | Ic, Nc7S, Smd, Logic Family/Base Number:Nc7S32, Logic Type:Or, Output Current:2.6Ma, No. Of Inputs:2, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:Sot-23, No. Of Pins:5Pins, Logic Ic Family:Nc7S, Logic Ic Base Rohs Compliant: Yes |Onsemi NC7S32M5X RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 12376 |
|
$0.0720 / $0.2850 | Buy Now |
|
DISTI #
NC7S32M5XCT-ND
|
DigiKey | IC GATE OR 1CH 2-INP SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
7904 In Stock |
|
$0.0340 / $0.1100 | Buy Now |
|
DISTI #
512-NC7S32M5X
|
Mouser Electronics | Logic Gates 2-Input OR Gate RoHS: Compliant | 1166 |
|
$0.0360 / $0.1100 | Buy Now |
|
DISTI #
E02:0323_00044599
|
Arrow Electronics | OR Gate 1-Element 2-IN CMOS 5-Pin SC-74A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2508 | Europe - 36000 |
|
$0.0248 / $0.0438 | Buy Now |
|
DISTI #
V72:2272_06303098
|
Arrow Electronics | OR Gate 1-Element 2-IN CMOS 5-Pin SC-74A T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2408 Container: Cut Strips | Americas - 11205 |
|
$0.0351 / $0.1100 | Buy Now |
|
DISTI #
E21:3489_00044599
|
Arrow Electronics | OR Gate 1-Element 2-IN CMOS 5-Pin SC-74A T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2425 | Europe - 445 |
|
$0.0298 | Buy Now |
|
|
Onlinecomponents.com | TinyLogic HS 2-Input OR Gate RoHS: Compliant | 0 |
|
$0.0243 / $0.0291 | Buy Now |
|
DISTI #
76833831
|
Verical | OR Gate 1-Element 2-IN CMOS 5-Pin SC-74A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 36000 |
|
$0.0246 / $0.0430 | Buy Now |
|
DISTI #
88044011
|
Verical | OR Gate 1-Element 2-IN CMOS 5-Pin SC-74A T/R RoHS: Compliant Min Qty: 11765 Package Multiple: 1 Date Code: 2301 | Americas - 12000 |
|
$0.0268 / $0.0319 | Buy Now |
Part Details for NC7S32M5X
NC7S32M5X CAD Models
NC7S32M5X Part Data Attributes
|
|
NC7S32M5X
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7S32M5X
onsemi
TinyLogic HS 2-Input OR Gate, SC-74A-5 3.00x1.50x0.95, 0.95P, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-74A-5 3.00x1.50x0.95, 0.95P | |
| Manufacturer Package Code | 318BQ | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | OR GATE | |
| Max I(ol) | 0.0013 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 125 ns | |
| Propagation Delay (tpd) | 125 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.4 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for NC7S32M5X
This table gives cross-reference parts and alternative options found for NC7S32M5X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7S32M5X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HC1G32GV,125 | Nexperia | $0.0798 | 74HC1G32; 74HCT1G32 - 2-input OR gate@en-us TSOP 5-Pin | NC7S32M5X vs 74HC1G32GV,125 |
| 74AHC1G32GV,125 | Nexperia | $0.0821 | 74AHC1G32; 74AHCT1G32 - 2-input OR gate@en-us TSOP 5-Pin | NC7S32M5X vs 74AHC1G32GV,125 |
| 74AHC1G32GV | Nexperia | Check for Price | OR Gate, AHC/VHC/H/U/V Series, 1-Func, 2-Input, CMOS, PDSO5 | NC7S32M5X vs 74AHC1G32GV |
| NC7S32M5 | onsemi | Check for Price | TinyLogic HS 2-Input OR Gate, 250-REEL | NC7S32M5X vs NC7S32M5 |
| 74AHC1G32GV,125 | NXP Semiconductors | Check for Price | 74AHC(T)1G32 - 2-input OR gate TSOP 5-Pin | NC7S32M5X vs 74AHC1G32GV,125 |
| TC7SH32F(TE12L) | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, 2-INPUT OR GATE, PDSO5, PLASTIC, SSOP-5, Gate | NC7S32M5X vs TC7SH32F(TE12L) |
NC7S32M5X Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the NC7S32M5X is 250 MHz.
-
Yes, the NC7S32M5X is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
-
The propagation delay of the NC7S32M5X is typically around 3.5 ns, but this can vary depending on the operating conditions and load capacitance.
-
Yes, the NC7S32M5X is rated for operation up to 125°C, making it suitable for high-temperature applications.
-
Yes, the NC7S32M5X is available in a lead-free package, making it compliant with RoHS and other environmental regulations.
