MURD620CTG Information
MURD620CTG by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MURD620CTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98H0860
|
Newark | Diode, Ultrafast Rectifier, 6A, 200V, Dpak, Repetitive Peak Reverse Voltage:200V, Average Forward Current:6A, Diode Configuration:Dual Common Cathode, Forward Voltage Max:1.13V, Reverse Recovery Time:35Ns, Forward Surge Current:50A Rohs Compliant: Yes |Onsemi MURD620CTG RoHS: Compliant Min Qty: 525 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
MURD620CTG
|
Avnet Americas | Diode Switching 200V 6A 3-Pin(2+Tab) DPAK Rail - Rail/Tube (Alt: MURD620CTG) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tube | 335 |
|
$0.4598 | Buy Now |
|
|
Bristol Electronics | 137 |
|
RFQ | ||
|
DISTI #
MURD620CTG
|
Avnet Silica | Diode Switching 200V 6A 3Pin2Tab DPAK Rail (Alt: MURD620CTG) RoHS: Compliant Min Qty: 1725 Package Multiple: 75 Lead time: 143 Weeks, 0 Days | Silica - 75 |
|
Buy Now | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 124 |
|
$2.5000 / $3.8500 | Buy Now |
|
|
Cytech Systems Limited | DIODE ARRAY GP 200V 3A DPAK | 7500 |
|
RFQ | |
|
DISTI #
MURD620CTG
|
EBV Elektronik | Diode Switching 200V 6A 3Pin2Tab DPAK Rail (Alt: MURD620CTG) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 1135 |
|
RFQ | |
|
|
Win Source Electronics | DIODE ARRAY GP 200V 3A DPAK | 89210 |
|
$0.1750 / $0.2260 | Buy Now |
Part Details for MURD620CTG

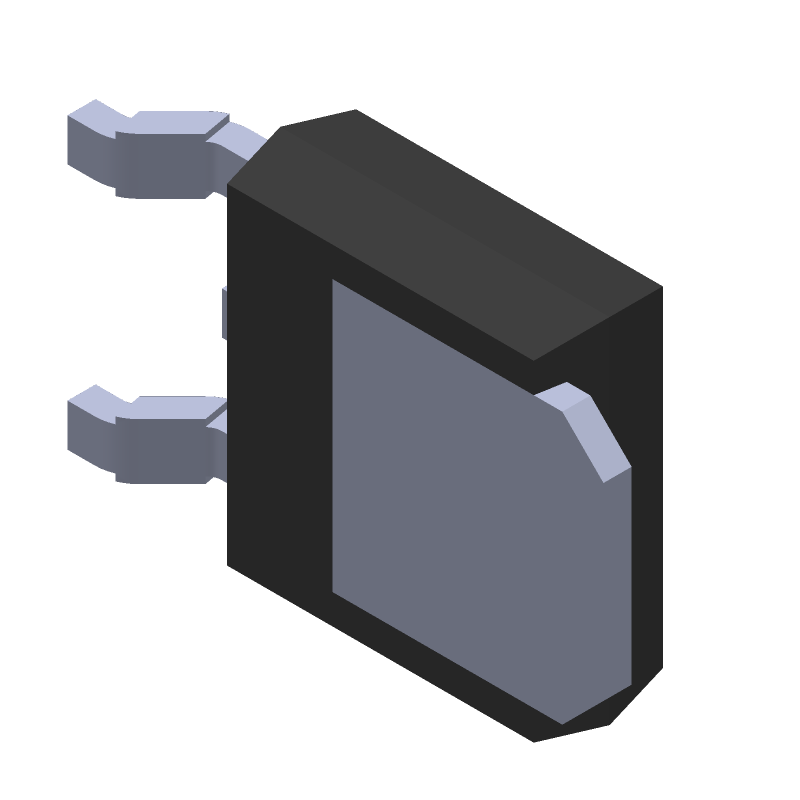

MURD620CTG CAD Models
