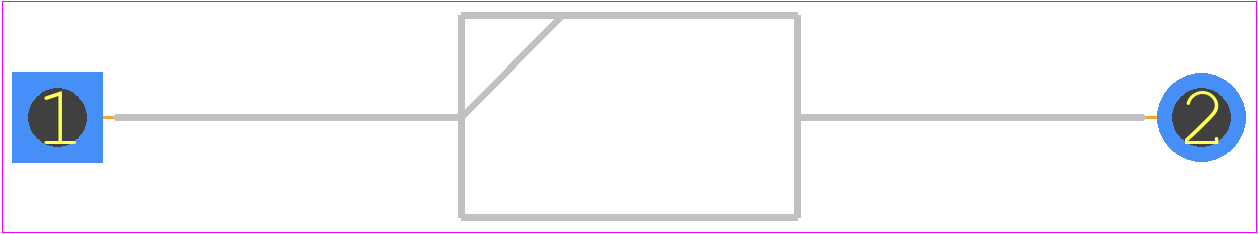

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MUR460GP-TP by Micro Commercial Components
Results Overview of MUR460GP-TP by Micro Commercial Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
MUR460GP-TP Information
MUR460GP-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MUR460GP-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MUR460GP-TP-ND
|
DigiKey | DIODE STANDARD 600V 4A DO201AD Min Qty: 1200 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1551 / $0.2246 | Buy Now |
|
DISTI #
833-MUR460GP-TP
|
Mouser Electronics | Rectifiers 4A SUPER FAST RECOVERY RECTIFIER RoHS: Compliant | 0 |
|
$0.1540 / $0.2160 | Order Now |
|
DISTI #
MUR460GP-TP
|
IBS Electronics | RECTIFIER DIODE 1 PHASE 1 ELEMENT 4A 600V V(RRM) SILICON DO-201AD Min Qty: 3600 Package Multiple: 1 | 0 |
|
$0.1898 / $0.2015 | Buy Now |
|
|
Vyrian | Diodes | 136 |
|
RFQ |
Part Details for MUR460GP-TP
MUR460GP-TP CAD Models
MUR460GP-TP Part Data Attributes
|
|
MUR460GP-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MUR460GP-TP
Micro Commercial Components
Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-201AD | |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Schedule B Code | 8541.10.00.80 | |
| Samacsys Description | Super Fast Recovery Rectifiers | |
| Samacsys Manufacturer | MCC | |
| Samacsys Modified On | 2024-05-17 16:34:44 | |
| Total Weight | 1140.807 | |
| Category CO2 Kg | 8.8 | |
| CO2 | 10039.101600000002 | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| EU RoHS Exemptions | 7(a) | |
| Candidate List Date | 2025-01-21 | |
| SVHC Over MCV | 7439-92-1 | |
| CAS Accounted for Wt | 70 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 7439-92-1 | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Application | EFFICIENCY | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.28 V | |
| JEDEC-95 Code | DO-201AD | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Recovery Time-Max | 0.05 µs | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for MUR460GP-TP
This table gives cross-reference parts and alternative options found for MUR460GP-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MUR460GP-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MUR460G-FG-WS | Willas Electronic Corp | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 | MUR460GP-TP vs MUR460G-FG-WS |
| MUR460GP-TP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 | MUR460GP-TP vs MUR460GP-TP-HF |
| MUR460G-FH-WS | Willas Electronic Corp | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 | MUR460GP-TP vs MUR460G-FH-WS |
| MUR460GP-BP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 | MUR460GP-TP vs MUR460GP-BP-HF |
| MUR460GP-AP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 | MUR460GP-TP vs MUR460GP-AP |
| MUR460GP-AP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 | MUR460GP-TP vs MUR460GP-AP-HF |
MUR460GP-TP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the MUR460GP-TP is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the MUR460GP-TP is suitable for high-frequency applications due to its low capacitance and fast switching times.
-
The maximum allowable voltage for the MUR460GP-TP is 600V, but it's recommended to operate it at a maximum of 80% of the rated voltage to ensure reliability.
-
Yes, the MUR460GP-TP can be used in parallel to increase current handling, but it's essential to ensure that the diodes are matched and the current sharing is balanced to avoid overheating.
-
The storage temperature range for the MUR460GP-TP is -40°C to 125°C, and it's recommended to store the diodes in a dry, cool place to prevent moisture absorption.
