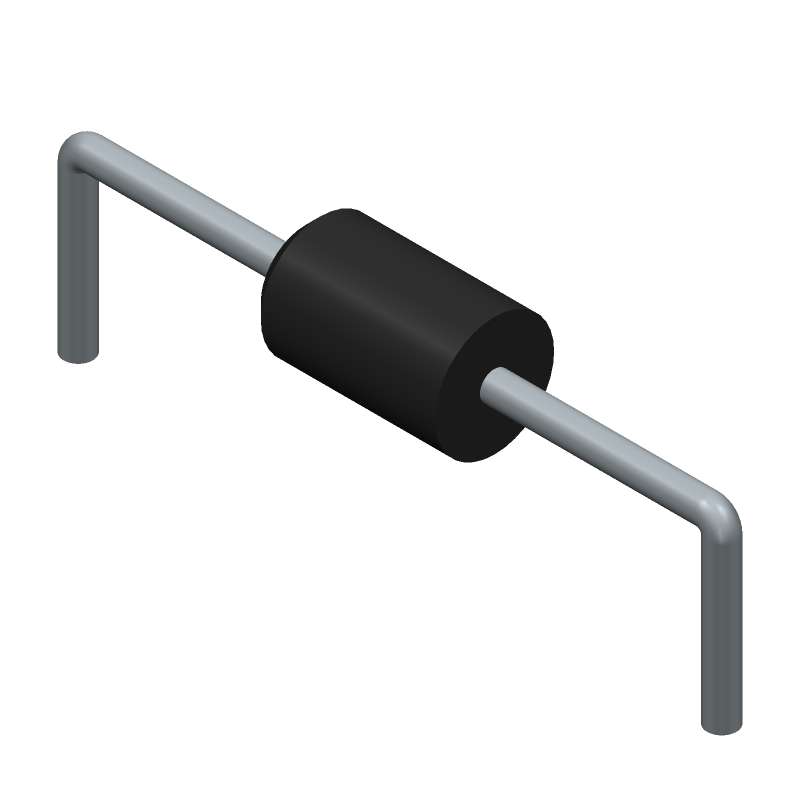

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MUR460G by onsemi
Results Overview of MUR460G by onsemi
- Distributor Offerings: (32 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
MUR460G Information
MUR460G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MUR460G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K1638
|
Newark | Fast Recovery Diode, 4A, 600V Axial, Repetitive Peak Reverse Voltage:600V, Average Forward Current:4A, Diode Configuration:Single, Forward Voltage Max:1.28V, Reverse Recovery Time:50Ns, Forward Surge Current:110A, No. Of Pins:2 Pin Rohs Compliant: Yes |Onsemi MUR460G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 8411 |
|
$0.2350 / $0.3200 | Buy Now |
|
DISTI #
38AH1030
|
Newark | Rec Surm 4A 600V Ultfst Rohs Compliant: Yes |Onsemi MUR460G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2810 / $0.7200 | Buy Now |
|
DISTI #
MUR460GOS-ND
|
DigiKey | DIODE STANDARD 600V 4A AXIAL Min Qty: 1 Lead time: 8 Weeks Container: Bulk |
4719 In Stock |
|
$0.2318 / $0.4400 | Buy Now |
|
DISTI #
MUR460G
|
Avnet Americas | Fast / Ultrafast Diode, 600 V, 4 A, Single, 1.28 V, 50 ns, 150 A - Bulk (Alt: MUR460G) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 8676 |
|
$0.2271 / $0.2479 | Buy Now |
|
DISTI #
42K1638
|
Avnet Americas | Fast / Ultrafast Diode, 600 V, 4 A, Single, 1.28 V, 50 ns, 150 A - Bulk (Alt: 42K1638) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 1 Days Container: Bulk | 8411 Partner Stock |
|
$0.3150 / $0.7160 | Buy Now |
|
DISTI #
863-MUR460G
|
Mouser Electronics | Rectifiers 600V 4A UltraFast RoHS: Compliant | 5320 |
|
$0.2330 / $0.4300 | Buy Now |
|
DISTI #
V36:1790_07318051
|
Arrow Electronics | Diode Switching 600V 4A 2-Pin DO-201AD Bag Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2421 | Americas - 8400 |
|
$0.2238 / $0.4234 | Buy Now |
|
|
Future Electronics | MUR Series 4 A 600 V 25 ns Through Hole SWITCHMODE™ Power Rectifier - CASE 267 RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 8 Weeks Container: Bag | 5000Bag |
|
$0.1950 / $0.2100 | Buy Now |
|
|
Future Electronics | MUR Series 4 A 600 V 25 ns Through Hole SWITCHMODE™ Power Rectifier - CASE 267 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Container: Bag | 2439Bag |
|
$0.1950 / $0.2200 | Buy Now |
|
|
Onlinecomponents.com | Power Rectifier, Ultra-Fast Recovery, Switch-mode, 4 A, 600 V RoHS: Compliant |
3500 In Stock |
|
$0.2140 / $0.2514 | Buy Now |
Part Details for MUR460G
MUR460G CAD Models
MUR460G Part Data Attributes
|
|
MUR460G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MUR460G
onsemi
Power Rectifier, Ultra-Fast Recovery, Switch-mode, 4 A, 600 V, Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia, 500-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia | |
| Pin Count | 2 | |
| Manufacturer Package Code | 267-05 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks, 1 Day | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT | |
| Application | ULTRA FAST RECOVERY POWER | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.05 V | |
| JEDEC-95 Code | DO-201AD | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 110 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Recovery Time-Max | 0.075 µs | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
Alternate Parts for MUR460G
This table gives cross-reference parts and alternative options found for MUR460G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MUR460G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MUR460E | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 | MUR460G vs MUR460E |
MUR460G Frequently Asked Questions (FAQ)
-
The MUR460G can operate safely between -65°C to 175°C, but the recommended operating temperature range is -40°C to 150°C.
-
Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the anode and cathode pins. Avoid overheating or applying excessive force, which can damage the device.
-
Store the MUR460G in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, with a relative humidity of 60% or less.
-
While the MUR460G is suitable for high-frequency applications, its switching speed is limited. For high-frequency switching, consider using a faster diode like the MURS160 or MURS360.
-
Use proper ESD protection measures, such as wearing an anti-static wrist strap, using an anti-static mat, and storing the devices in anti-static packaging. Avoid touching the device pins or handling the device in a way that could generate static electricity.
