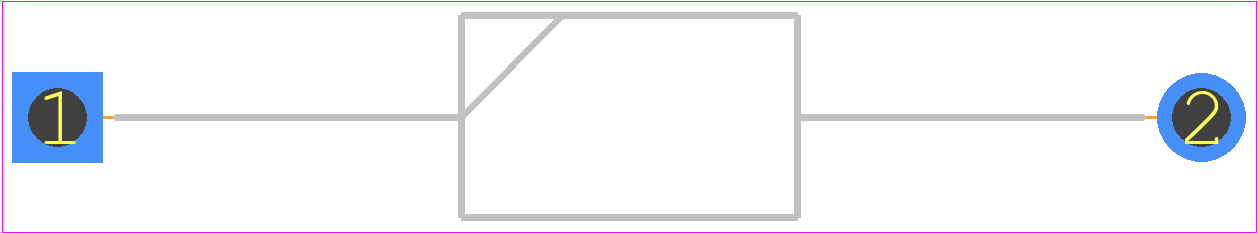

Footprint
-

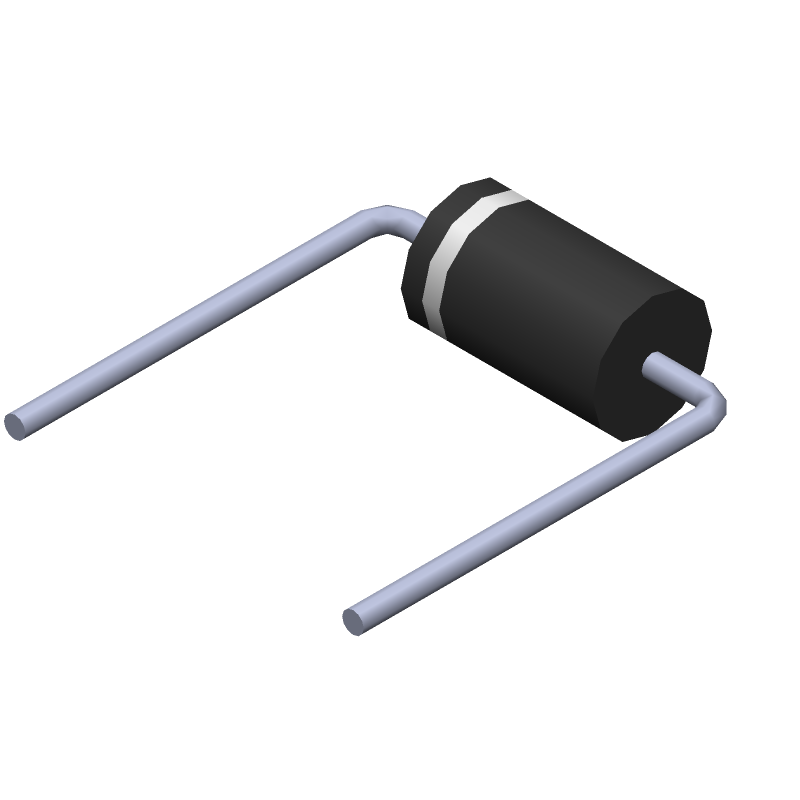

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MUR460 by onsemi
Results Overview of MUR460 by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
MUR460 Information
MUR460 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MUR460
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 50 |
|
RFQ | ||
|
|
Quest Components | 4 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD | 280 |
|
$0.2850 / $0.9500 | Buy Now |
|
|
Quest Components | 4 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD | 144 |
|
$0.7040 / $1.4080 | Buy Now |
|
|
ComSIT USA | SWITCHMODE POWER RECTIFIER Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 32 |
|
$0.7500 / $1.1500 | Buy Now |
Part Details for MUR460
MUR460 CAD Models
MUR460 Part Data Attributes
|
|
MUR460
onsemi
Buy Now
Datasheet
|
Compare Parts:
MUR460
onsemi
Power Rectifier, Ultra-Fast Recovery, Switch-mode, 4 A, 600 V, Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia, 500-BLKBG - Bulk Bag
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia | |
| Package Description | LEAD FREE, PLASTIC, CASE 267-03, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 267-05 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT | |
| Application | ULTRA FAST RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.28 V | |
| JEDEC-95 Code | DO-201AD | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 110 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Recovery Time-Max | 0.075 µs | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
Alternate Parts for MUR460
This table gives cross-reference parts and alternative options found for MUR460. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MUR460, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MUR460E | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 | MUR460 vs MUR460E |
MUR460 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the MUR460 is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
To ensure proper derating, follow the guidelines in the datasheet for temperature derating. For every 10°C above 25°C, reduce the maximum average forward current by 2.5%.
-
Store the MUR460 in a dry, cool place with a relative humidity of 60% or less, and avoid exposing it to temperatures above 30°C or below -10°C.
-
Yes, the MUR460 is suitable for switching power supply applications due to its fast recovery time and low forward voltage drop. However, ensure proper snubber circuit design to minimize voltage spikes.
-
Calculate the power dissipation by multiplying the average forward current by the forward voltage drop, and then multiplying the result by the duty cycle. Use the thermal resistance values in the datasheet to estimate the junction temperature.
