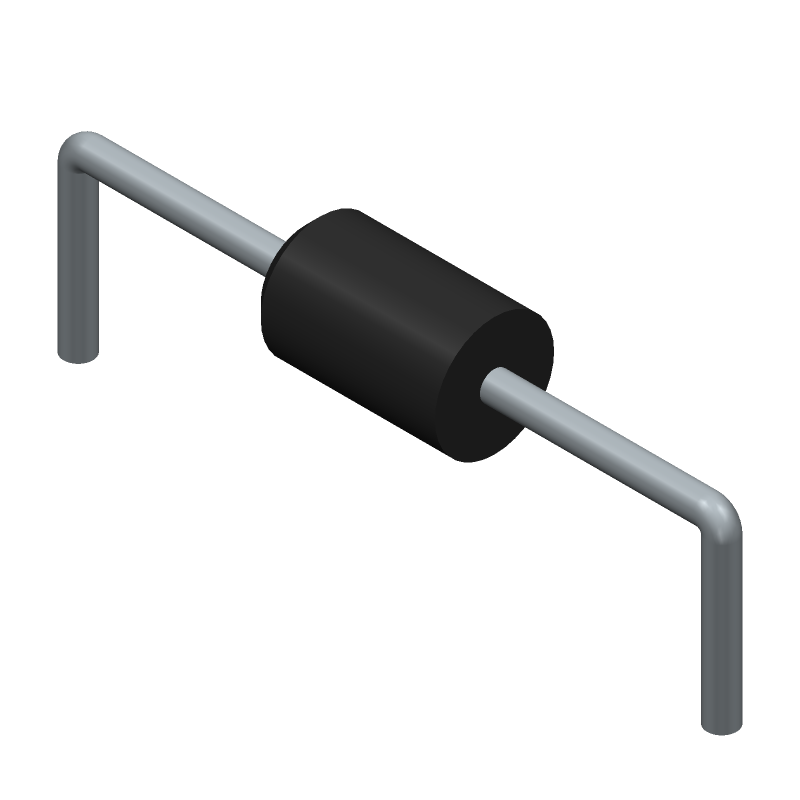

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MUR4100EG by onsemi
Results Overview of MUR4100EG by onsemi
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
MUR4100EG Information
MUR4100EG by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MUR4100EG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81AC9439
|
Newark | Rec Surm 4A 1Kv Ultfst Rohs Compliant: Yes |Onsemi MUR4100EG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 14804 |
|
Buy Now | |
|
DISTI #
42K1627
|
Newark | Rectifier, 1Kv, 4A, Axial Leaded, Repetitive Peak Reverse Voltage:1Kv, Average Forward Current:4A, Diode Configuration:Single, Forward Voltage Max:1.85V, Reverse Recovery Time:100Ns, Forward Surge Current:70A, No. Of Pins:2Pins Rohs Compliant: Yes |Onsemi MUR4100EG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1922 |
|
$0.3330 / $0.4550 | Buy Now |
|
DISTI #
MUR4100EGOS-ND
|
DigiKey | DIODE STANDARD 1000V 4A AXIAL Min Qty: 1 Lead time: 8 Weeks Container: Bulk |
4575 In Stock |
|
$0.3140 / $0.7200 | Buy Now |
|
DISTI #
MUR4100EG
|
Avnet Americas | Standard Recovery Diode, 1 kV, 4 A, Single, 1.85 V, 100 ns, 70 A - Bulk (Alt: MUR4100EG) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 14804 |
|
$0.3264 / $0.3518 | Buy Now |
|
DISTI #
42K1627
|
Avnet Americas | Standard Recovery Diode, 1 kV, 4 A, Single, 1.85 V, 100 ns, 70 A - Bulk (Alt: 42K1627) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 1 Days Container: Bulk | 1922 Partner Stock |
|
$0.4480 / $1.0200 | Buy Now |
|
DISTI #
863-MUR4100EG
|
Mouser Electronics | Rectifiers 1000V 4A UltraFast RoHS: Compliant | 2920 |
|
$0.3140 / $0.7100 | Buy Now |
|
DISTI #
V99:2348_07310678
|
Arrow Electronics | Diode Switching 1KV 4A 2-Pin DO-201AD Box Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2420 | Americas - 2382 |
|
$0.3170 / $0.4306 | Buy Now |
|
|
Onlinecomponents.com | Power Rectifier, Ultra-Fast Recovery, Switch-mode, 4 A, 1000 V RoHS: Compliant | 0 |
|
$0.2977 / $0.3422 | Buy Now |
|
|
Bristol Electronics | 398 |
|
RFQ | ||
|
|
Future Electronics | MUR Series 4 A 1000 V 75 ns Through Hole SWITCHMODE� Power Rectifier - CASE 267 Min Qty: 500 Package Multiple: 500 |
7500 null |
|
$0.2950 / $0.3100 | Buy Now |
Part Details for MUR4100EG
MUR4100EG CAD Models
MUR4100EG Part Data Attributes
|
|
MUR4100EG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MUR4100EG
onsemi
Power Rectifier, Ultra-Fast Recovery, Switch-mode, 4 A, 1000 V, Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia, 500-BLKBX
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia | |
| Package Description | CASE 267-05, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 267-05 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 17 Weeks, 1 Day | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | ULTRA FAST RECOVERY POWER | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.8 V | |
| JEDEC-95 Code | DO-201AD | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 70 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Recovery Time-Max | 0.1 µs | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
