Part Symbol
-
Footprint
-

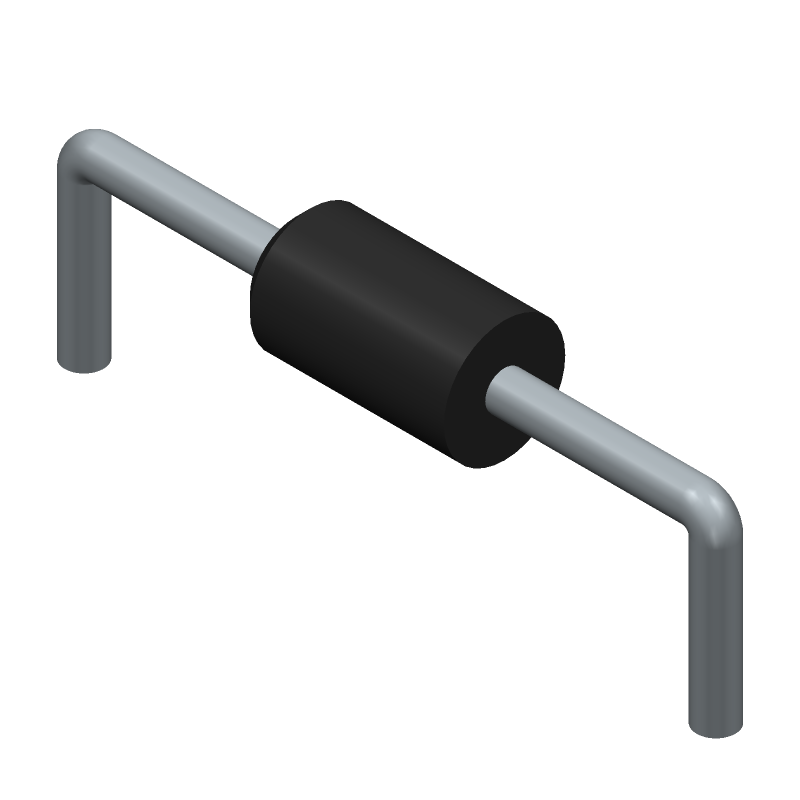

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MUR1100EG by onsemi
Results Overview of MUR1100EG by onsemi
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
MUR1100EG Information
MUR1100EG by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MUR1100EG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K1598
|
Newark | Fast Recovery Diode, 1A, 1Kv, Axial, Repetitive Peak Reverse Voltage:1Kv, Average Forward Current:1A, Diode Configuration:Single, Forward Voltage Max:1.75V, Reverse Recovery Time:75Ns, Forward Surge Current:35A, No. Of Pins:2 Pin Rohs Compliant: Yes |Onsemi MUR1100EG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3758 |
|
$0.3120 / $0.3970 | Buy Now |
|
DISTI #
81AC9435
|
Newark | Rec Surm 1A 1Kv Ultfst Rohs Compliant: Yes |Onsemi MUR1100EG RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2880 / $0.3090 | Buy Now |
|
DISTI #
MUR1100EGOS-ND
|
DigiKey | DIODE STANDARD 1000V 1A AXIAL Min Qty: 1 Lead time: 8 Weeks Container: Bulk |
719 In Stock |
|
$0.2957 / $0.8200 | Buy Now |
|
DISTI #
42K1598
|
Avnet Americas | Fast / Ultrafast Diode, 1 kV, 1 A, Single, 1.75 V, 75 ns, 35 A - Bulk (Alt: 42K1598) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 1 Days Container: Bulk | 3788 Partner Stock |
|
$0.3090 / $0.6650 | Buy Now |
|
DISTI #
MUR1100EG
|
Avnet Americas | Fast / Ultrafast Diode, 1 kV, 1 A, Single, 1.75 V, 75 ns, 35 A - Bulk (Alt: MUR1100EG) RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2818 / $0.3076 | Buy Now |
|
DISTI #
863-MUR1100EG
|
Mouser Electronics | Rectifiers 1000V 1A UltraFast RoHS: Compliant | 18319 |
|
$0.3070 / $0.8000 | Buy Now |
|
DISTI #
V36:1790_07277204
|
Arrow Electronics | Diode Switching 1KV 1A 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2442 | Americas - 6015 |
|
$0.2816 / $0.7797 | Buy Now |
|
DISTI #
E02:0323_00078032
|
Arrow Electronics | Diode Switching 1KV 1A 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2506 | Europe - 2075 |
|
$0.2836 / $0.7242 | Buy Now |
|
|
Future Electronics | MUR Series 1 A 1000 V 100 ns Through Hole SWITCHMODE™ Power Rectifier - CASE 59 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Container: Bag | 3023Bag |
|
$0.2750 / $0.3100 | Buy Now |
|
|
Onlinecomponents.com | Power Rectifier, Ultra-Fast Recovery, Switch-mode, 1 A, 1000 V RoHS: Compliant | 0 |
|
$0.2642 / $0.3260 | Buy Now |
Part Details for MUR1100EG
MUR1100EG CAD Models
MUR1100EG Part Data Attributes
|
|
MUR1100EG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MUR1100EG
onsemi
Power Rectifier, Ultra-Fast Recovery, Switch-mode, 1 A, 1000 V, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 1000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia | |
| Package Description | LEAD FREE, PLASTIC, CASE 59-10, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 59-10 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 17 Weeks, 1 Day | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.7 V | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 35 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Recovery Time-Max | 0.1 µs | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
MUR1100EG Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the MUR1100EG is -55°C to 150°C.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
-
The maximum voltage that can be applied to the MUR1100EG is 1000V, but it's recommended to operate within the specified voltage rating of 800V to ensure reliable operation.
-
Handle the MUR1100EG in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the component's pins or leads to prevent ESD damage.
-
Store the MUR1100EG in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, and the relative humidity should be below 60%.
